Network Setup

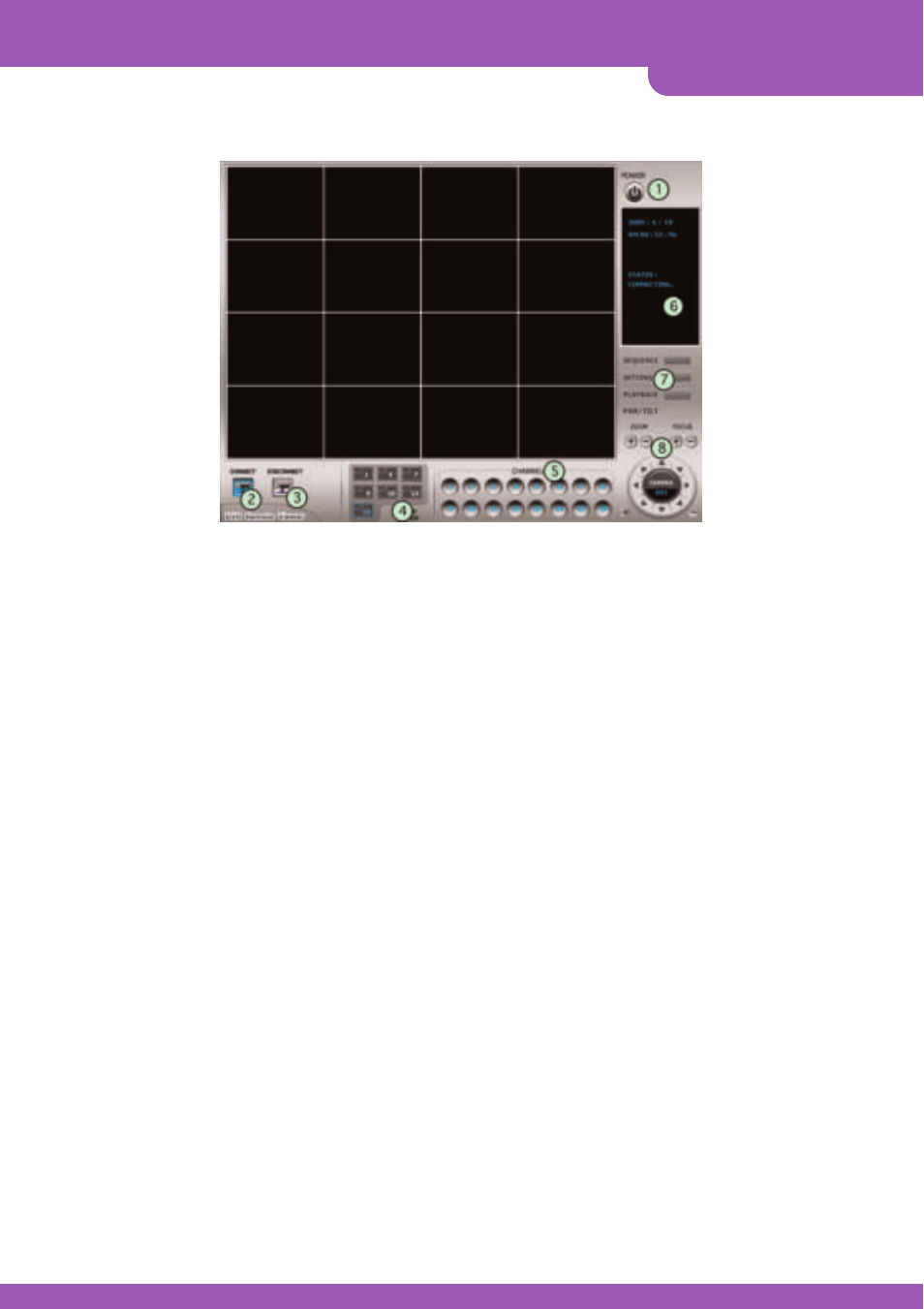

6-2. Free Remote Viewer program
1. Power switch: Press the Power switch to exit the program. Please disconnect the live feed before powering
off the software
2. Connect button: Press the Connect button to view the live images from the DVR. These are the same images
being displayed on the monitor of the DVR, with a delay depending on your internet
connection at both the DVR location and from where you’re currently accessing.
3. Disconnect button: Press this button to disconnect from the DVR unit. Then you may power off the software.
4. Screen Division button: Select how many channels to view simultaneously (single,4-split,9-split, or 16-split).
When you select a view you will see the Channel Numbers highlighted which
determine what channels are currently being viewed.
5. Channel number button: Select the channel that you want to view based on what Screen Division view is
enabled.
6. Status window: Display’s the current time and date based. The date is in the format : Year/Month/Day. You
will also see the status of your connection.
7. Setting, Playback, and Sequence buttons;
a. Setting: Enables the software configuration screen.
b. Playback: Enables the remote playback screen.
c. Sequence: When in single channel view, hitting the sequence button will sequence through all active
channels at a speed specified in the settings menu.
8. PTZ control: You can control a PTZ camera via the software with these controls.
a. First, you must input or configure the specific PTZ protocol into the software in order to communicate with
the PTZ device.
b. When you press any of the controls for the PTZ, please press and hold the button for 1-2 seconds per
instance to compensate for the data transmission rate. If you do not and instead simply click the PTZ
buttons, you may get undesired results (having the requested operation transmitted repeatedly, regardless
of your intention).
c. The plus and minus buttons send the PTZ commands to the corresponding PTZ camera ID.
