Assembly Section 3-13
ASSEMBLY
© 2004 Alamo Group Inc.
ASSEMBL
Y
Turf Flex 08/01

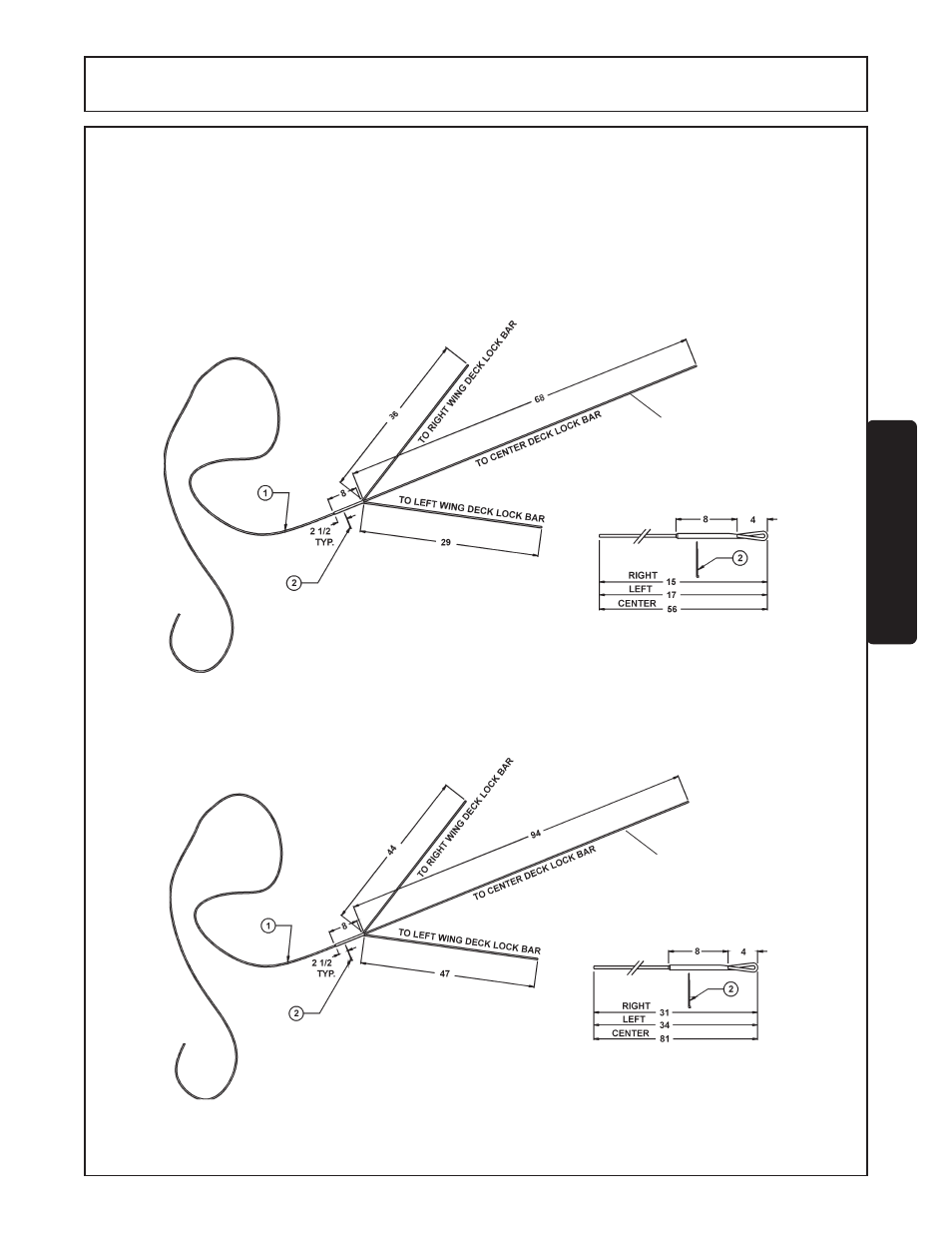

FIGURE 19
NOTE: All lengths are before
forming the loops.
NOTE: FIELD ASSEMBLY (FIGURE 19)- Head Locks
1. Loop ends back through welded link on lock bar and
then inside of braid by forming a hole 16" from end.
2. Adjust lengths as shown to give 8" overlap and 4"
loop.
3. Adjust to give diminsion shown.
4. Secure loops by running a plastic ties thru rope
braids (2) to prevent slipping.
NOTE: All lengths are before
forming the loops.
13 1/2 - 16 1/2 Models Only
11' Model Only
