English
19
02
Connections

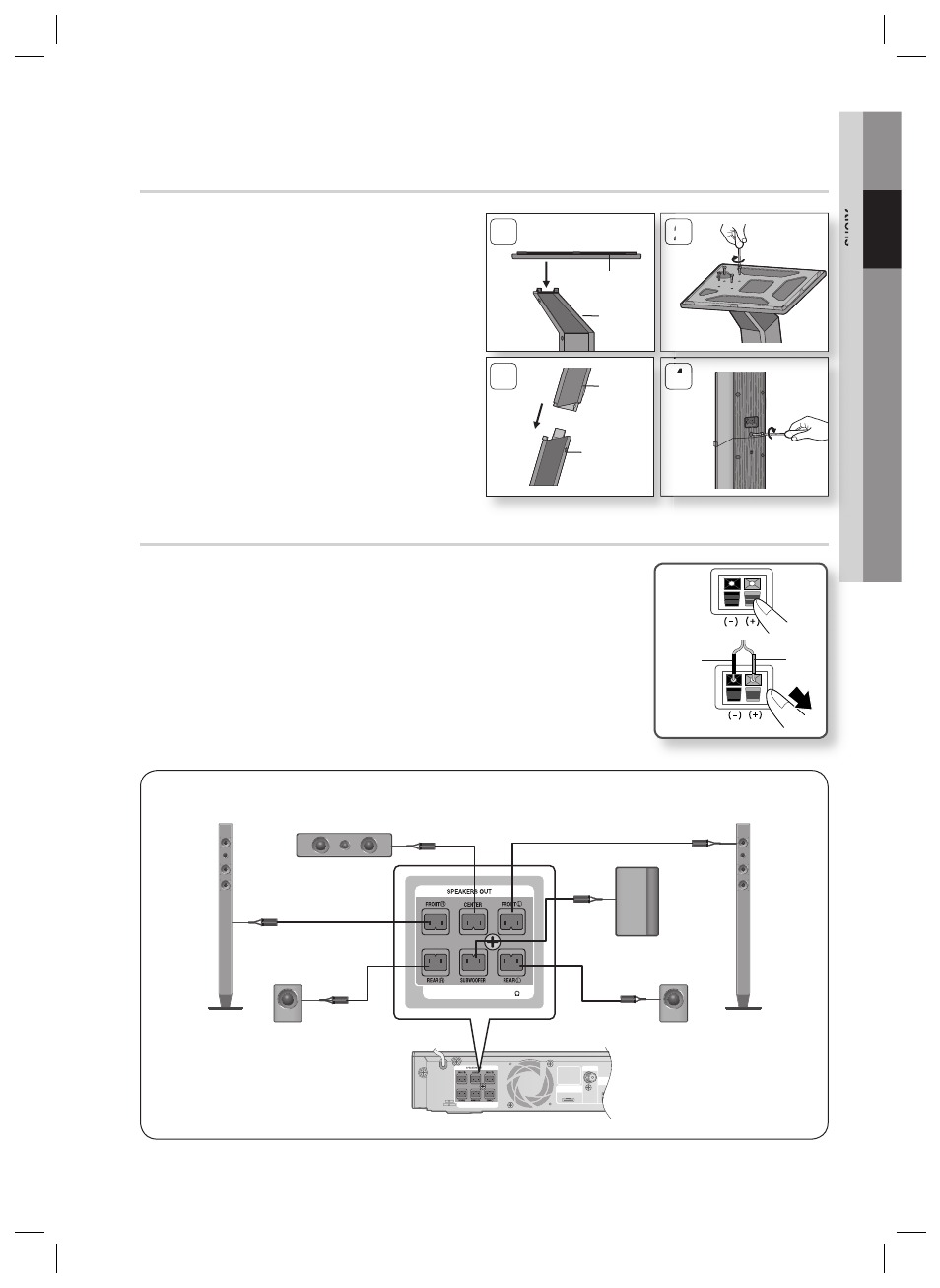

Connecting The Speakers
Press down the terminal tab on the back of the speaker.
Insert the black wire into the black terminal (–) and the red wire into
the red (+) terminal, and then release the tab.
Connect the connecting plugs to the back of the product by matching
the colors of the speaker plugs to the speaker jacks.
1.
2.
3.
Black Red
FM ANT
iPod
SPEAKER IMPEDANCE : 3
FM ANT
iPod
SPEAKER IMPEDANCE : 3
SPEAKER IMPEDANCE : 3
Front Speaker (R)
Subwoofer
Surround Speaker (R) Surround Speaker (L)
Center Speaker
Front Speaker (L)
Installing the Speakers on the Tallboy Stand
Turn the Stand Base upside-down and
connect it to the Stand.
Insert four small screws clockwise into the four
holes marked using a screwdriver as shown in the
illustration.
Connect the upper Speaker to the assembled
Stand.
Insert another large screw clockwise into
the hole on the rear of the speaker using a
screwdriver.
1.
2.
3.
4.
4
2
Stand
Stand
Base
1
3
Stand
Speaker
