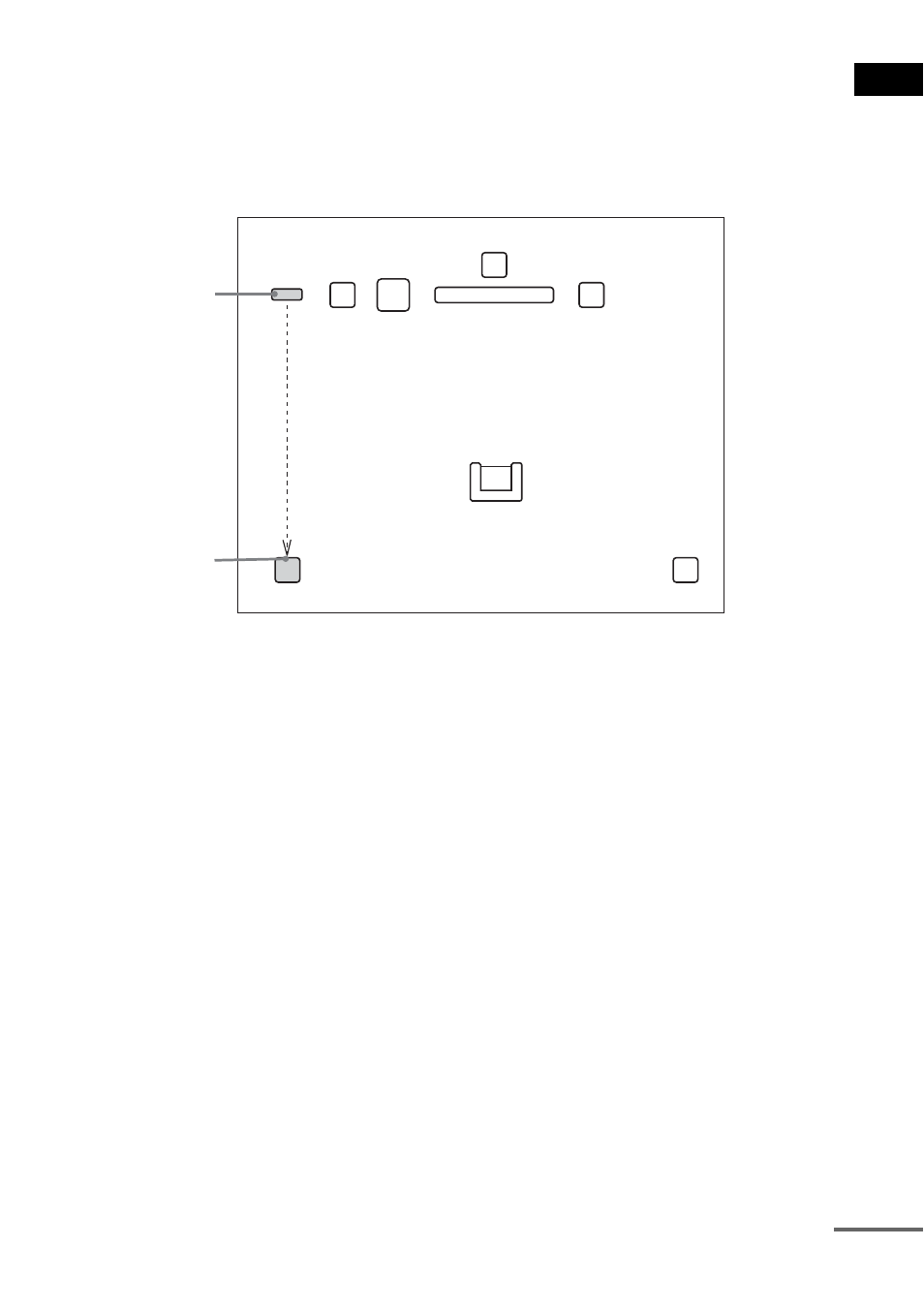

Example for installation
Position the IR transmitter and surround speaker (L) as illustrated.
Install the IR transmitter and IR receiver of the surround speaker (L) in direct line with each other, and
adjust the orientation of the IR transmitter and surround speaker (L) until the POWER/ON LINE
indicator turns green.
TV
Listening position
Front
speaker (L) Front
speaker (R)
Center speaker
Surround
speaker (L) Surround
speaker (R)
Subwoofer
IR transmitter
IR receiver of the
surround speaker
Top view
