Complete the Procedure Connecting the Cables
April 2013 Drive Installation or Replacement—Spectra T200, T380, T680, T950, and T-Finity Library
22
Partitions Using Direct-Attached Fibre Channel Drives (all
libraries)
When a partition includes Fibre Channel drives, the drives are connected
directly to the host using a Fibre Channel arbitrated loop or fabric.

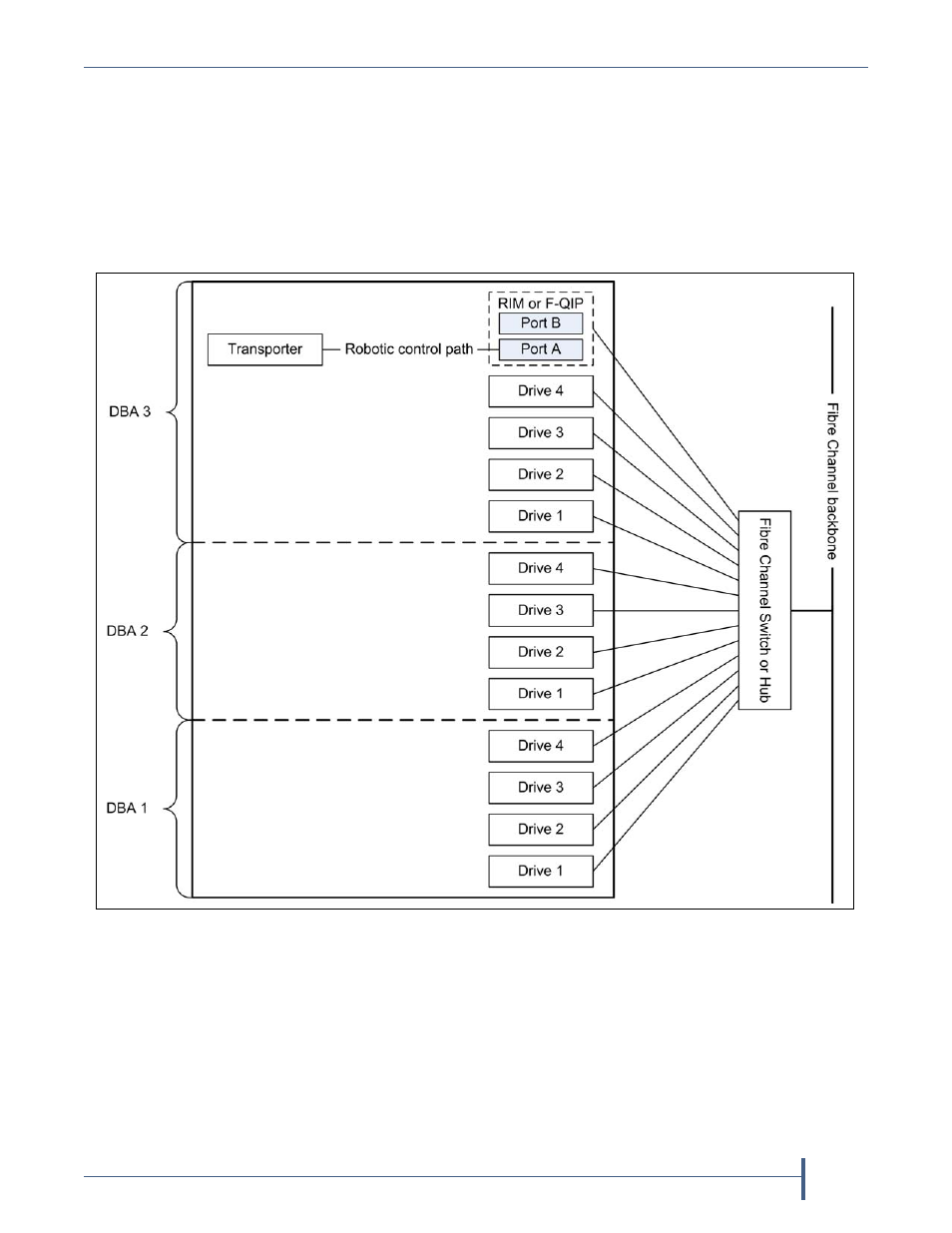

Figure 18 is a simple representation of how the robotics and direct-
attached Fibre Channel drives are connected directly to a Fibre Channel
SAN through a switch or hub.
Figure 18 An example of a RIM or an F-QIP in a partition with direct-attached Fibre Channel drives.
