Connecting a tv and other components, Ahdmi cable (not supplied), Boptical digital cord (not supplied) – Sony HTSF2300 User Manual
Page 55: Caudio cord (not supplied), Ac b

55
GB
Contr
o
l f
o
r HDMI
Before connecting the cords, be sure to
disconnect the AC power cord.
To enjoy TV multi channel
surround sound broadcasting
You can listen to TV multi channel surround
sound broadcasting from the speakers
connected to the receiver.
Connect the OPTICAL output jack of the TV
to the TV OPT IN jack of the receiver.
a)
Connect at least one of the audio cords (B or C).

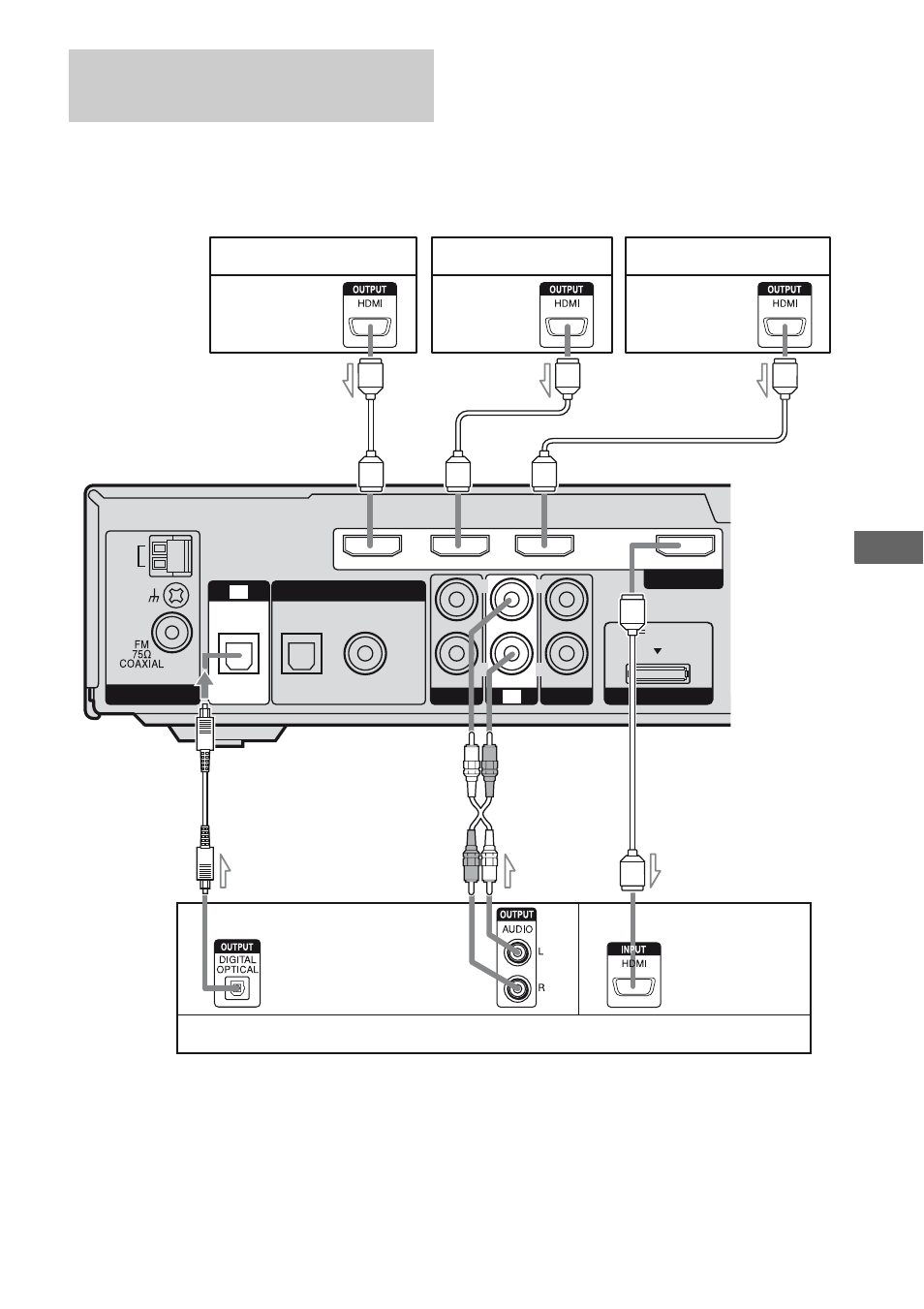

Connecting a TV and other
components
OPT IN
VIDEO 2
COAX IN
DVD
DVD IN
SAT IN
BD IN
OUT
ANTENNA
AUDIO IN
VIDEO 1
DMPORT
DIGITAL
HDMI
AM
L
R
L
TV
TV
DC5V 700mA MAX
OPT IN
AUDIO IN
AUDIO IN
SA-CD/CD
R
Satellite tuner/Set-top box
A
HDMI cable (not supplied)
We recommend that you use a Sony HDMI cable.
B
Optical digital cord (not supplied)
a)
C
Audio cord (not supplied)
a)
DVD player
Blu-ray disc player
Audio/video
signals
Audio/video
signals
Audio/video
signals
Audio signals
TV, etc.
Audio/video
signals
A
A
A
A
C
B
