Connecting components with hdmi jacks, Hdmi features, Ahdmi cable (not supplied) – Sony HTSF2300 User Manual
Page 20

20
GB
HDMI is the abbreviated name for High-
Definition Multimedia Interface. It is an
interface which transmits video and audio
signals in digital format.
HDMI features
• A digital audio signals transmitted by HDMI
can be output from the speakers connected to
the receiver. This signal supports Dolby
Digital, DTS and Linear PCM.
• This receiver supports xvYCC transmission.
• This receiver supports the Control for HDMI
function. For details, see “Control for
HDMI” (page 54).

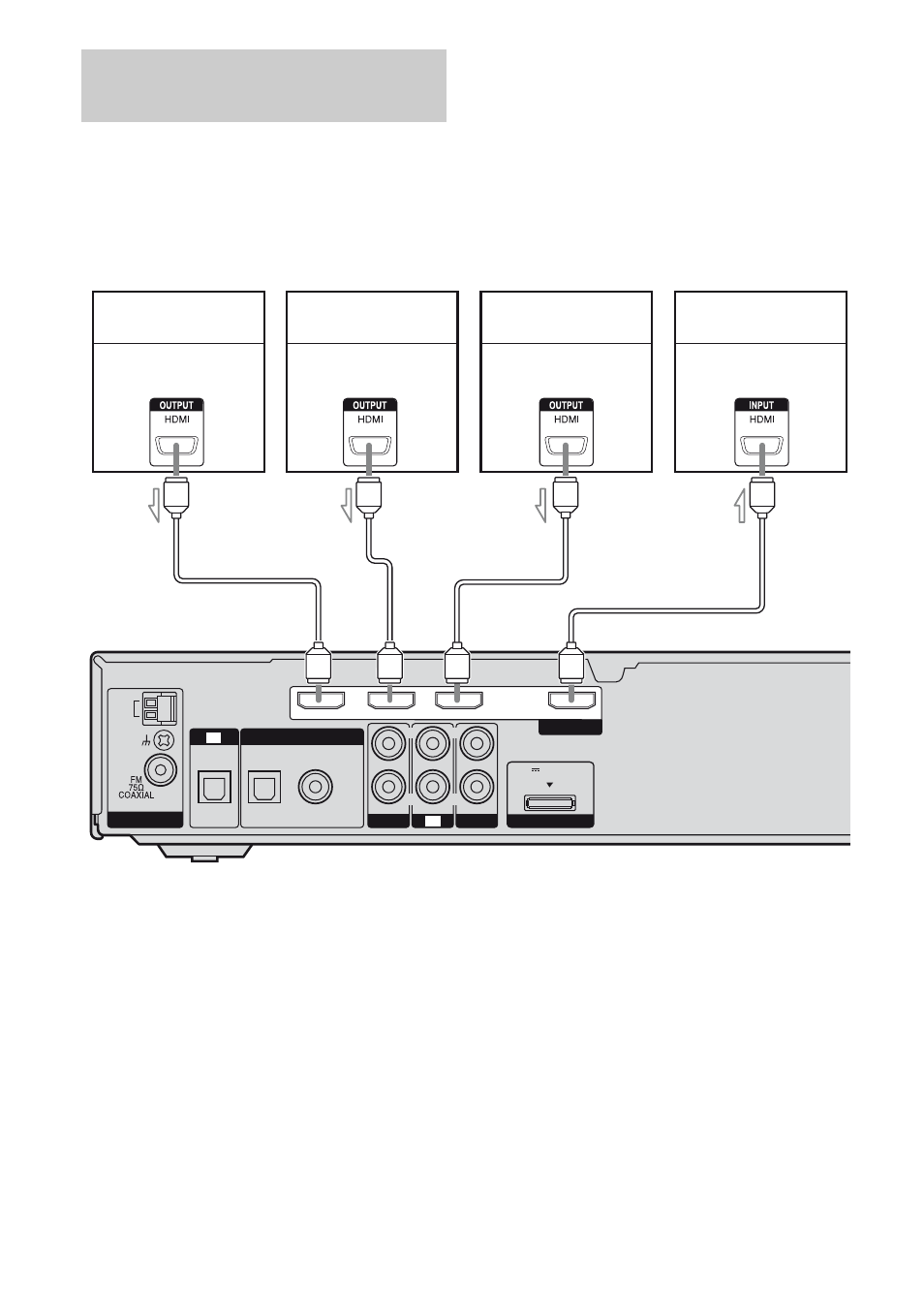

Connecting components with
HDMI jacks
OPT IN
OPT IN
VIDEO 2
COAX IN
AUDIO IN
DVD
DVD IN
SAT IN
BD IN
OUT
ANTENNA
SA-CD/CD
AUDIO IN
AUDIO IN
VIDEO 1
DMPORT
DIGITAL
HDMI
AM
R
L
R
L
TV
TV
DC5V 700mA MAX
DVD player
Blu-ray disc player
TV, projector, etc.
A
HDMI cable (not supplied)
We recommend that you use a Sony HDMI cable.
Audio/video signals
Audio/video signals
Audio/video signals
A
A
A
Satellite tuner,
Set-top box
Audio/video signals
A
