The purpose of the Set-up Button is for synchronizing
between RS-232 to Bluetooth Converter and BT RS232
Config Tool software.
Hardware Installation
1.
Connect the RS-232 to Bluetooth Converter to serial
port of the PC. Connect the DC power adapter and
jack into power outlet and DC-in outlet. You will
see the red LED is going to be on and the green LCD
will blink.
2.
After running the BT RS232 Config Tool and finish
configuration. Click the Connect icon in tool
software and press the SET-UP button of the RS-232
to Bluetooth Converter immediately.
3.
The green LED will turn on. The RS-232 to Bluetooth
Converter is now active.

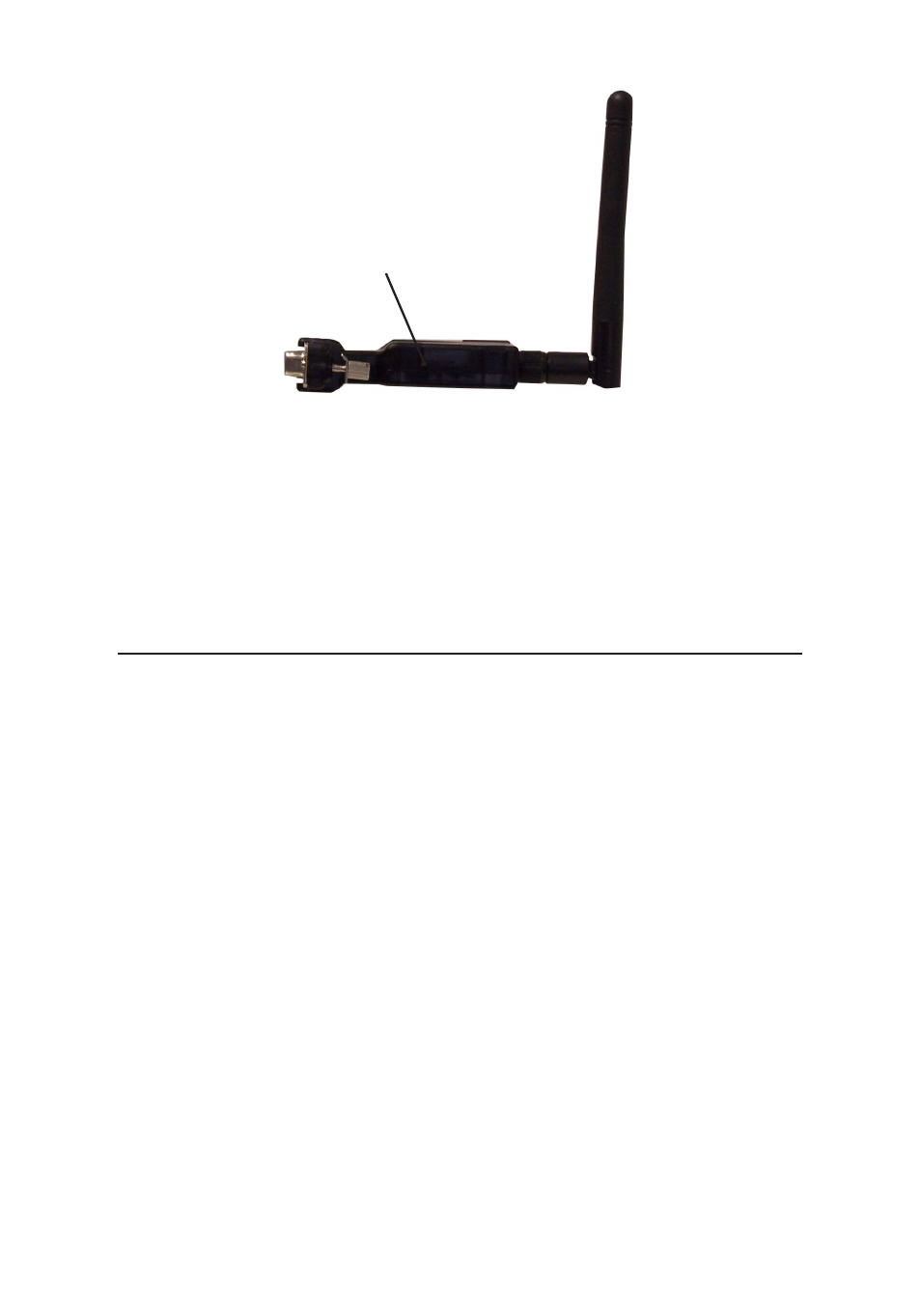

Set-up Button
Figure 4
Set-up button
