Hooking Up the Components
DIGITAL
DVD/LD
IN
COAXIAL
MULTI CH IN
ANTENNA
SUB
WOOFER MD/TAPE AUX TV/SAT DVD/LD
MONITOR
VIDEO
FRONT CENTER SURROUND
R L
R L
R L
R L
SPEAKERS IMPEDANCE USE 8 – 16 Ω
TV/SAT IN
DVD/LD
IN
OPTICAL
SUB
WOOFER
FRONT SURROUND
R
L
CENTER
IN AUDIO IN AUDIO IN
VIDEO IN VIDEO IN VIDEO OUT VIDEO OUT VIDEO IN
AUDIO IN AUDIO OUT OUT IN IN
AUDIO
OUT
AM
FM
75 Ω
COAXIAL
R
L
R
L
R
L
R
L
VIDEO
OUT
R
AUDIO
OUT
OUTPUT
L
VIDEO
OUT
AUDIO
OUT
OUTPUT
DIGITAL
COAXIAL
OUTPUT
DIGITAL
OPTICAL
OUTPUT
DIGITAL
OPTICAL
OUTPUT
CD
DVD/LD
VIDEO IN
DIGITAL
DVD/LD IN
(COAXIAL)
(OPTICAL)
AC-3 RF
OUT
VIDEO OUT
MULTI CHANNEL DECODING
INPUT MODE
MUTING
VIDEO
MD/TAPE
DVD/LD
CD
TV/SAT
TUNER AUX
DISPLAY
DIMMER
PHONES
SPEAKERS
? / 1
MEMORY SHIFT FM MODE FM AM
EQ
SURR LEVEL SET UP
NAME A
ENTER A.F.D.
SOUND FIELD MULTI CH IN
EQUALIZER CINEMA STUDIO EX
MODE 2CH
PRESET
TUNING TUNING – + – + B C
MASTER VOLUME
–
+
DVD or LD
player (etc.)*
Required cords
Optical digital cords (not supplied)
Coaxial digital cord (supplied)
Audio/video cords (not supplied)
When connecting a cord, be sure to match the color-coded pins to
the appropriate jacks on the components.
Connect the digital output jacks of your DVD player and
satellite tuner (etc.) to the receiver’s digital input jacks to
bring the multi channel surround sound of a movie
theater into your home. To enjoy full effect of multi
channel surround sound, five speakers (two front
speakers, two surround speakers, and a center speaker)
and a sub woofer are required. You can also connect an
LD player with an RF OUT jack via an RF demodulator,
such as the Sony MOD-RF1 (not supplied).

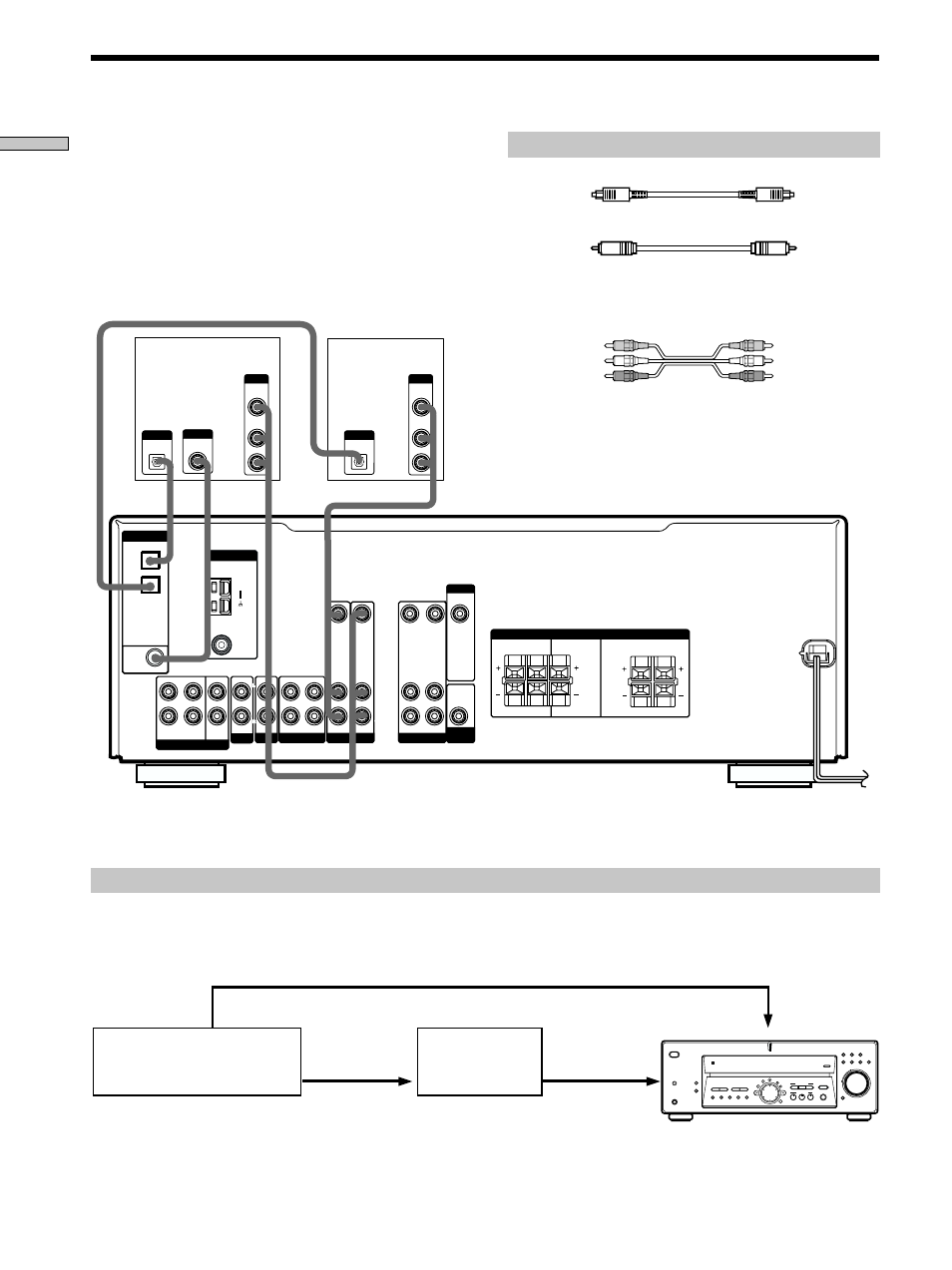

Digital Component Hookups
* When making digital audio connections to a DVD player, connect to either the coaxial OR optical digital jacks, and not both. It is recommended to
make digital audio connections to the coaxial jack.
Example of LD player connected via an RF demodulator
Please note that you cannot connect an LD player’s AC-3 RF OUT jack directly to the receiver’s digital input jacks. You must
first convert the RF signal to either an optical or coaxial digital signal. Connect the LD player to the RF demodulator, then
connect the RF demodulator’s optical or coaxial digital output to the receiver’s OPTICAL or COAXIAL DVD/LD IN jack.
Refer to the instruction manual supplied with your RF Demodulator for details on AC-3 RF hookups.
RF demodulator LD player
Black Black
Orange Orange
Yellow (video) Yellow (video)
White (L/audio) White (L/audio)
Red (R/audio) Red (R/audio)
DIGITAL
DVD/LD IN
(COAXIAL)
or (OPTICAL)
Note
When making connections as shown above, be sure to set INPUT MODE (8 on page 23) manually. The receiver may not operate correctly
if INPUT MODE is set to “AUTO.”
Note
The optical and coaxial digital input jacks on the receiver are
compatible with sampling frequencies of 32 kHz, 44.1 kHz,
48kHz and 96 kHz** (**DVD/LD only).
TV or Satellite
tuner
