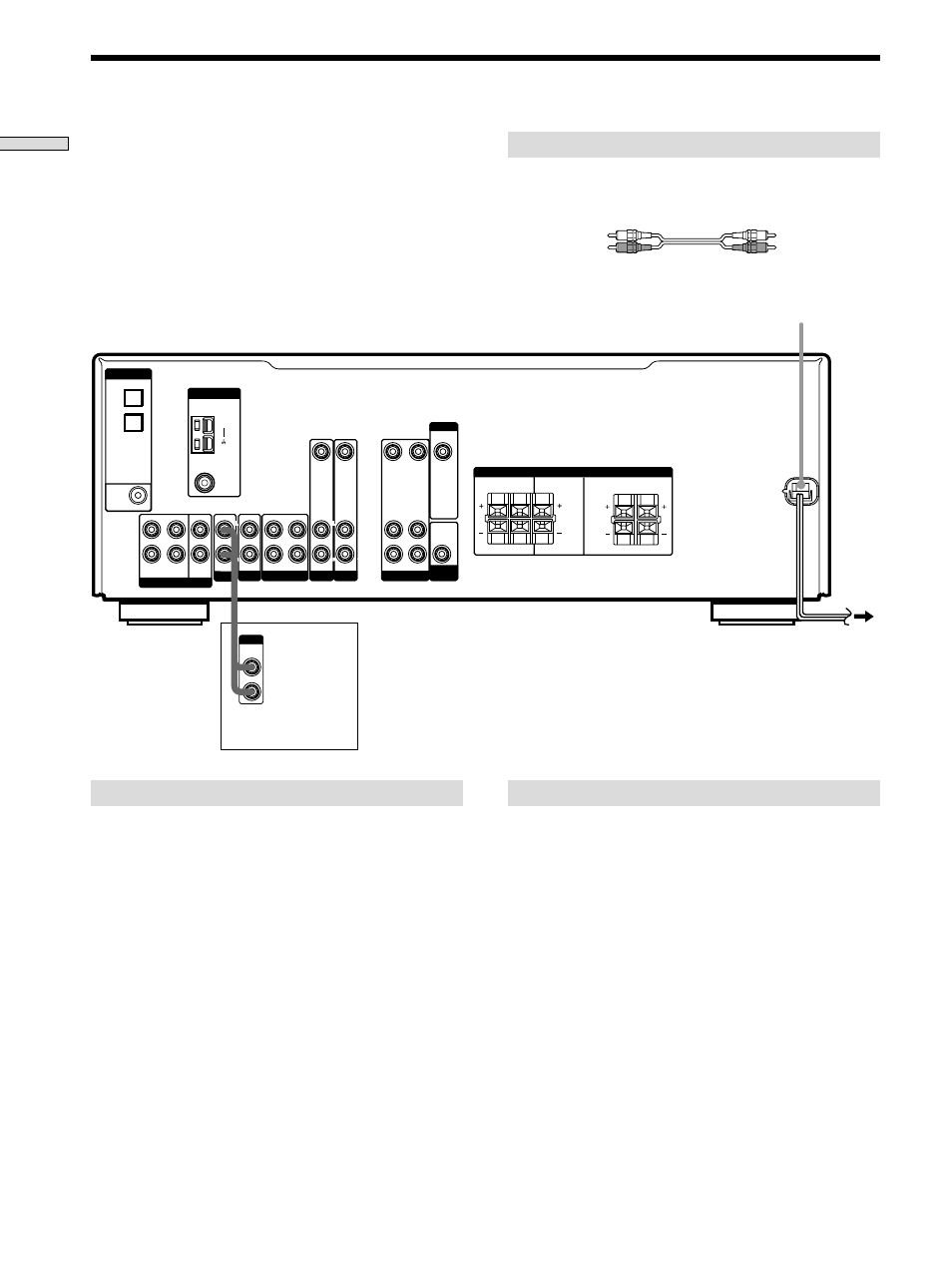

Hooking Up the Components
DIGITAL
DVD/LD
IN
COAXIAL
MULTI CH IN
ANTENNA
SUB
WOOFER MD/TAPE AUX CD TV/SAT DVD/LD
MONITOR
VIDEO
FRONT CENTER SURROUND
R L
R L
R L
R L
SPEAKERS SPEAKERS IMPEDANCE USE 8 – 16 Ω IMPEDANCE USE 8 – 16 Ω
TV/SAT
IN
DVD/LD
IN
OPTICAL
SUB
WOOFER
FRONT SURROUND
R
L
CENTER
IN AUDIO IN AUDIO IN
VIDEO IN VIDEO IN VIDEO OUT VIDEO OUT VIDEO IN
AUDIO IN AUDIO OUT OUT IN IN
AUDIO
OUT
AM
FM
75 Ω
COAXIAL
R
L
R
L
R
L
R
L
LINE
OUTPUT
AC power cord
To a wall outlet
Other Hookups
White (L) White (L)
Red (R) Red (R)
CD player, tape deck,
MD deck, etc.
Required cords
Audio cords (not supplied)
When connecting a cord, be sure to match the color-coded pins to
the appropriate jacks on the components.
AUX AUDIO IN hookup
• If you have an individual audio component
(except PHONO)
Use the audio cords to connect the LINE OUT jacks on
the CD player, tape deck, or MD deck to the AUX
AUDIO IN jack on the receiver so that you can listen to
stereo sources in surround sound.
Connecting the AC power cord
Before connecting the AC power cord of this receiver to a
wall outlet:
• Connect the speaker system to the receiver (see page
12).
Connect the AC power cord(s) of your audio/video
components to a wall outlet.
Note
If the AC power cord is disconnected for about one week, the
receiver’s entire memory will be cleared and the demonstration
will start.
