12

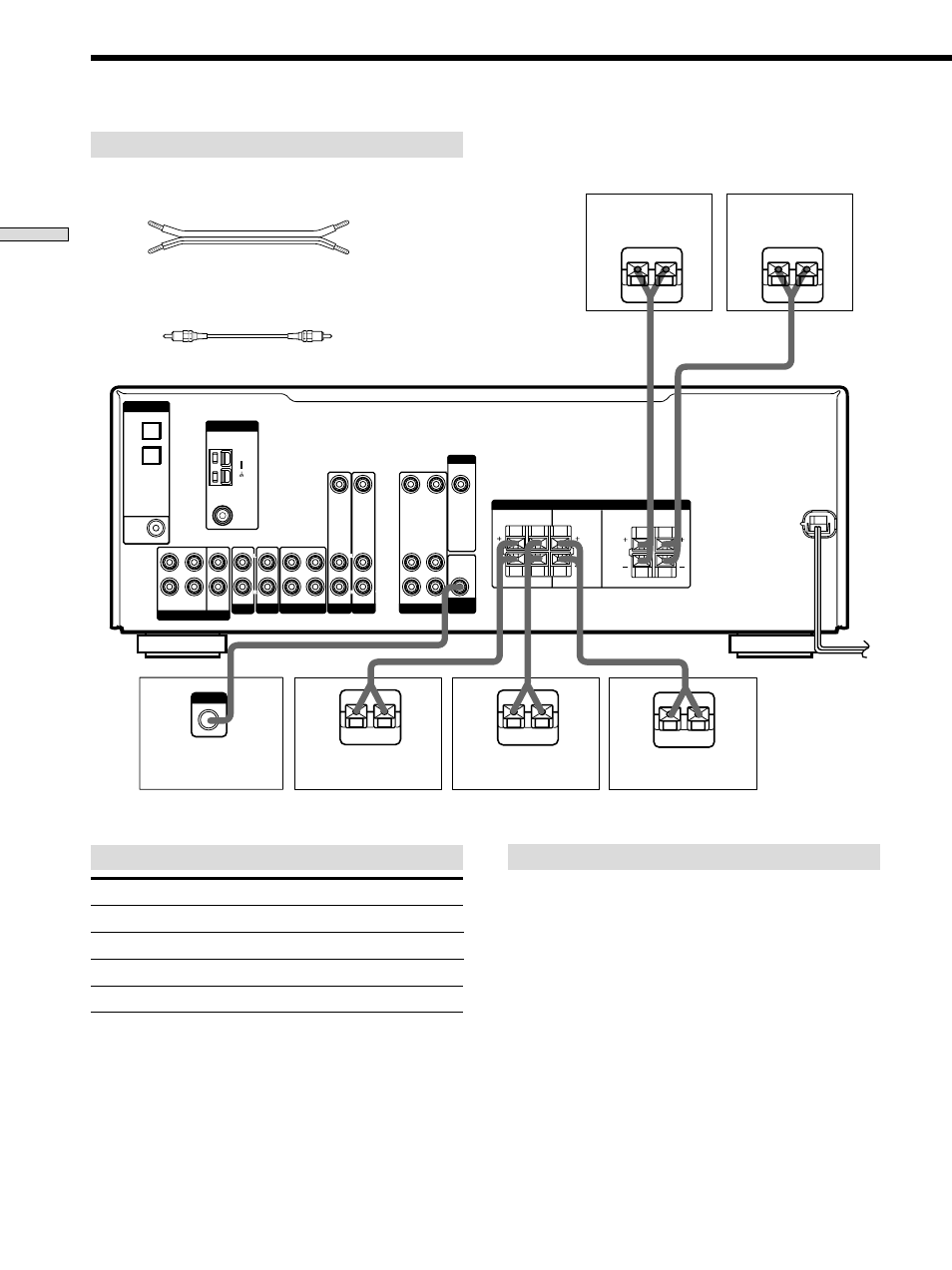

Hooking Up and Setting Up the Speaker System
DIGITAL
DVD/LD
IN
COAXIAL
MULTI CH IN
ANTENNA
SUB
WOOFER
MD/TAPE
AUX
CD
TV/SAT DVD/LD
MONITOR
VIDEO
FRONT
CENTER
SURROUND
R
L
R
L
R
L
R
L
SPEAKERS
IMPEDANCE USE 8 – 16
Ω
TV/SAT
IN
DVD/LD
IN
OPTICAL
SUB
WOOFER
FRONT
SURROUND
R
L
CENTER
IN
AUDIO IN
AUDIO IN
VIDEO IN
VIDEO IN
VIDEO OUT
VIDEO OUT
VIDEO IN
AUDIO IN
AUDIO OUT
OUT
IN
IN
AUDIO
OUT
AM
FM
75
Ω
COAXIAL
R
L
R
L
R
L
R
L
}
]
}
]
}
]
}
]
}
]
INPUT
Front speaker (R)
Front speaker (L)
Center speaker
Active sub woofer
Surround speaker (R)
Surround speaker (L)
Notes on speaker system hookup
• Twist the stripped ends of the speaker cords about 2/3
inch (10 mm). Be sure to match the speaker cord to the
appropriate terminal on the components: + to + and –
to –. If the cords are reversed, the sound will be
distorted and will lack bass.
• If you use speakers with low maximum input rating,
adjust the volume carefully to avoid excessive output
on the speakers.
Terminals for connecting the speakers
Connect the
To the
Front speakers (8 ohm)
SPEAKERS FRONT terminals
Surround speakers (8 ohm)
SPEAKERS SURROUND terminals
Center speaker (8 ohm)
SPEAKERS CENTER terminals
Active sub woofer
SUB WOOFER AUDIO OUT jack
Required cords
Speaker cords (supplied)
One for each front, surround, and center speaker
(+)
(+)
(–)
(–)
Monaural audio cord (supplied)
One for an active woofer
Black
Black
Speaker System Hookup
