6

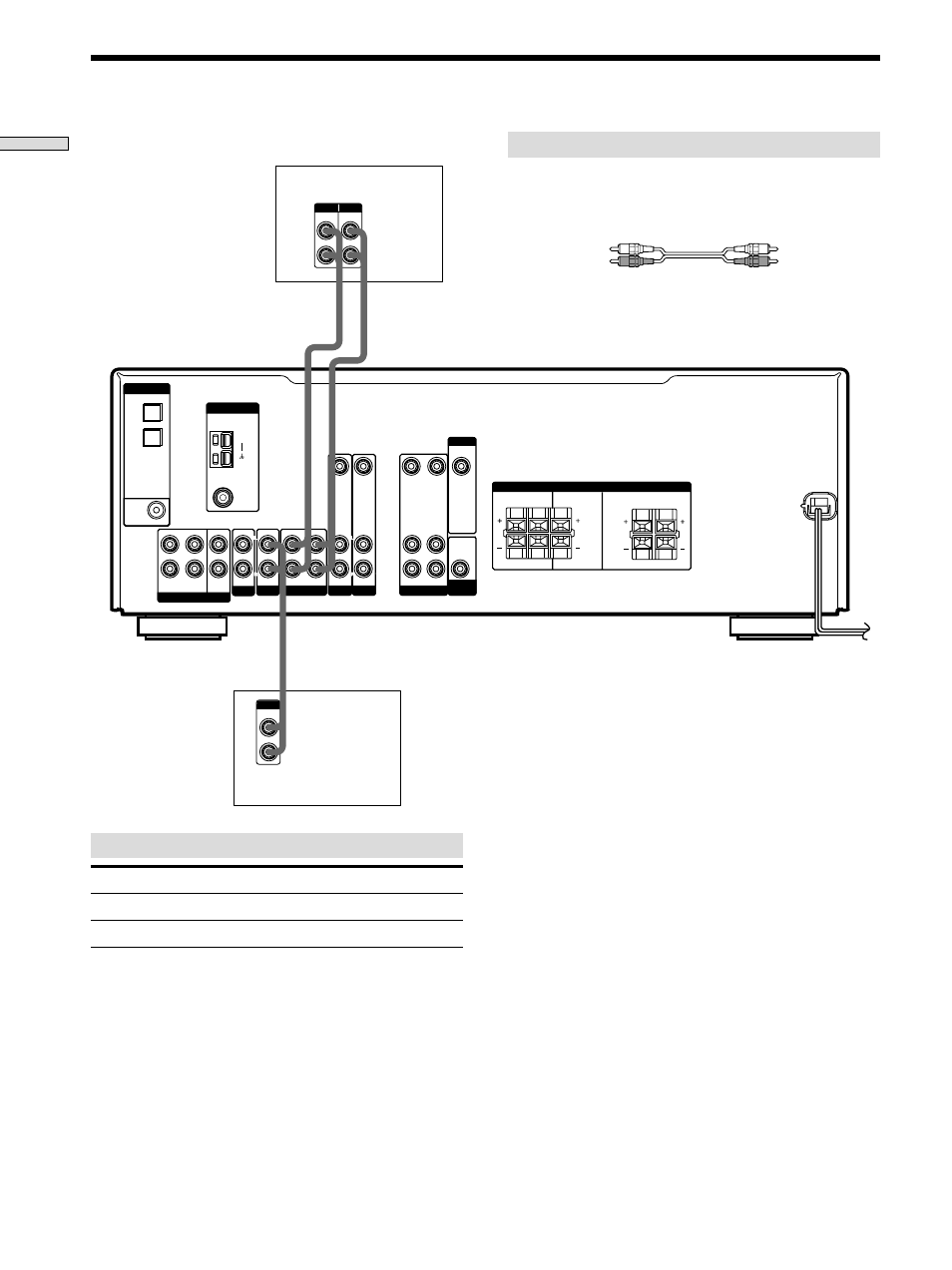

Hooking Up the Components
DIGITAL
DVD/LD
IN
COAXIAL
MULTI CH IN
ANTENNA
SUB
WOOFER MD/TAPE AUX CD TV/SAT DVD/LD
MONITOR
VIDEO
FRONT CENTER SURROUND
R L
R L
R L
R L
SPEAKERS IMPEDANCE USE 8 – 16 Ω
TV/SAT
IN
DVD/LD
IN
OPTICAL
SUB
WOOFER
FRONT SURROUND
R
L
CENTER
IN AUDIO IN AUDIO IN
VIDEO IN VIDEO IN VIDEO OUT VIDEO OUT VIDEO IN
AUDIO IN AUDIO OUT OUT IN IN
AUDIO
OUT
AM
FM
75 Ω
COAXIAL
R
L
R
L
R
L
R
L
IN OUT
L
R
з
з
LINE
L
R
OUTPUT
LINE LINE
INPUT OUTPUT
Jacks for connecting audio components
Connect a To the
CD player CD jacks
MD deck or Tape deck MD/TAPE jacks
Required cords
Audio cords (not supplied)
When connecting a cord, be sure to match the color-coded pins to
the appropriate jacks on the components.
MD/TAPE deck
CD player
White (L) White (L)
Red (R) Red (R)
Audio Component Hookups
