Sanyo SC-X2100P - Manual (Page 6)

Key
No.
Key
No.
Parts No. Description Q'ty Parts No. Description Q'ty
COLOR CODE:N1-52/N1-233(GRAY)
1 663 001 0051 SUCTION HOSE COMP. KEYNO(2-36) 1 23 663 000 8430 SLIP RING BASE 1
2 663 000 8256 CONTROL SWITCH CASE 1 24 663 000 8447 SLIP RING ASSEMBLY A (RED) L=90 1
3 663 000 8263 SCREW (3X12) 4 25 663 000 8454 SLIP RING ASSEMBLY B (WHITE) L=70 1
4 663 001 0068 SWITCH LEVER (N1-233) 1 26 663 000 8461 TUBE (L=40) 1
5 663 001 0075 CRAMP HOOK (N1-233) 1 27 663 000 8478 TUBE 4
6 663 000 8294 CRAMP SPRING 1 28 663 001 0136 SUCTION HOSE COVER C 1
7 663 000 8300 CONNECTOR HOUSING ASSEMBLY B 1 29 663 001 0143 SUCTION HOSE (N1-52) 1
8 663 000 8317 CORD ASSEMBLY (BLACK) L=75 1 30 663 001 0150 HOSE JOINT PIPE C (N1-233) 1
9 663 000 8324 MICRO SWITCH 1 31 663 001 0167 HOSE HOOK COVER (N1-233) 1
10 663 000 0335 SCREW (4X16) 1 32 663 001 0174 HOSE HOOK (N1-233) 1
11 663 000 8331 SWITCH BASE 1 33 663 000 0519 HOSE HOOK SPRING 1
12 663 001 0082 GRIP (N1-233) 1 34 663 000 8539 CORD ASSYEMBLY 2
13 663 000 0076 SCREW (4X16) 2 35 663 001 0181 HOSE JOINT PIPE A (N1-233) 1
14 663 001 0099 HOSE JOINT PIPE B (N1-233) 1 36 663 001 0198 SUCTION HOSE COVER 1
15 663 001 0105 BRUSH ASSEMBLY 1 37 663 001 0204 CONNECTION PIPE ASSEMBLY A 1
16 663 000 8379 SLIP RING CLEANER 2 38 663 001 0211 CONNECTION PIPE ASSEMBLY B 1
17 663 001 0112 COLLECTING SHOE HOLDER 1 39 663 001 0228 UPHOLSTERY BRUSH ASSEMBLY (N1-233) 1
18 663 000 8393 COLLECTING SHOE B 2 40 663 001 0235 CREVICE TOOL (N1-233) 1
19 663 000 8409 CONNECTOR HOUSING ASSEMBLY 1 41 663 001 0242 UPHOLSTERY BRUSH ASSEMBLY (ETIQUETTE) 1
20 663 001 0129 COLLECTING SHOE COVER 1 42 663 000 0892 DUSTER ARM 1
21 663 000 7693 SCREW (3X8) 3 663 001 0259 INSTRUCTION MANUAL 1
22 663 000 8423 JOINT PIPE PACKING 1
1 (2 - 36)
2
3
4
5
6
7
8
9
16
37
12
13 3
14
15
11
17
18
19
38
20
22
24
23
25
21
26
39
10
35
36
30
21
28
29
31
32
33
27
27
34
40
41
42
- 6 -
For Parts or Service Contact
SANYO FISHER SERVICE CORPORATION.
21605 Plummer Street,
Chatsworth, CA 91311

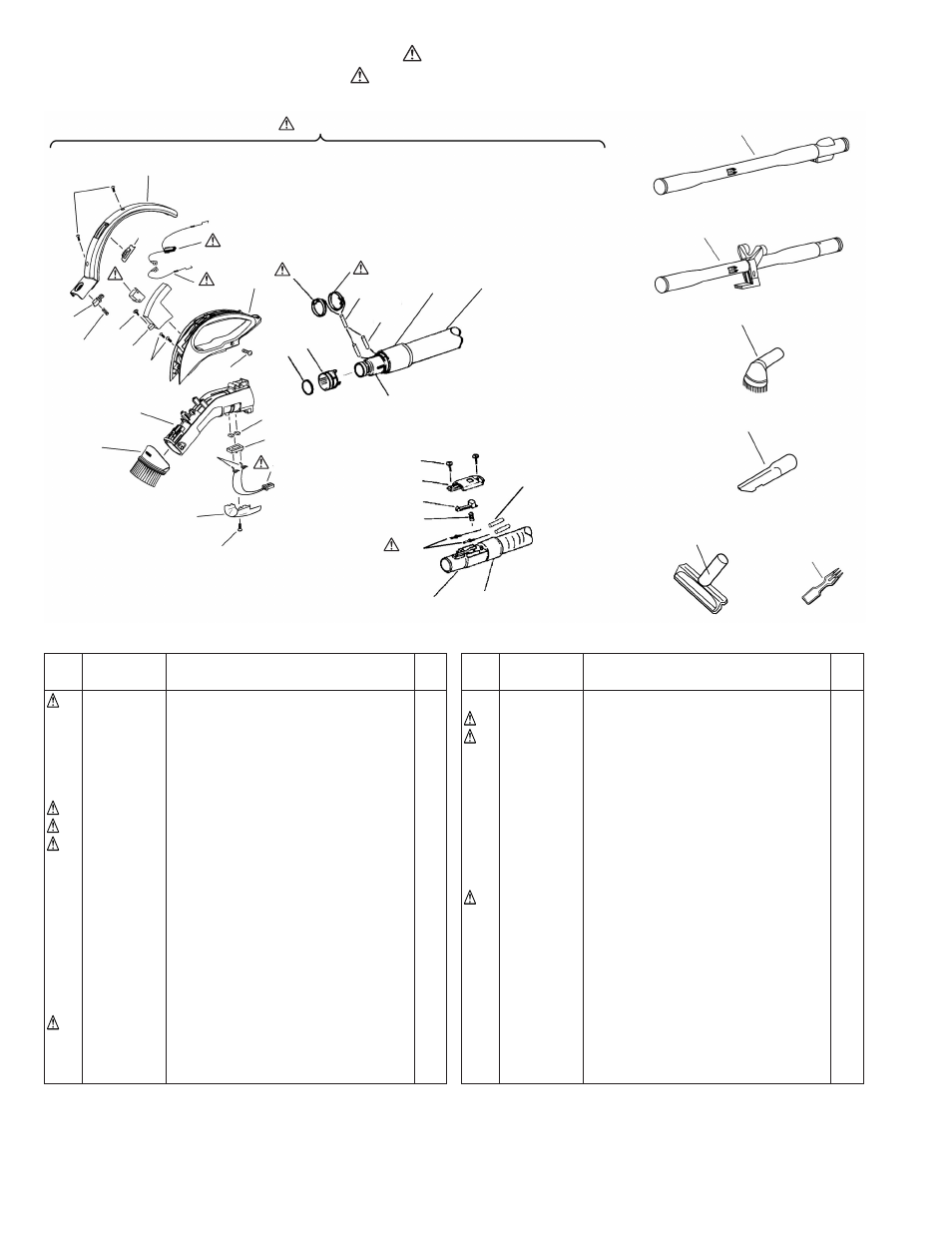

Exploded View
(Attachment)
Parts List
NOTE : The parts marked with have special characteristics of safety,
if replace the mark parts,use only SANYO specified parts.
SC-X2100P (U.S.A.)
Nov./2001 Printed in Japan
