Using CONTROL S Control
System
(Models of area code U, CA only)
If you have a CONTROL S-compatible Sony
TV, satellite tuner, monitor, DVD player or
VCR, use a control S cord (not supplied) to
connect the CONTROL S IN (for TV, satellite
tuner, or monitor) or CONTROL S OUT (for
VCR, etc.) jack on the receiver to the
appropriate CONTROL S jack on the respective
component. Refer to the operating instructions
supplied with your TV, satellite tuner, monitor,
VCR, etc., for details.

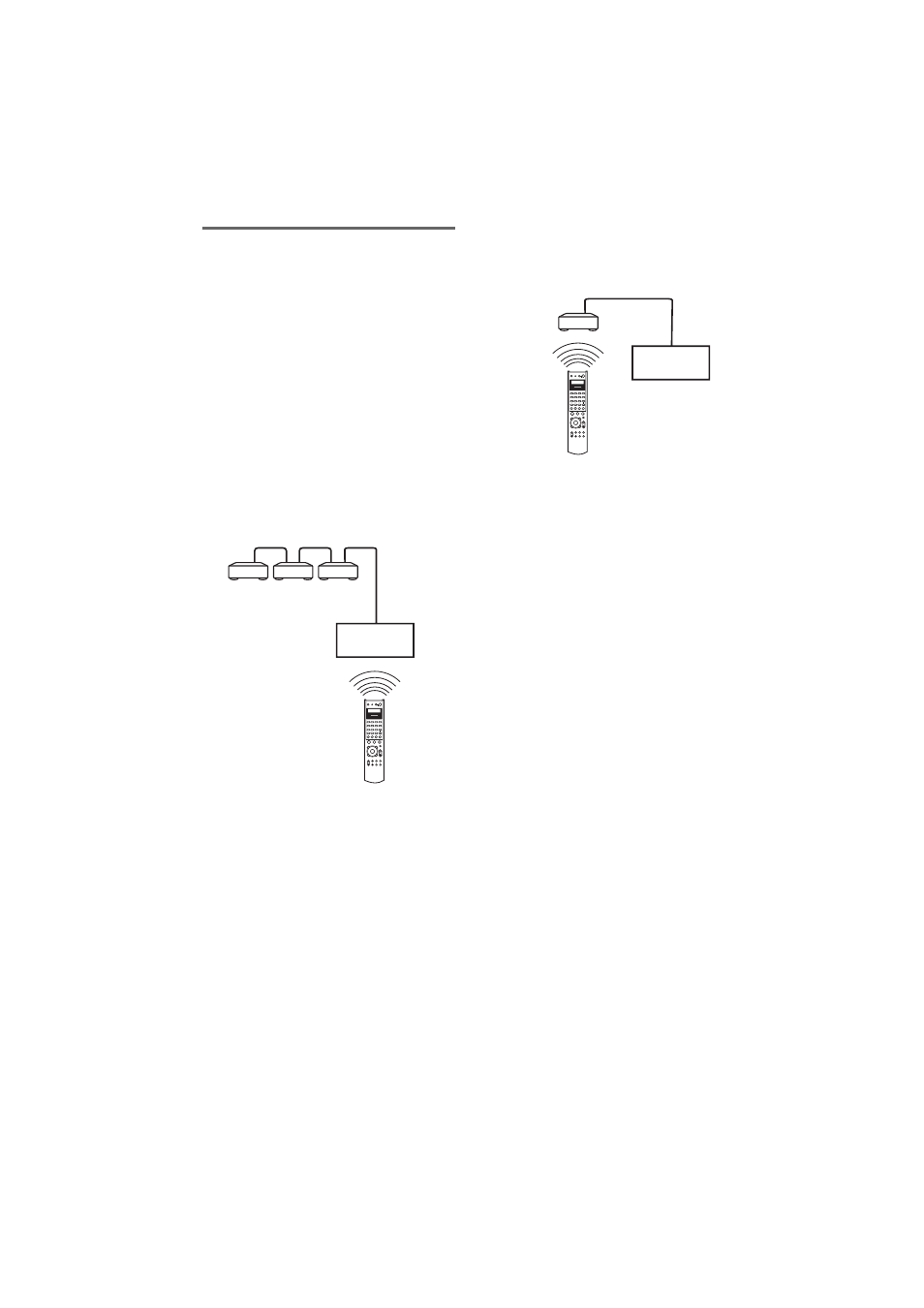

If you connect the CONTROL S OUT jack on
another component to the CONTROL S IN
jack on this unit
Example
The remote sensor on the CONTROL S OUT
component receives remote codes the same way
as the remote sensor on this unit. This is useful
if you have placed this unit in a rack, etc.
If you connect the CONTROL S IN jack on
another component to the CONTROL S
OUT jack on this unit
Example
The remote sensor on this unit receives remote
codes the same way as the remote sensor on the
CONTROL S IN component. This is useful if
you place the other component away from this
unit.
