Using the Video and Audio Input Jacks
L Connecting video equipment for playback of video material.
• When the television is connected to video equipment as shown below, the material being played back
on the video equipment can be seen on the television screen.

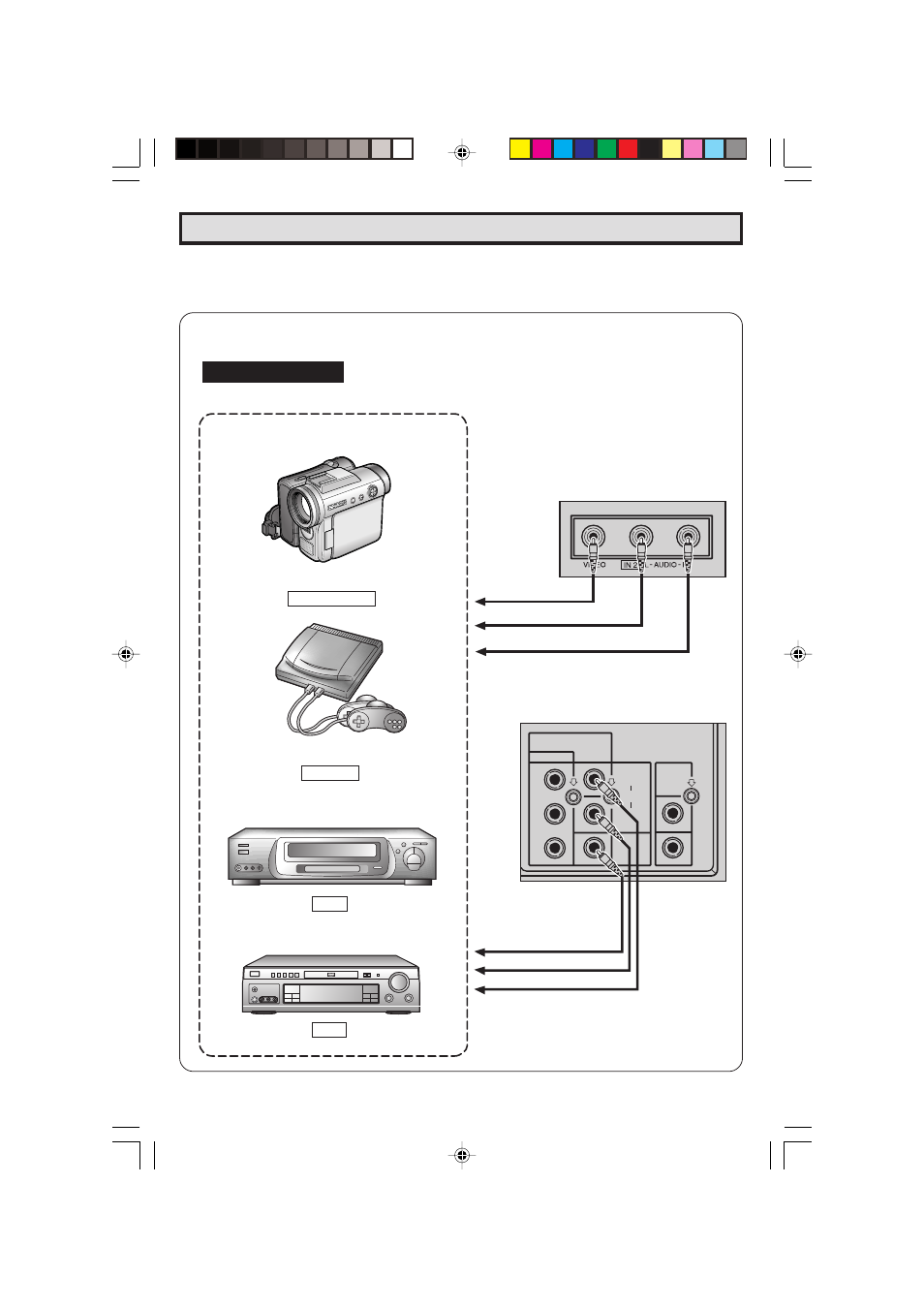

Connecting video device equipped with video output terminals.
CONNECTIONS
(Front connection
terminals of TV)
To AUDIO OUTPUT (L)
To AUDIO OUTPUT (R)
(Pull open for inside door)
To VIDEO OUTPUT
VIDEO EQUIPMENT
P R
P B
Y
IN 1
LINE
OUT
R
L
AUDIO
VIDEO
R
L
COMPONENT
(Rear connection
terminals of TV)
To VIDEO OUTPUT
To AUDIO OUTPUT (L)
To AUDIO OUTPUT (R)
CAMCORDER
TV GAME
VCR
DVD
