BHM SLING
VOYAGER 420/550/800 (rev. 3) 11
5 DESCRIPTION VOYAGER 800
5.1 Lift Unit
OPERATING FEATURES
• Weight capacity: 360 kg (800 lbs.)
• Average weight: 22.73 kg (50 lbs.) battery incl
• Electronic soft-start and soft-stop motor.
• Manual and electric emergency lowering.
• Emergency brake.
• Emergency stopping device.
• Current limit for circuit protection.
• Low battery disconnect system to protect
batteries from being drained.
• Lifting speed: 3 cm/sec. (1.2 in./sec.)
• Horizontal displacement speed : 15 cm/sec
• Vertical axis motor: 24 VDC, 1/8 HP
• Horizontal axis motor: 24 VDC, 1/10HP.
• Strap length up to 1.3 m. (49.5 inches).

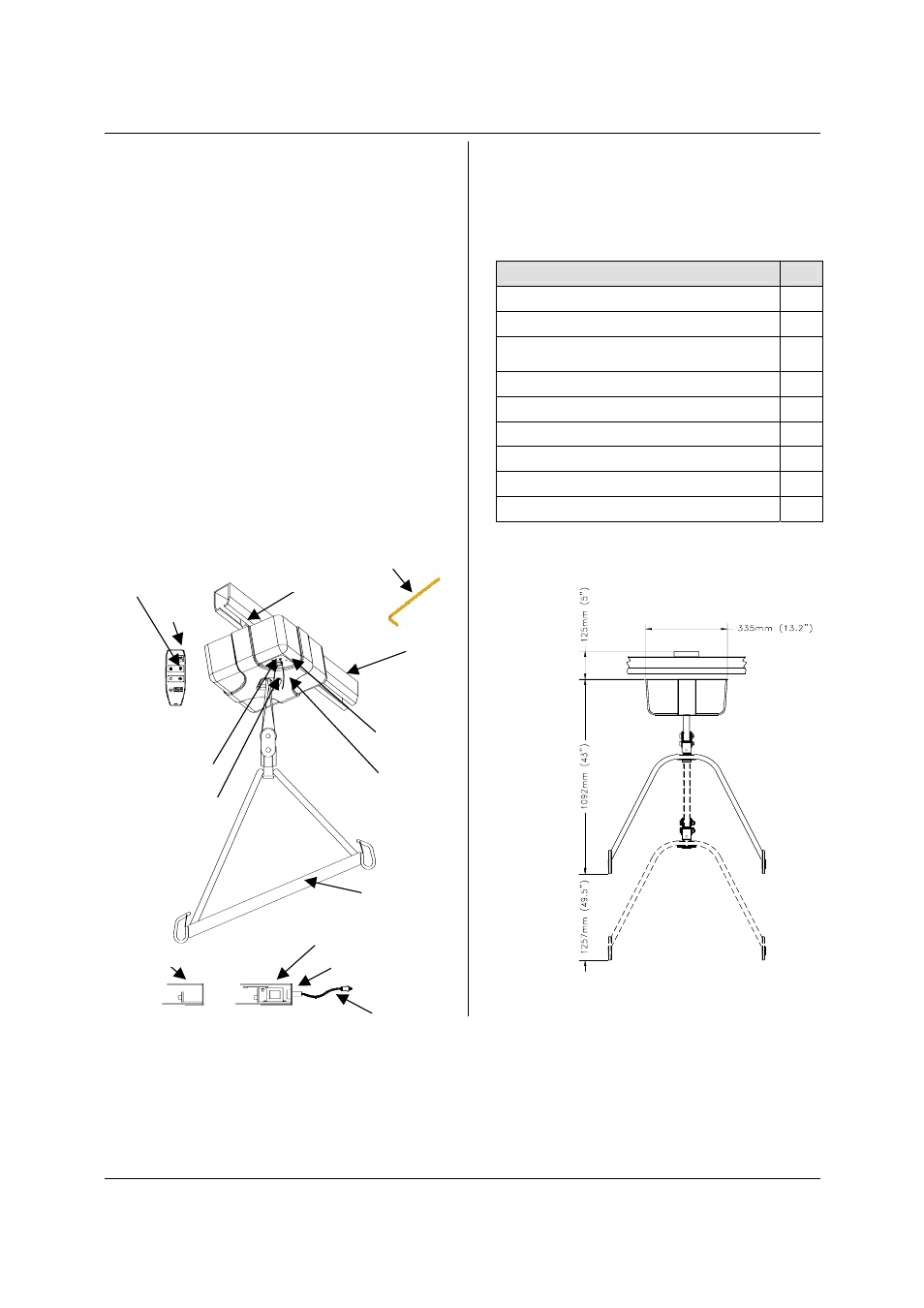

5.2 Parts Description
5.3 What’s Included with the
Voyager 800
5.4 Dimensions
ITEM QTY
Voyager 800 lift 1
Battery (inside unit) 1
Integrated Charger Stopper (Harwired
version for UK market only)
1
Rail Stopper 1
Handset 1
Carry bar 450 kg (1000 lbs.)
1
Power cord 1
4 mm Allen key 1
Instruction manual 1
Power cord
Rail stopper
Fuse magazine
Rail
Trolley
Charging light
Handset
Control
switches
Low-battery
indicator
Carry bar
Emergency stop
Emergency
lowering
4-function
Integrated
charger stopper
