Sunrise Medical Integrated C.G. Tilt P-222SE - Manual (Page 8)

930478 Rev. A
V I I I . W i r i n g D i a g r a m s 15 V I I I . W i r i n g D i a g r a m s
930478 Rev. A
14

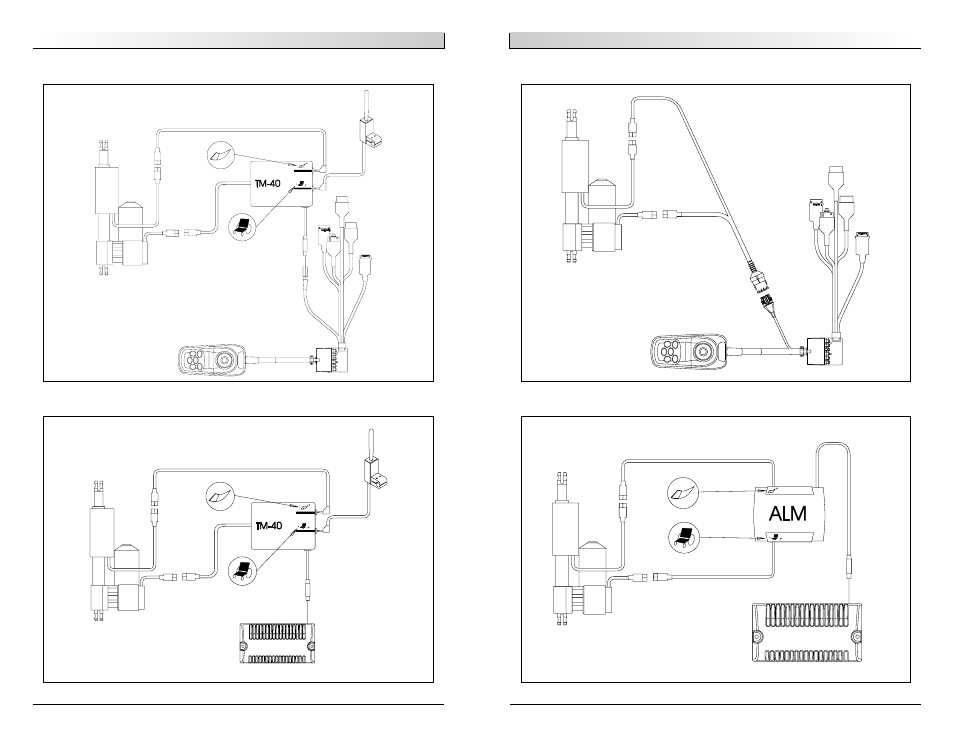

TM40 ACTUATOR CONTROLLER (Independent switch control and Remote Joystick)
TM40 ACTUATOR CONTROLLER (Independent switch control and Integral Joystick)
ALM ACTUATOR CONTROLLER (Through drive control– Remote Joystick)
ALM ACTUATOR CONTROLLER (Through drive control– Integral Joystick)
