Instructions for the Installer
26
5.2 Adjusting for bottled gas

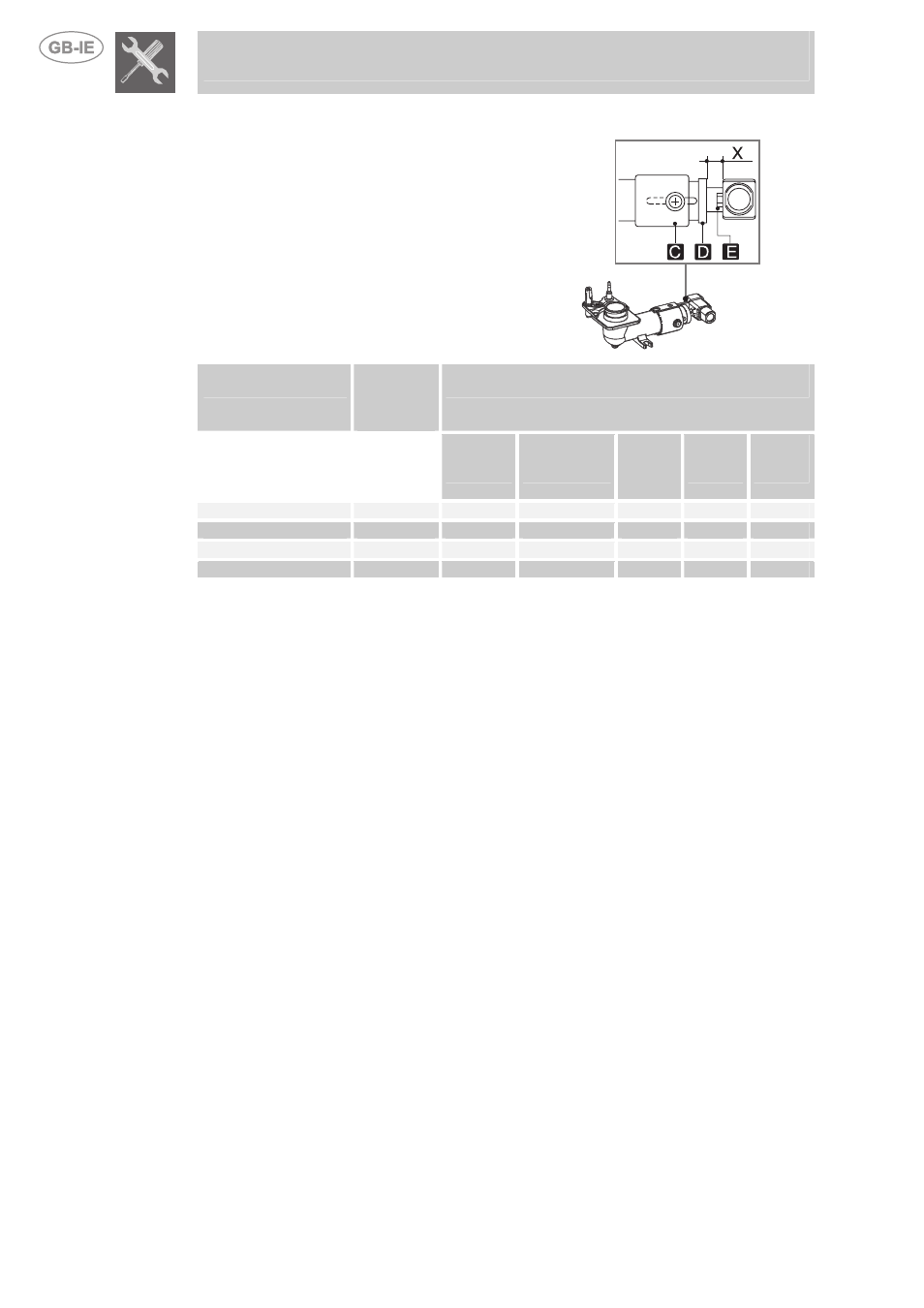

Undo the screw C and push the air regulator
D fully down.
Remove the nozzle E with a 7 mm spanner
and fit the suitable one, following the
instructions in the tables referring to the type
of gas to be used. The nozzle must not be
tightened with a torque of more than 3 Nm.
Regulate the air flow by sliding the
regulator D along until the distance
“X” stated in point "0
Adjusting the primary air flow” is obtained.
Fix the regulator D by tightening the screw C.
Burner
Rated
heat
capacity
(kW)
Bottled gas – G30/G31 30/37 mbar
Nozzle
diameter
1/100 mm
By-pass
mm
1/100
Reduced
heat
capacity
(W)
Flow
rate g/h
G30
Flow
rate g/h
G31
Auxiliary
1.05
48
30
400
76
75
Semi rapid
1.7
62
32
450
124
121
Rapid
80
50
1050
218
214
3.0
Ultra Rapid
4.2
100
63
1600
305
300
