4.0 Maintenance
The Super
® Stripper is virtually maintenance free. The guide shaft castings require
lubrication from time to time. (After approx. 1650 sq. feet). Initially the machine is fully’
lubricated and should not require any additional lubrication for the first 5000 square feet.
The zirc fittings are located on each side (see diagram).
1) To Grease the gearbox on its right side, remove left wheel and bottom cover. Spin
axel/gearbox to expose zirc fitting. (See Diagram 2) Put 2 to 3 pumps to gearbox every
50 to 75 hours. The used grease will flush dirt out of the machine. Replacement
lubrication should be a Lithium based chassis type lube (i.e. auto grease gun pack).

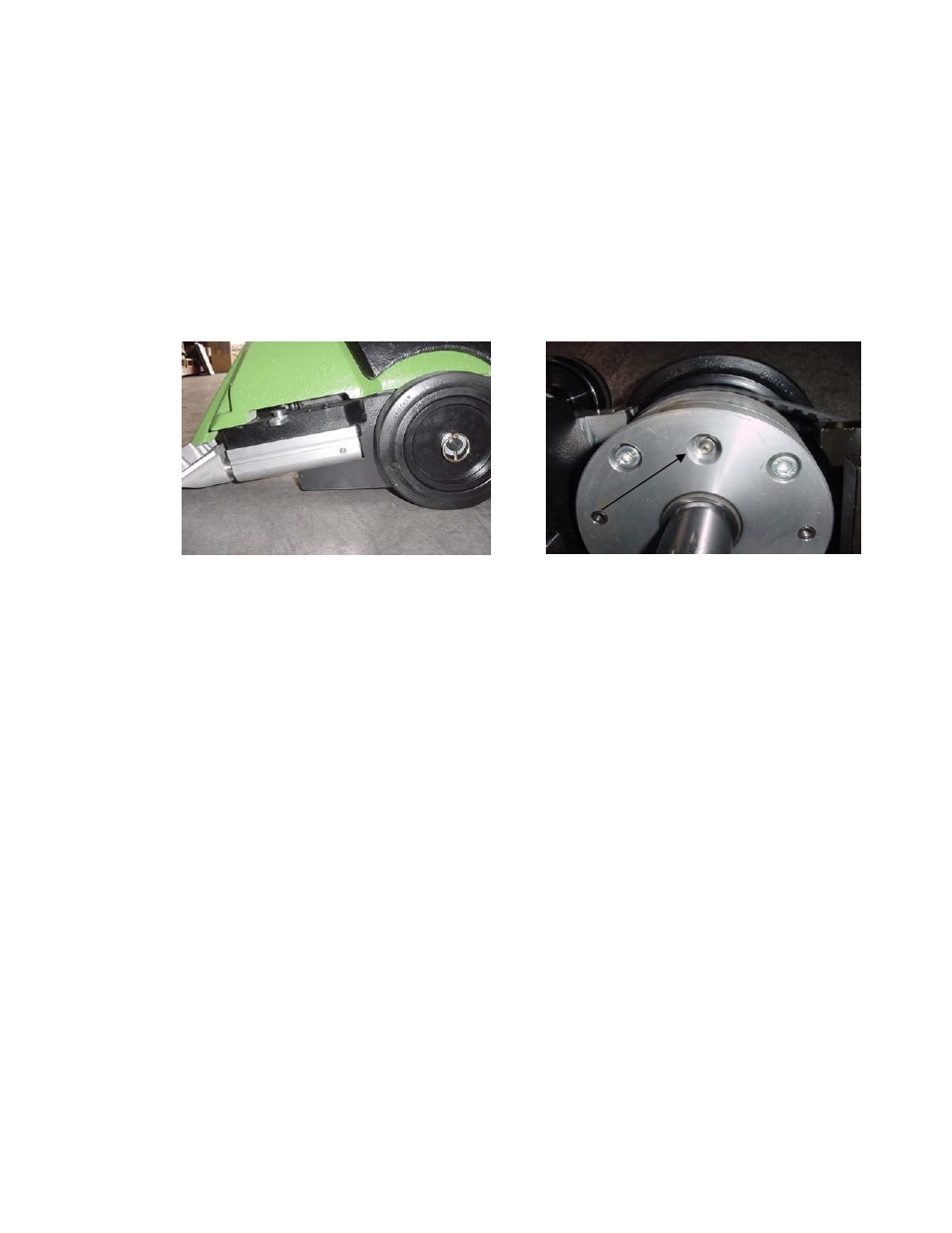

Diagram 1 Diagram 2
The used grease will flush dirt out of the machine. Replacement lubrication should
be a Lithium based chassis type lube (i.e. auto grease gun pack).
CAUTION !! Press maximum 3 to 4 times with the grease gun. Never press too much
grease into the machine. Otherwise the mechanism will be blocked.
Changing the blade
Disconnect the power supply and put on the blade protection before changing the blade.
Use work gloves for your own safety.
-Tip the machine
-Put on the blade protection (enclosed in the tool set)
Warning! Very sharp blade! You may cause injury without using the blade
protection!
-Secure the tipped machine from tilting over
-Clean and loosen screws of the blade mounting
Attention! Set the wrench at a position opposite to the blade to avoid injury.
-replace the blade
Make sure that the sharp bevel of the blade always shows upwards and the blade is
fitting in exactly the position of the old one.
4
