PMA8000-SR Audio Selector Panel and Intercom System
Installation and Operator’s Manual
200-880-0000 Appendix B Rev. 14, Oct. 2008

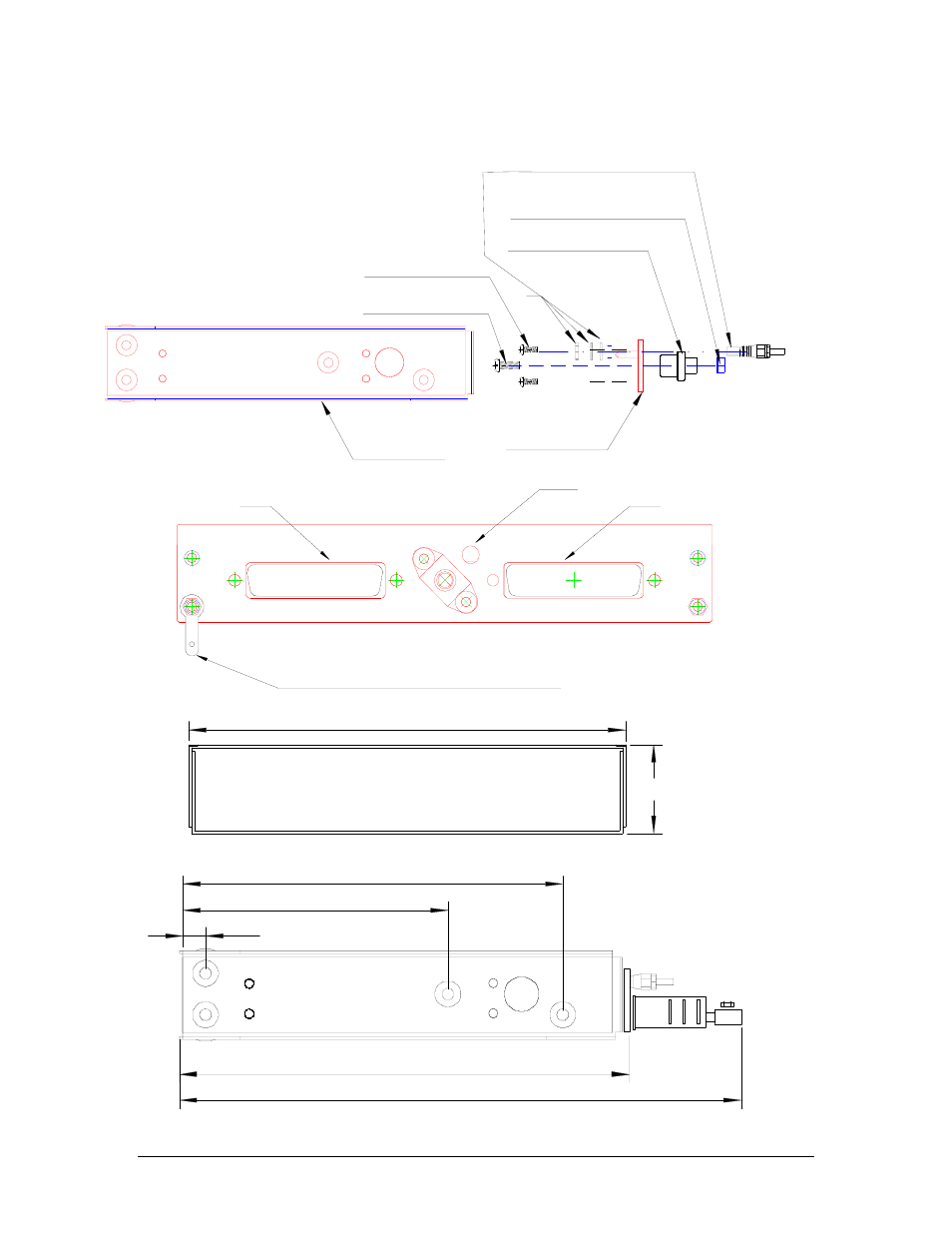

Appendix B – PMA 8000 Installation Drawings
475-013-0001 Lock nut (4 ea)
44-pin connector (2 ea)
Rack back plate
430-880-0050
475-440-0004 (4 ea)
475-440-0007 (4 ea)
Rack
430-880-0040
425-880-3003 RF conn w/ nut
lock and flat washer.
J2 J1
Viewed from Back
15
30
44 1
16
31 15
30
44 1
16
31
Solder Lug (mount as convenient)
RF
Rear plate detail (not to scale)
6.31 in
1.28 in
6.49 in
0.33 in
3.83 in
5.49 in
8.11 in
