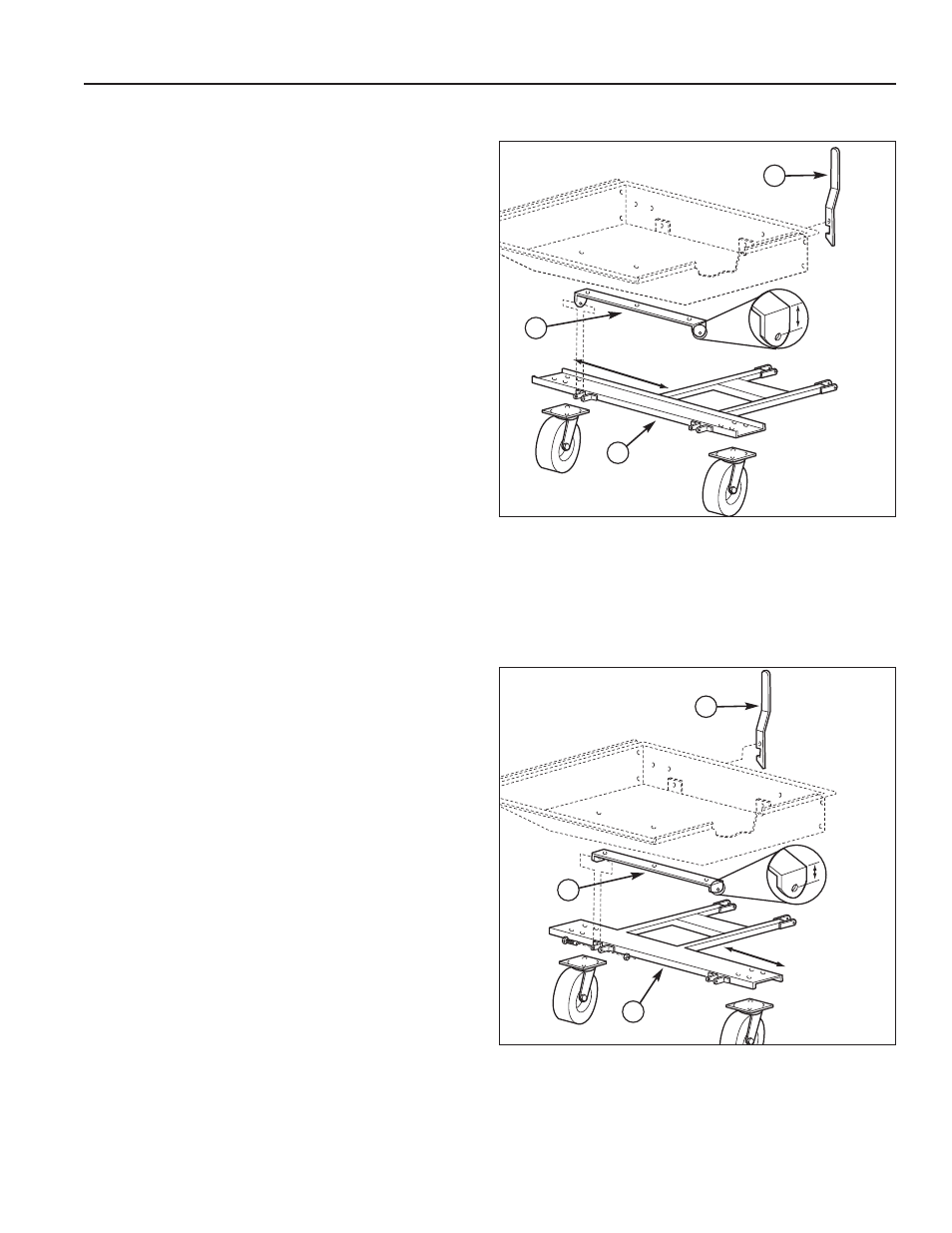

Figure 4. Left Side Discharge
A. Handle, Latch
C. Frame
B. U-Bracket, Hole 1-1/2” from edge
Figure 5. Right Side Discharge
A. Handle, Latch
C. Frame
B. U-Bracket, Hole 3/4” from edge.
Reversible Frame Orientation
For Left Side discharge locate the handle (A, Figure 4)
on the right side of the cart. Use the U-bracket (B) with
the hole located 1-1/2” from the edge. Rotate the frame
(C) so that the offset is on the left hand side.
C
A
B
C
A
For Right Side discharge locate the handle (A, Figure 5)
on the left side of the cart. Use the U-bracket (B) with
the hole located 3/4” from the edge. Rotate the frame
(C) so that the offset is on the right hand side.
