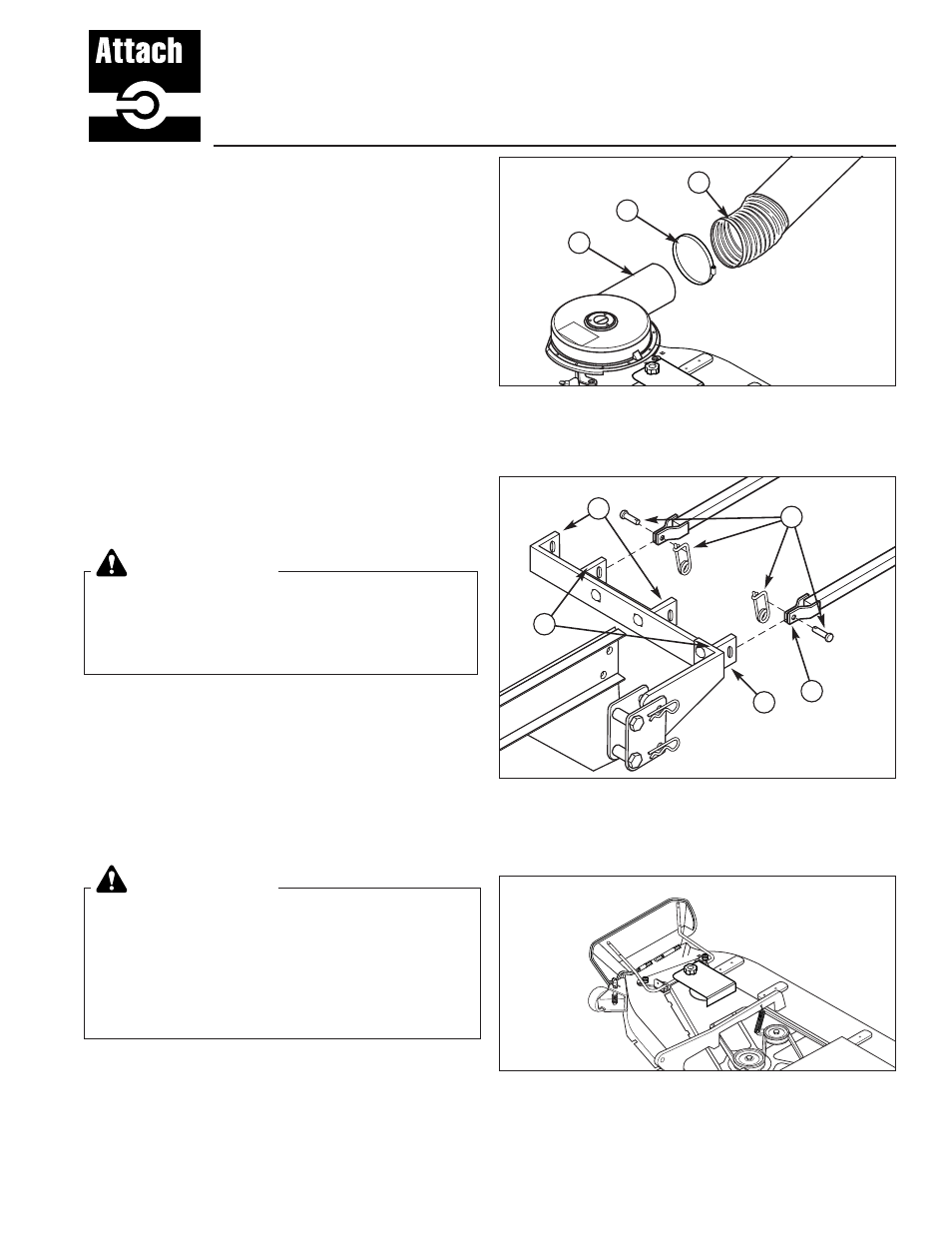

Snapper 1694542 - Manual (Page 12)

11
Normal Removal &
Installation
NORMAL INSTALLATION & REMOVAL
Installation
1. Insert the upper end of the clear tube into the cart
sleeve. Slide the flex hose (C, Figure 20) over the
turbo (A) and secure with the large hose clamp (B).
The hose should overlap the turbo discharge by 2”-
3”.
The clamp screw should be positioned to the inside
as shown to prevent accidental impact and removal
of the clamp.
Check that the upper end of the clear tube is not con-
tacting the top of the collector cover. If necessary,
cut off the clear tube flush with the sleeve (A, Figure
15).
2. Connect the cart frame (A, Figure 21) to the hitch (B)
and install the clevis pins and springs clips (C).
Note: Mounting holes (D) are for left side discharge and
mounting holes (E) are for right hand discharge.
Removal
DETACH THE COLLECTOR CART
1. Disconnect the flex hose (C, Figure 20) from the
turbo discharge (A) by loosening the hose clamp (B).
Store the hose and tube assembly inside the cart.
2. Remove the clevis pins (C, Figure 21) from the cart
frame (A) and separate the cart and hitch (B). Store
the clevis pins and spring clips in the cart frame (A).
REMOVE THE TURBO BLOWER
1. Remove the turbo blower according to the turbo
installation instructions.
2. Be sure the deflector is in proper down position
before using the unit (see Figure 22).
Figure 21. Connect Cart to Hitch (Legacy XL Shown)
A. Cart Frame
D. LH Mounting Holes
B. Hitch E. RH Mounting Holes
C. Clevis Pins and Spring Clips
B
A
C
Figure 20. Discharge Tube Installation
A. Turbo Discharge
C. Hose
B. Clamp
B
A
C
Figure 22. Deflector - Down Position
When the blower assembly is removed from the
mower deck, the deflector must be installed as
described in Operating Without Collection
System.
WARNING
The deflector is spring loaded. When removing
the blower, hold the deflector up. Then allow the
deflector to go down into normal operating
position (see Figure 29).
DO NOT operate the unit without the deflector in
proper mowing position.
WARNING
E
D
