Sony MDS-PC3 - Manual (Page 38)

MDS-PC3
38 38

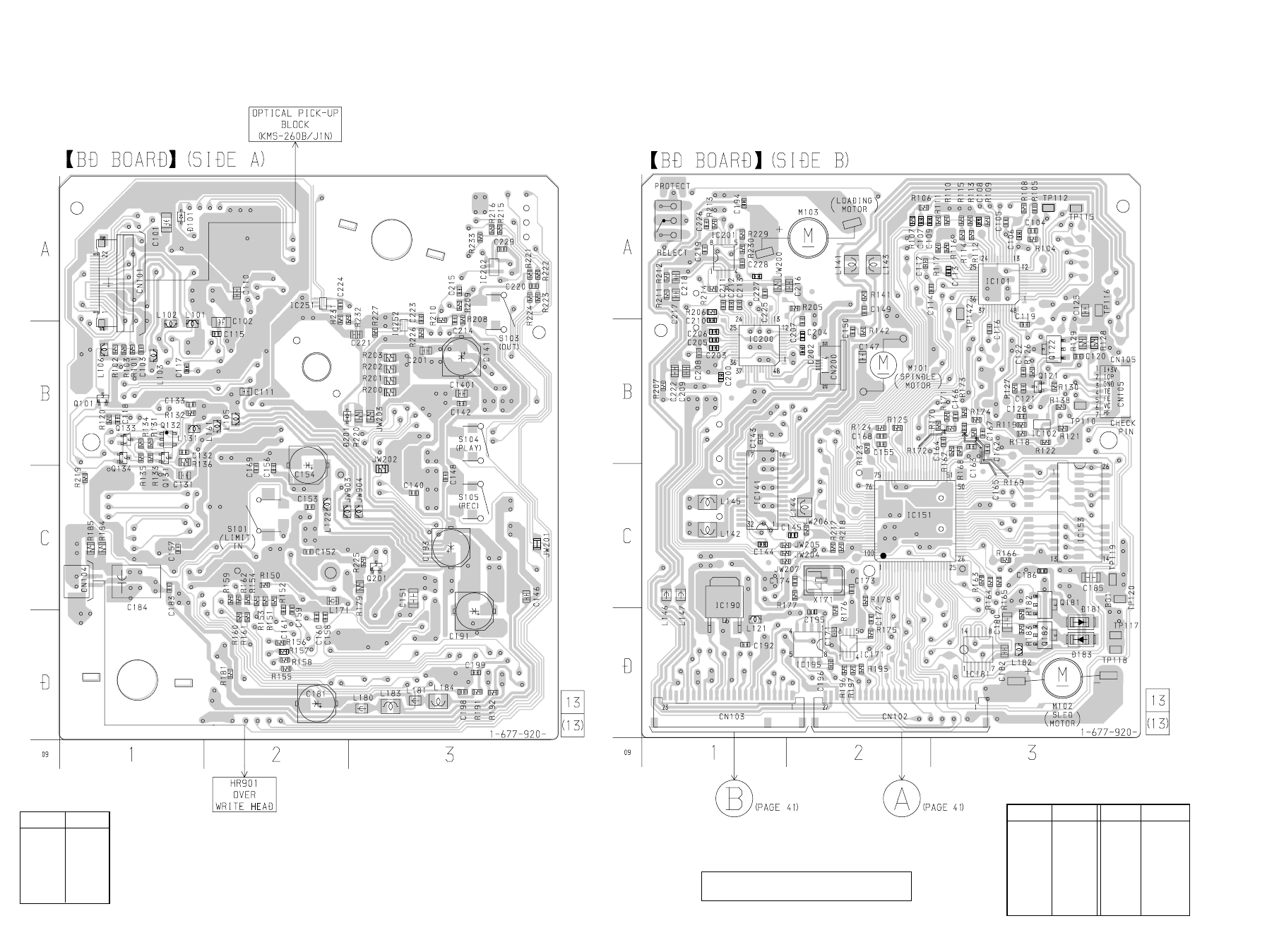

6-2. PRINTED WIRING BOARD – BD SECTION –
Ref. No. Location
D101 A-4
Q101 B-1
Q131 C-1
Q132 B-1
Q133 B-1
Q134 C-1
• Semiconductor
Location
Ref. No. Location
D181 D-3
D183 D-3
IC101 A-3
IC102 B-3
IC141 C-1
IC151 C-2
IC153 C-3
IC171 D-2
• Semiconductor
Location
Ref. No. Location
There are a few cases that the part isn’t mounted in
model is printed on diagram.
IC181 D-3
IC190 D-1
IC195 D-2
Q121 B-3
Q122 B-3
Q181 D-3
Q182 D-3
