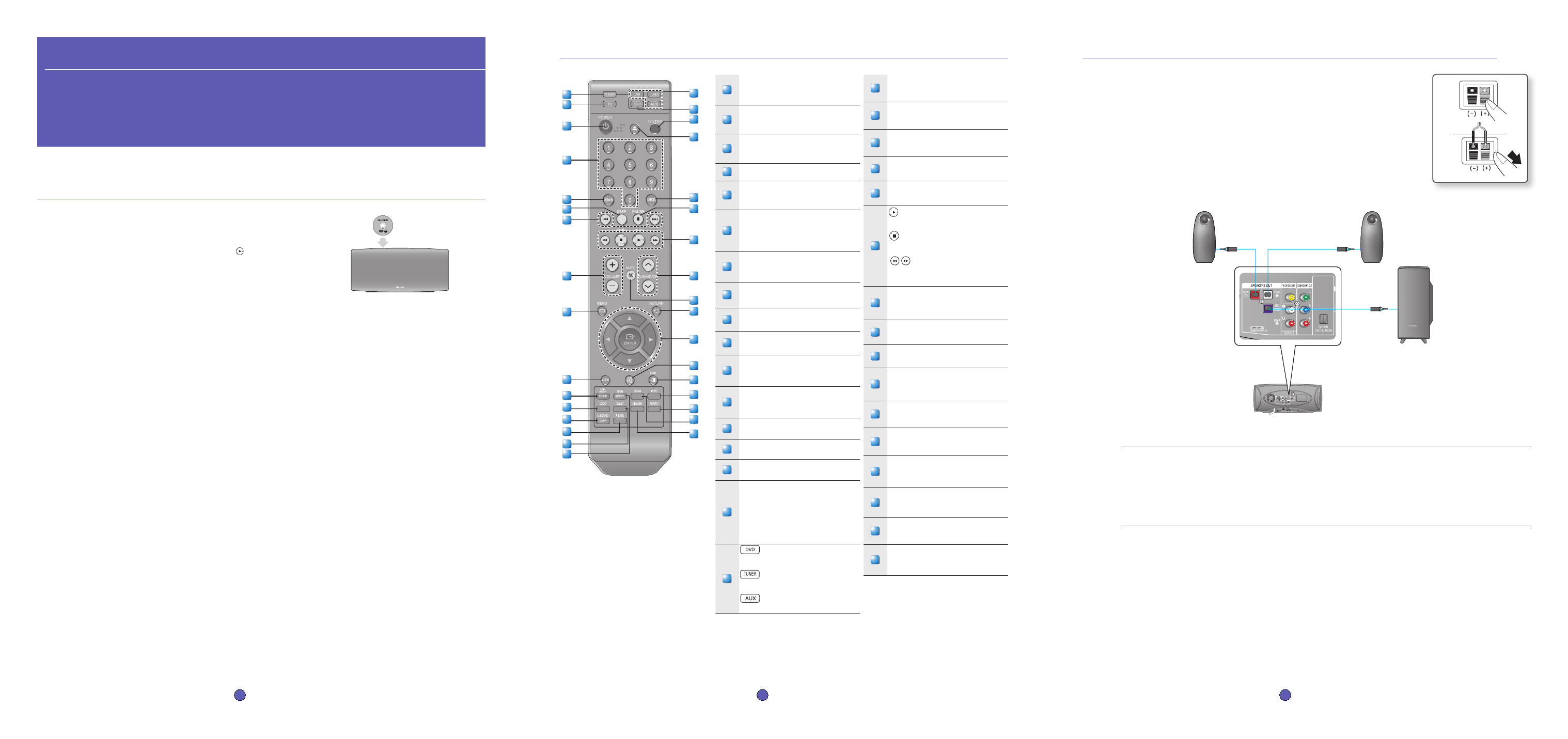

Samsung HT-A100 - Manual

quick start guide
1 disc playback
Load a disc vertically into the Disc Insert Hole.
Place a disc gently into the tray with the disc’s label facing up.
Close the compartment by pressing the PLAY ( ) button.
Playback starts automatically.
1.
•
2.
•
1 disc playback
2 remote control functions
3 connecting the speakers
4 connecting the video out to your tv
5 connecting audio from external components
6 listening to radio
2 remote control functions
18
PORT button
Press to select the USB mode.
19
TV/VIDEO button
Press to select TV in VIDEO mode.
20 EJECT button
21
CANCEL button
Used to cancel a wrong entry.
22
PAUSE button
Press to pause.
23
PLAY button
Press to play or pause.
STOP button
Press to stop.
SEARCH buttons
Fast backward or forward through a song/
scene.
24
TUNING/CH button
Press to select the channel or to tune in radio
broadcasting.
25
MUTE button
Press to mute the sound.
26
RETURN button
Press to return to the previous menu.
27
Cursor/Enter button
Used to select or move up/down, left/right
when setting the menu function.
28
SUBTITLE button
Selects the disc subtitle language.
29
EXIT button
Press to exit the setup screen.
30
INFO button
View or change disc playback information on
screen.
31
REPEAT button
Repeat playback of a chapter, title, group or
track.
32
ZOOM button
Enlarges the picture during disc playback.
33
DIMMER button
The front display brightness will be adjusted.
1
DVD RECEIVER button
You can operate your DVD receiver with the
remote control.
2
TV button
You can operate your Samsung TV with the
remote control.
3
POWER button
Press to turn the Home Theater or your
Samsung TV On/Off.
4 Number (0~9) buttons
5
REMAIN button
For checking the total and remaining time of
a title or chapter being played.
6
STEP button
The picture moves forward one frame each
time the button is pressed during playback.
7
Tuning Preset/CD Skip buttons
Tune in radio broadcasting, skip the song/
scene.
8
VOLUME button
Press + to raise the volume and – to lower it.
9
MENU button
Press to see the menu.
10
AUDIO button
Selects the disc Audio language.
11
TUNER MEMORY, SD/HD button
Press to memorize radio frequencies.
Press to select SD or HD mode.
12
LOGO button
COPY LOGO DATA will be displayed on the
TV screen.
13
V-SOUND(Virtual Sound), V-H/P(Virtual
Headphone) button
14
P.BASS button
Select the level of low tones you desire.
15
SLEEP button
Press to set the sleep off time.
16
SLOW button
Selects three different slow motion playback
speeds.
MO/ST button
You can listen to radio broadcasts in MONO
or STEREO.
17
DVD button
Press to select the DVD mode.
TUNER button
Press to listen to radio broadcasting.
AUX button
Press to select external audio input.
3 connecting the speakers
Press down the terminal tab on the back of the speaker.
Insert the black wire into the black terminal (–) and the red wire into the red (+) terminal, and
then release the tab.
Connect the connecting plugs to the back of the Home Theater.
Make sure the colors of the speaker terminals match the colors of the connecting plugs.
1.
2.
3.
•
Do not let children play with or near the speakers. They could get hurt if a speaker falls.
When connecting the speaker wires to the speakers, make sure that the polarity (+/ –) is correct.
Keep the subwoofer speaker out of reach of children so as to prevent children from inserting their hands or alien substances into the duct
(hole) of the subwoofer speaker.
Do not hang the subwoofer on the wall through the duct (hole).
If you place a speaker near your TV set, screen color may be distorted because of the magnetic fi eld generated by the speaker. If this occurs,
place the speaker away from your TV set.
J




M

Red Black
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
2.1CH Digital
Home Theater System
HT-A100
Subwoofer
Front Speaker (R) Front Speaker (L)
1 - English 2 - English 3 - English
