Southbend SB1017 - Manual (Page 47)

For Machines Mfg. Since 8/09 Model SB1017
-45-
P A R T S

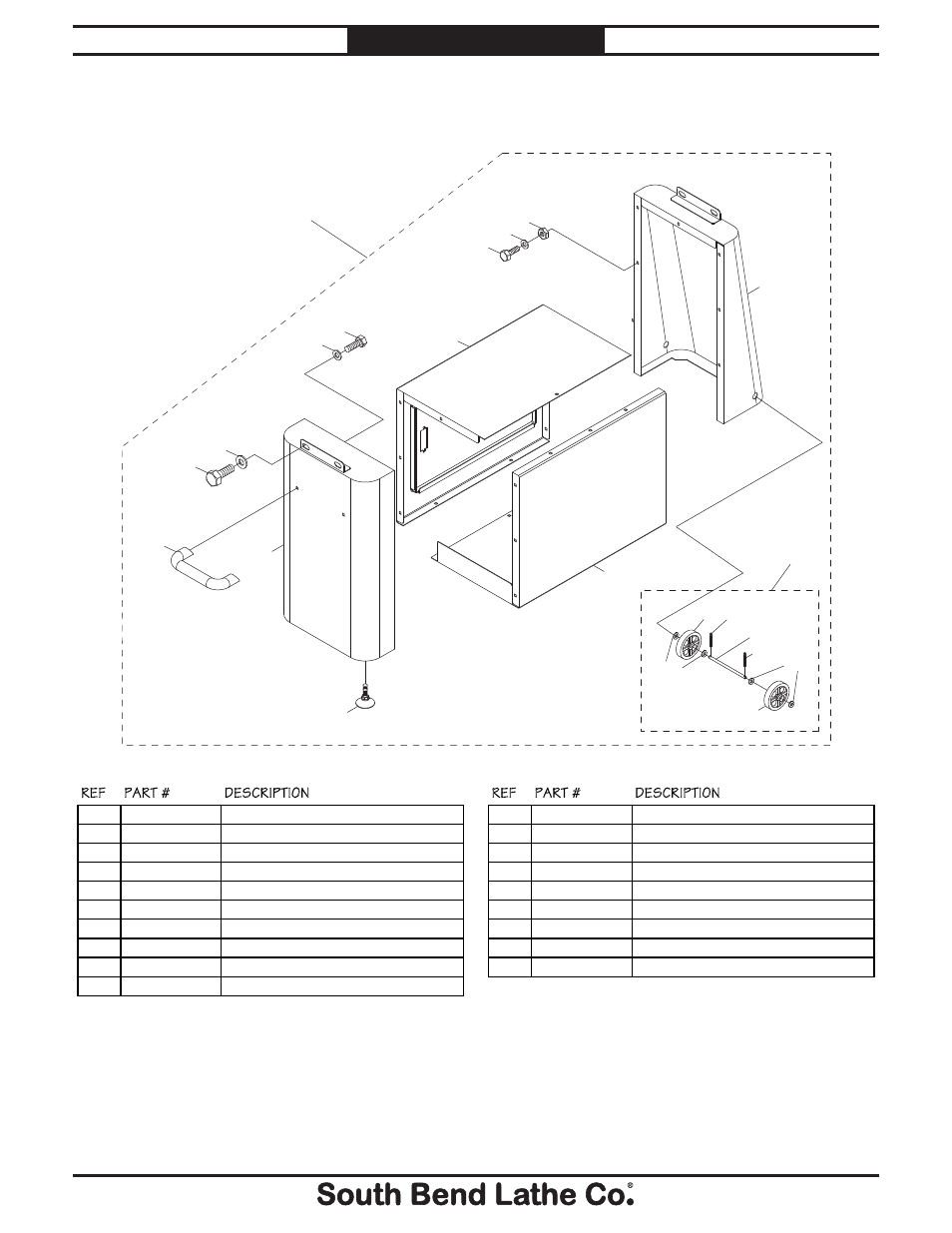

Cabinet Stand
REF PART # DESCRIPTION REF PART # DESCRIPTION
4 PSB1017004 CABINET STAND ASSEMBLY 4-11 PSB1017004-11 FOOT PAD ASSEMBLY
4-1 PSB1017004-1 LEFT PANEL 4-12 PSB1017004-12 LIFTING HANDLE
4-2 PSB1017004-2 RIGHT PANEL 4-13 PB87M HEX BOLT M8-1.25 X 15
4-3 PSB1017004-3 REAR/TOP PANEL ASSEMBLY W/DOOR 4-14 PW01M FLAT WASHER 8MM
4-4 PSB1017004-4 FRONT PANEL 9 PSB1017009 WHEEL ASSEMBLY
4-5 PB87M HEX BOLT M8-1.25 X 15 9-1 PSB1017009-1 WHEEL
4-6 PW01M FLAT WASHER 8MM 9-2 PW14 FLAT WASHER 5/8
4-7 PN03M HEX NUT M8-1.25 9-3 PSB1017009-3 COTTER PIN 1/8 X 1"
4-8 PB01M HEX BOLT M10-1.5 X 30 9-4 PSB1017009-4 WHEEL AXLE
4-9 PW04M FLAT WASHER 10MM
4-1
4-2
4-4
4-3
4-7
4-6
4-5
4-9
4-8
4-13
4-14
4-12
4
4-11
9
9-1
9-2
9-4
9-3
9-2
9-3 9-1
