PARTS
-44-
For Machines Mfg. Since 8/09 Model SB1017 P A R T S

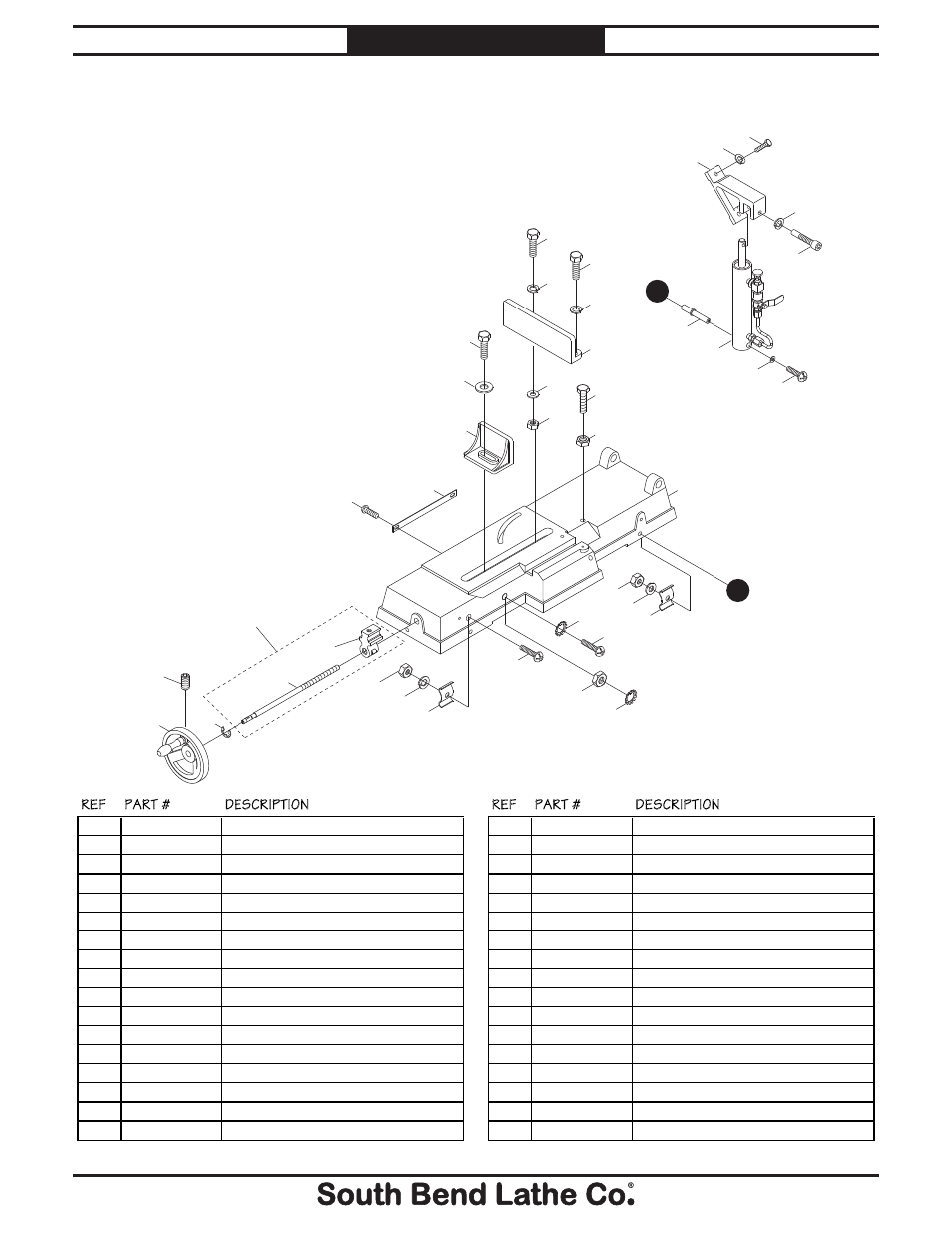

Table
30 28
32-1
32-2
38
39
34
188
35
36
187
67
52
53
122
49
67
31
27
157
155
156
18
22
91
37
28-1
403
404
402
401
410
409
407
18
411
A
22
18
157
91
32
A
REF PART # DESCRIPTION REF PART # DESCRIPTION
18 PLW04 LOCK WASHER 3/8 53 PB38 HEX BOLT 7/16-14 X 2
22 PSB1017022 WIRE CLIP 67 PLW01 LOCK WASHER 5/16
27 PS52 PHLP HD SCR 3/8-16 X 1 91 PN08 HEX NUT 3/8-16
28 PSB1017028 VISE HANDWHEEL ASSEMBLY 122 PN19 HEX NUT 7/16-14
28-1 PSS08 SET SCREW 5/16-18 X 1/2 155 PN07 HEX NUT 10-24
30 PEC03M E-CLIP 10MM 156 PS06 PHLP HD SCR 10-24 X 3/8
31 PB03 HEX BOLT 5/16-18 X 1 157 PTLW01 EXT TOOTH WASHER #10
32 PSB1017032 VISE LEADSCREW W/NUT 187 PW07 FLAT WASHER 5/16
32-1 PSB1017032-1 VISE LEADSCREW 188 PN02 HEX NUT 5/16-18
32-2 PSB1017032-2 VISE LEADSCREW NUT 401 PS06 PHLP HD SCR 10-24 X 3/8
34 PSB1017034 SMALL VISE JAW 402 PW03 FLAT WASHER #10
35 PW02 FLAT WASHER 3/8 403 PSB1017403 HYDRAULIC CYLINDER ASSEMBLY
36 PB24 HEX BOLT 3/8-16 X 1-1/4 404 PSB1017404 CYLINDER PIVOT ROD
37 PSB1017037 MACHINE BASE 407 PSB1017407 CYLINDER BRACKET CAP SCREW
38 PS06 PHLP HD SCR 10-24 X 3/8 409 PSB1017409 CYLINDER BRACKET
39 PSB1017039 VISE SCALE 410 PLW02 LOCK WASHER 1/4
49 PSB1017049 LARGE VISE JAW 411 PB31 HEX BOLT 1/4-20 X 1
