To install the tool rest, do these steps:
1. Turn the release lever on the tool rest base so it does
not interfere with assembly.
2. Thread the tool rest lock handles into the tool rest
base ( Figure 4) until the threaded ends of the handles
are flush with the inside of the shaft.
3. Insert the tool rest into the shaft and turn the handles
to lock it as shown in Figure 5.
4. Install the optional bed extension, Model W1753
( Page 25). Refer to the instruction sheet included
with the bed extension.
Assembly

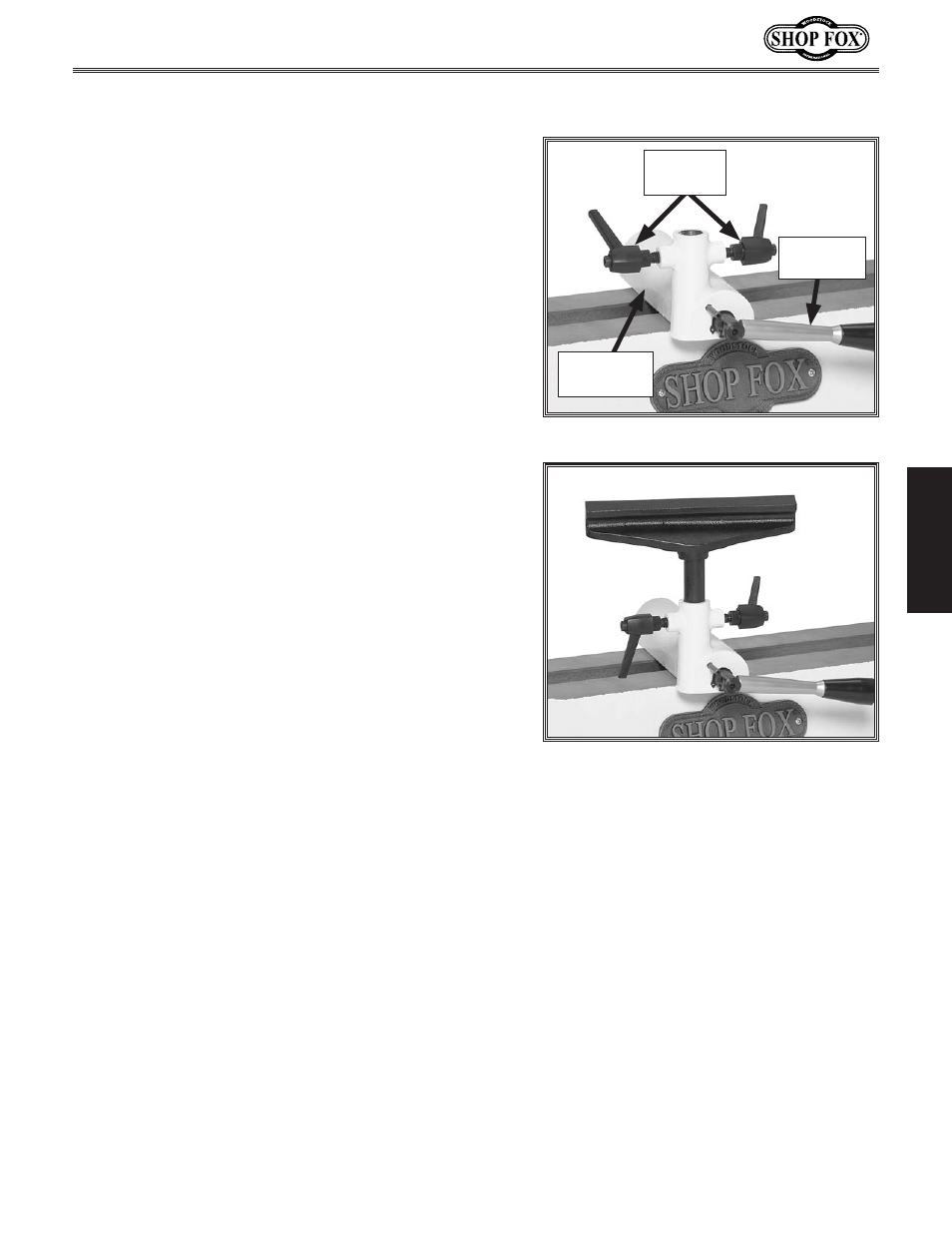

Figure 5. Tool rest installed.
Figure 4. Tool rest lock handles installed.
Tool Rest
Base
Lock
Handles
Release
Lever
