ADJUSTMENT
Lens adjustment

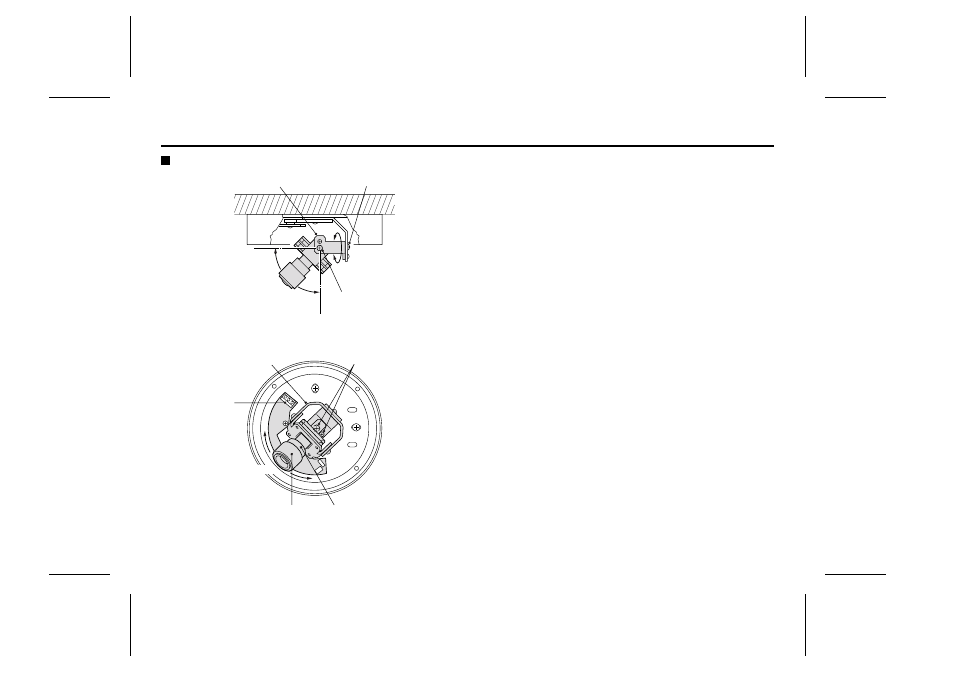

(I) Horizontal & Vertical Adjustment Screw
(J) Tilt Adjustment Screw
(K) Pan Adjustment Screw
(L) Zoom ring
To adjust the zoom, loosen the zoom ring knob and then turn the
ring to the T side (to enlarge objects) or to the W side (to reduce
objects). Then tighten the knob.
(M) Focus ring
To adjust the focus, loosen the focus ring knob, turn the focus ring
to the
∞ side or to the N side to make the adjustment, and then
tighten the knob.
Angular Limit
Gimbal Bracket
Gimbal Bracket
INPUT POWER
Horizontal & Vertical
Adjustment Screw
Horizontal &
Vertical
Adjustment
Adjustment Screws
for Camera Rotation
Tilt Adjustment Screws
Tilt
Camera Lens -
Perpendicular Direction
Camera Rotation
(I)
(J)
(K)
(M) (L)
