Page 12 Silex Antenna Information
Revision A-2
Table 1 Electrical Performance
Parameter Value
Impedance 50 ohms
Frequency Range 1 to 6 GHz
Working Voltage 500 VAC (rms) maximum
Dielectric Withstanding Voltage 1000 VAC (rms) maximum
Insulator Resistance 1000 megohms minimum
Antenna Drawings and Specifications

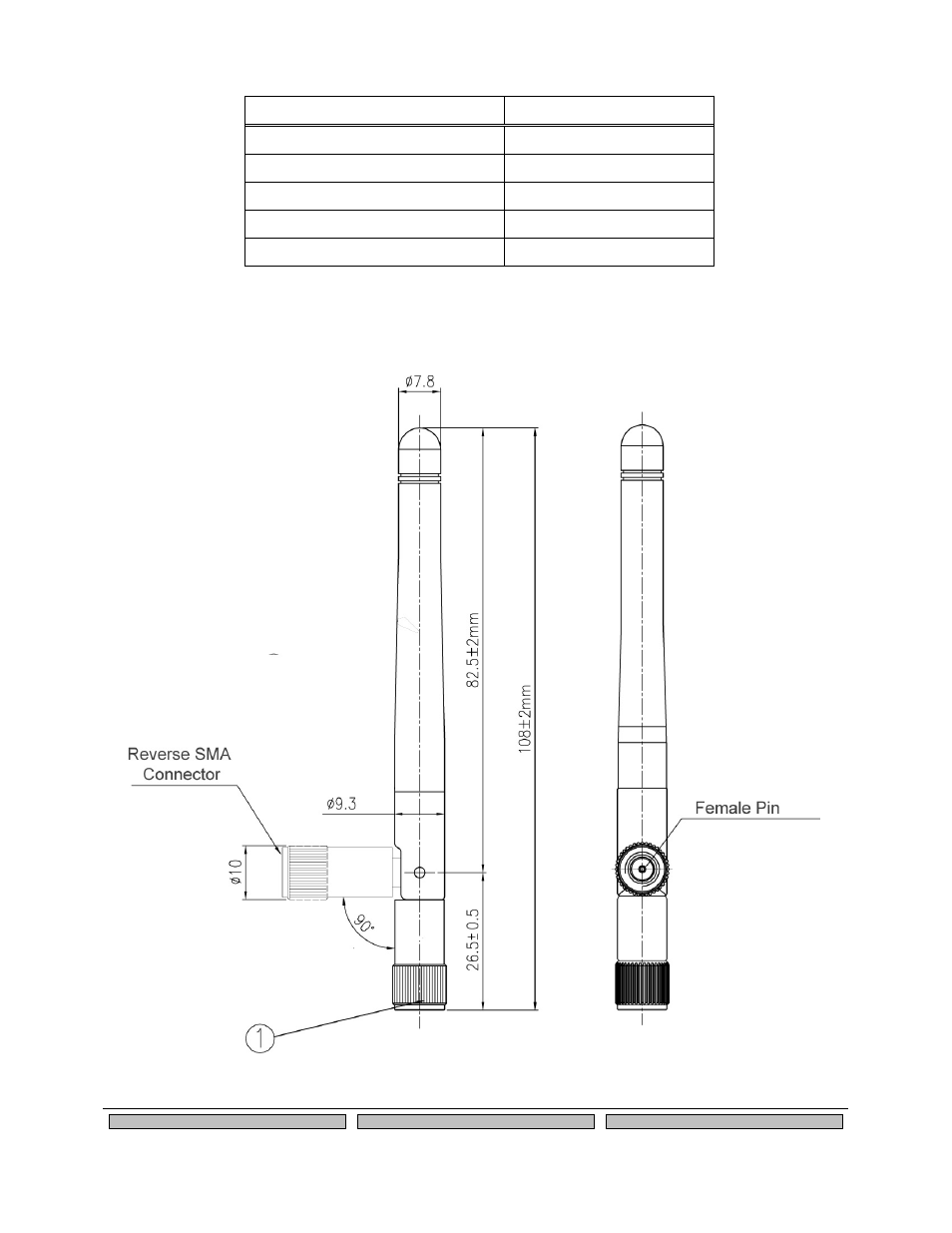

Figure 28 Antenna Mechanical Drawing
