Page 10 Silex Installation
Revision A-2

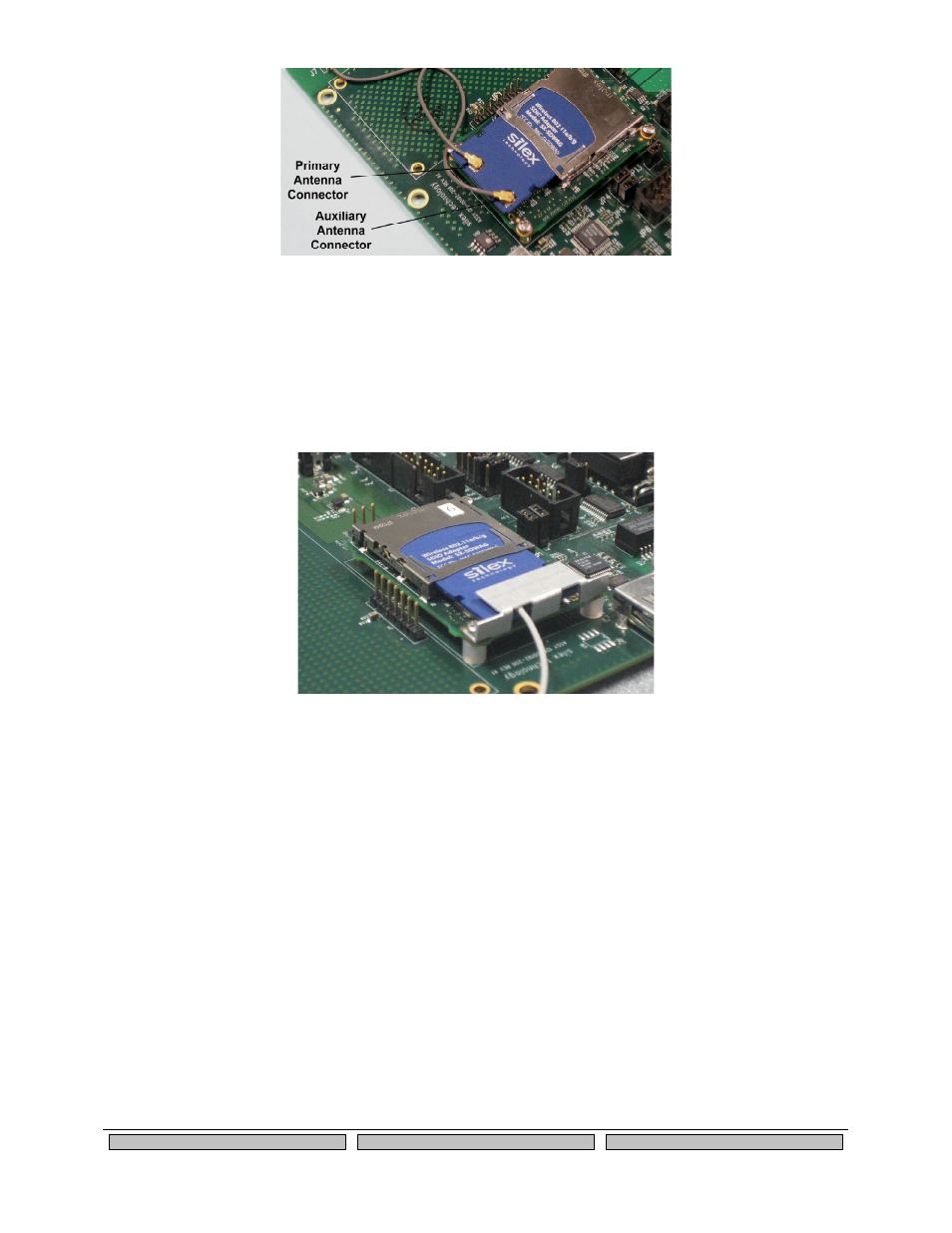

Figure 2 Connecting the Antenna Cable(s) to the SX-SDWAG
4. If your device is subject to significant vibration or other forces, Silex recommends the use of a
retaining bracket to prevent the accidental ejection of the card. This bracket can be the Silex 150-
00192-100 retaining bracket (see figure 3) or an equivalent custom-made bracket.
Figure 3 Securing the SX-SDWAG with Optional Bracket
5. Connect the other end of the cable(s) to the antenna(s).
