To adjust the Custom-Cut Baffle height:
1. Place the cutter deck in the transport position.
2. Remove the hardware securing the Custom-Cut
Baffle to the cutter deck. (See Figure 6.7).
-NOTE-
Hardware location used in the illustrations are
for reference only. Location of hardware may
vary depending on cutter deck size.

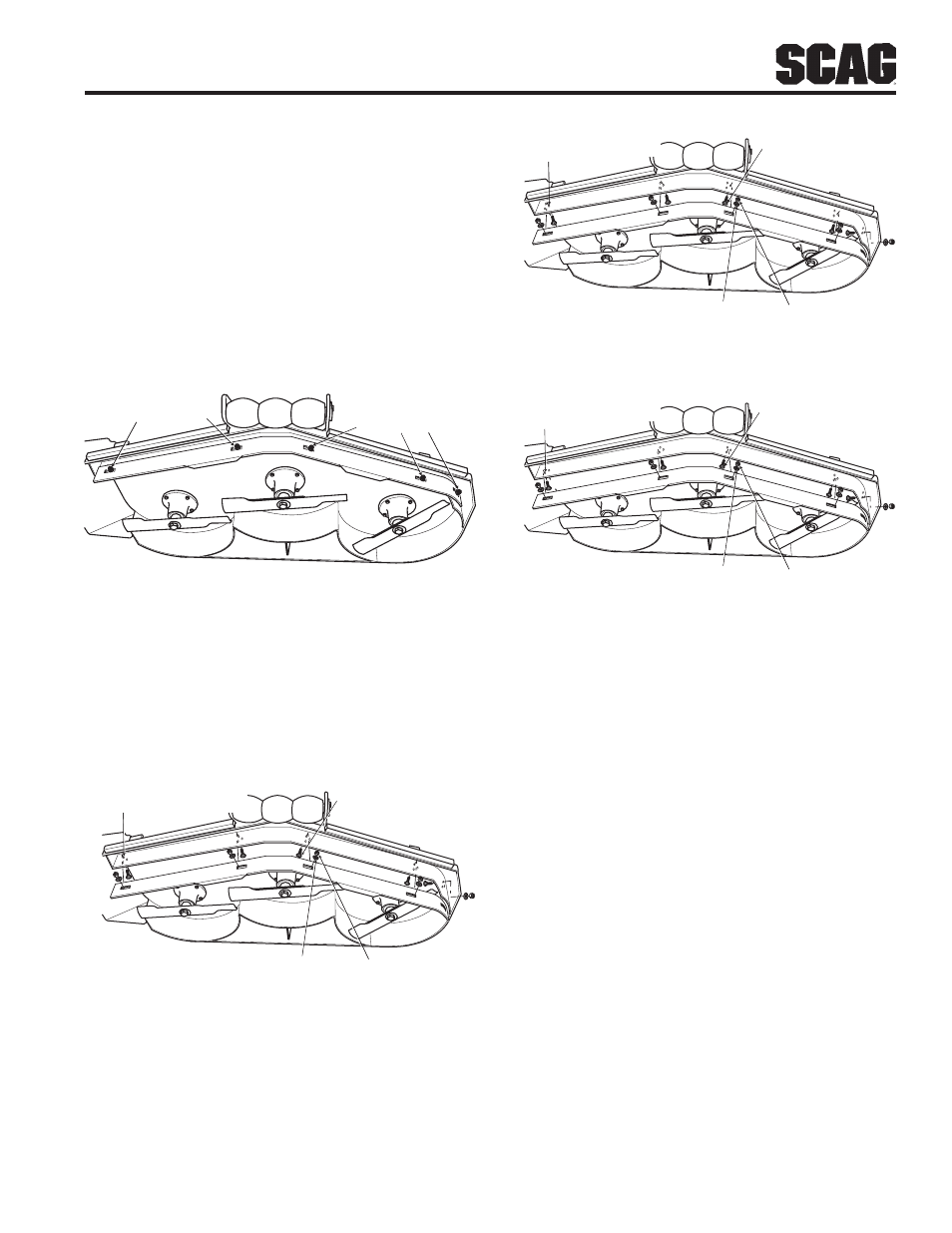

Figure 6-7. Custom-Cut Baffle
3. Move the Custom-Cut Baffle to desired position.
(See Figures 6.9 through 6.11 for position).
4. Reinstall the mounting hardware as shown. (See
Figures 6.10 though 6.11). Torque hardware to
39ft.lbs.
Figure 6-8. 3" Custom-Cut Baffle Position
Figure 6-10. 4" Custom-Cut Baffle Position
Figure 6-9. 3-1/2" Custom-Cut Baffle Position
2004 CCB
MOUNTING
HARDWARE
MOUNTING
HARDWARE
2004 CCB - 3" Setting
CARRIAGE BOLT
TOP SET OF HOLES
FOR 3" SETTING
FLATWASHER
ELASTIC STOP
NUT
2004 CCB - 3-1/2" Setting
CARRIAGE BOLT
MIDDLE SET OF HOLES
FOR 3-1/2" SETTING
FLATWASHER
ELASTIC STOP
NUT
2004 CCB - 4" Setting
CARRIAGE BOLT
BOTTOM SET OF HOLES
FOR 4" SETTING
FLATWASHER
ELASTIC STOP
NUT
