PAGE 14 — STOW G-4.5R A.C. GENERATOR— OPERATION & PARTS MANUAL — REV. #3 (03/13/06)
OPERATION AND SAFETY DECALS (S/N 5498030 AND BELOW)
Machine Safety Decals
The G-4.5R portable generator is equipped with a number of safety decals (Figures 2A and 2B). These decals are provided for
operator safety and maintenance information. The illustration below shows these decals as they appear on the machine. Should any
of these decals become unreadable, replacements can be obtained from your dealer.

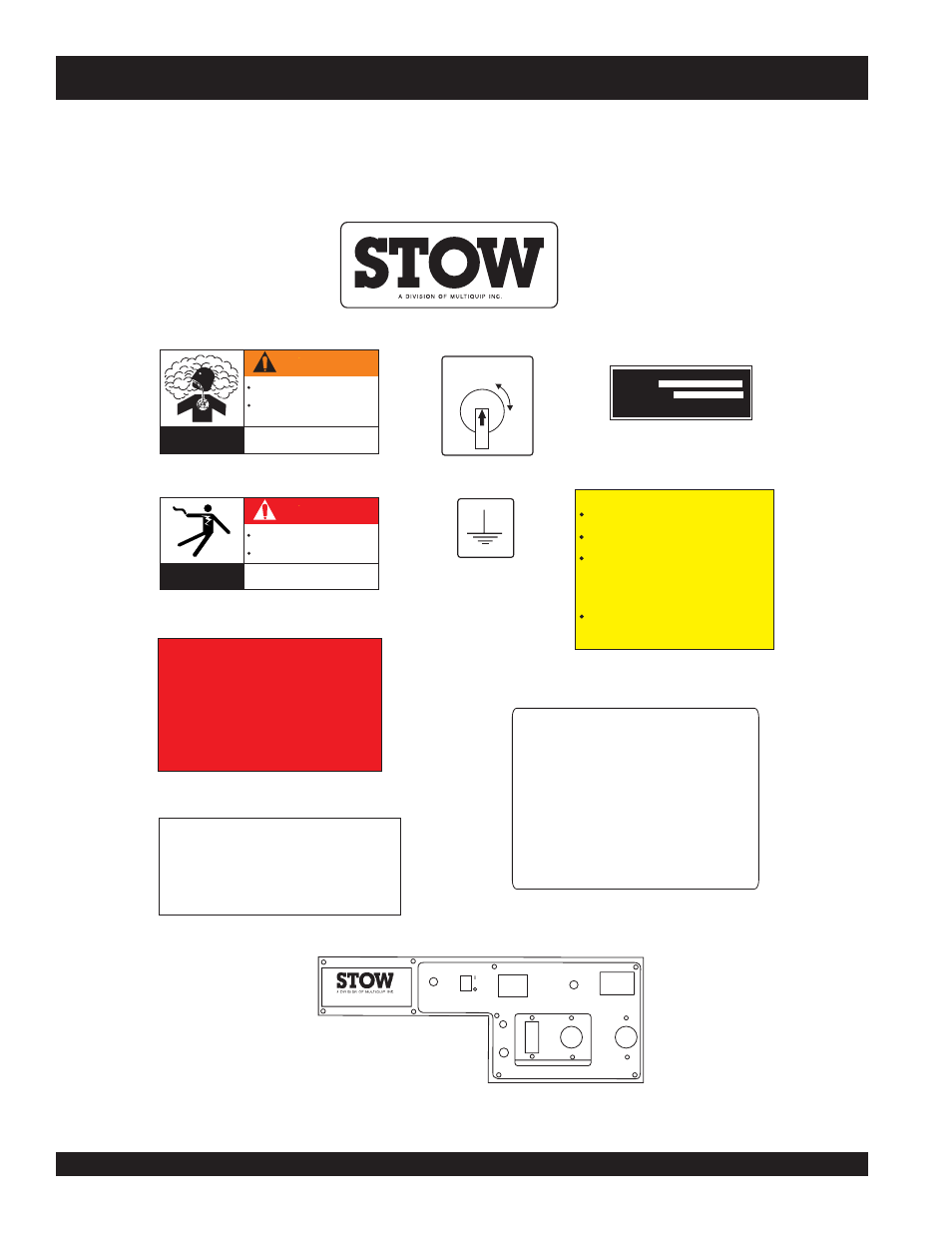

Figure 2A. Operation and Safety Decals (S/N 5498030 and Below)
Before connecting this generator to any building’s
electrical system, a licensed electrician must install
an isolation (transfer) switch.
Serious injury or death may result without this
transfer switch.
WARNING!
P/N 0820610404
CONTACT
STOW PARTS DEPT.
MODEL
SERIAL NO.
Only qualified personnel should
install, use or service this
equipment.
DANGEROUS
GAS
S-4984
WARNING
Only operate machine in well ventilated
areas.
DO NOT inhale exhaust gases.
Only qualified personnel should
install, use or service this
equipment.
DANGEROUS
GAS
S-4985
DANGER
Do not touch output terminals or
internal wiring while unit is operating.
Turn off power before servicing.
Only qualified personnel should
install, use or service this
equipment.
P/N 8700611904
P/N 8700611804
ON
ON
S-3704
P/N 1980680004
FUEL COCK
CAUTION
OPERATE AT
3600 RPM ONLY
( )
FULL THROTTLE
DAMAGE MAY RESULT IF
OPERATED AT LOWER SPEEDS
P/N 7900636004
P/N 0800628504
S-1123
P/N 7900638204
1. Before starting check the oil and fuel level.
2. Switch the circuit breaker to the “OFF” position.
3. Open the fuel valve.
4. Pull the choke knob.
5. Turn the operation switch to the "RUN" position and push.
6. Pull the recoil starter.
7. After the engine starts, gradually push in the choke valve.
8. Run the generator for 3-5 minutes without load.
9. Check for any abnormal noise or smell.
10. Switch the circuit breaker to the “ON” position.
11. When stopping, remove the load and allow it to continue to
run for 2-3 minutes before stopping engine.
12. Turn the operation switch to the "STOP" position.
13. After the engine completely stops. Close the fuel valve.
OPERATING INSTRUCTIONS
S-4607
READ OWNER’S SERVICE MANUAL BEFORE OPERATING
OR SERVICING THIS MACHINE.
ALWAYS KEEP UNAUTHORIZED, INEXPERIENCED,
UNTRAINED PEOPLE AWAY FROM THIS MACHINE.
MAKE SURE ALL SAFETY DEVICES ARE OPERNATIONAL
BEFORE THIS MACHINE IS STARTED. MAKE SURE ENGINE
IS TURNED OFF AND SPARK PLUG WIRE DISCONNECTED
BEFORE SERVICING THE MACHINE OR COMING IN
CONTACT WITH ANY MOVING PART. IF EQUIPMENT IS
POWERED BY AN ELECTRIC MOTOR, DISCONNECT
ELECTRICAL PLUG.
NEVER LEAVE MACHINE UNATTENDED WHEN OPERATING
ALWAYS STOP ENGINE AND ALLOW ENGINE TO COOL
BEFORE ADDING FUEL OR OIL.
DCS01
CAUTION!
P/N 0820610304
P/N A3512100502
P/N A3562000003
IDLE
CONTROL OPERATION
SWITCH
240/120V
FULL POWER
SWITCH
120V
AC VOLTMETER AC CIRCUIT
BREAKER
RUN
STOP
120V
240V
G-4.5R
OIL
ALARM
GFCI
GROUND
