airHaul™ Nexus User Guide

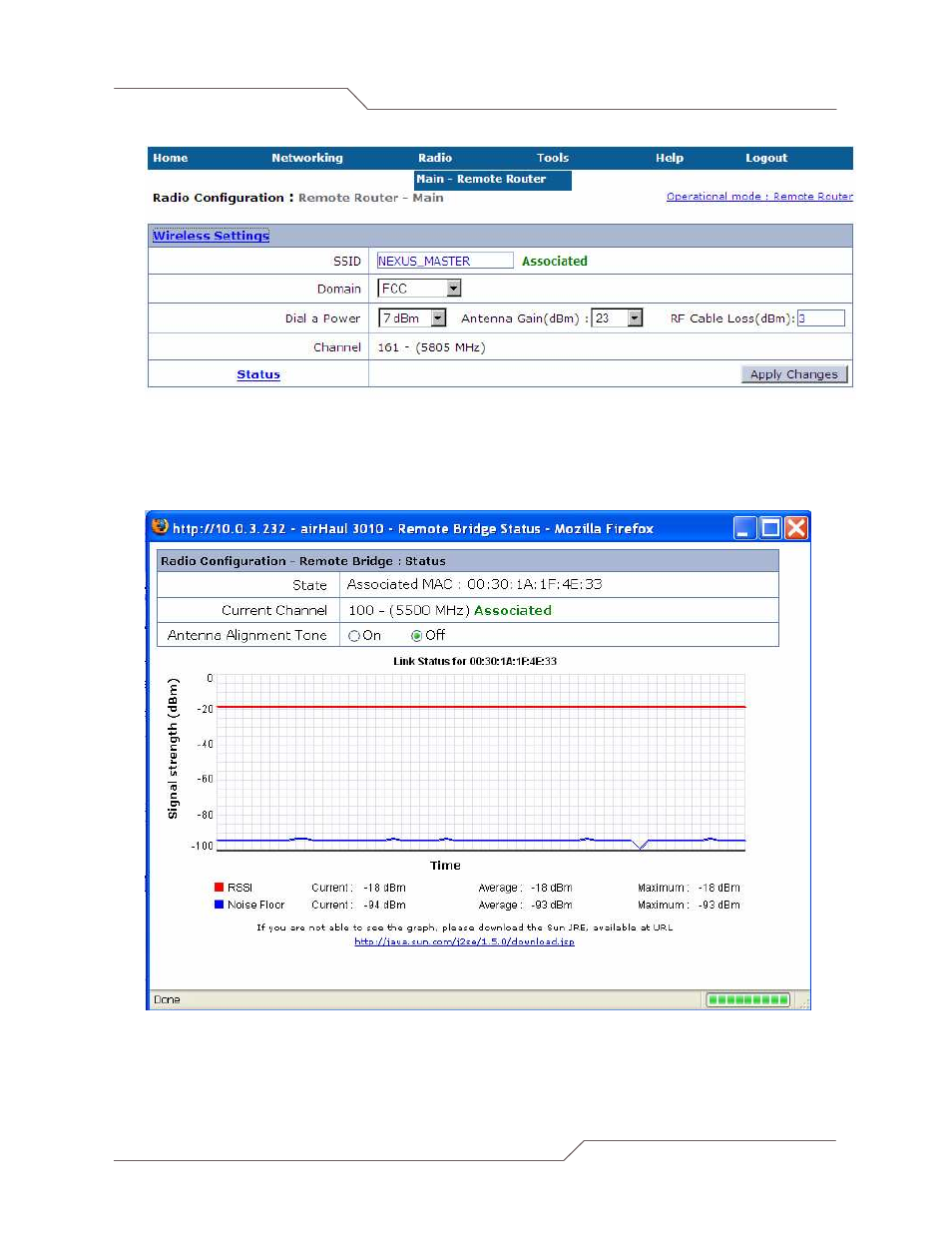

Figure 2-25 Remote Router Wireless Association Settings
Click on ‘Status’ to view the association link-status graph.
Figure 2-26 Link Status
Noise Floor is the measure of the signal created from the sum of all the noise sources and unwanted
signals within a measurement system.
