GoldMike MK2

7

Again, while the GoldMike MK2’s housing is EMV-proof and
protects against HF-interference, placement of the unit is very
important since it amplifies microphone signals as well as other
unwanted signals. Before connecting the GoldMike MK2 or any
other equipment turn off all power.

IMPORTANT: Adjust the voltage setting on the back so that it
corresponds with your local power conditions.

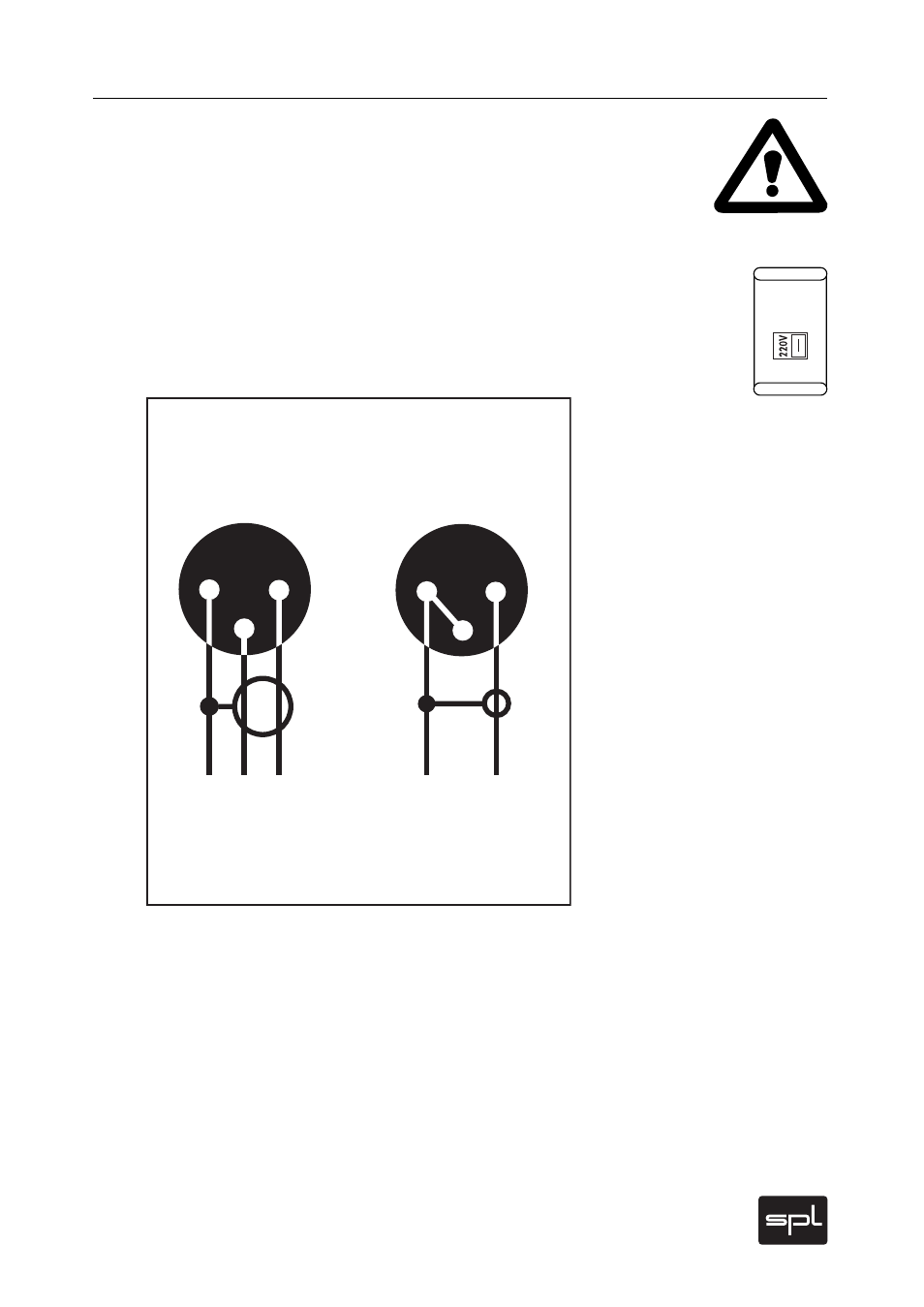

The following graph shows the correct wiring for connecting
unbalanced signals to the balanced XLR connectors:

The Line Input connector is designed for unbalanced signals
only.

The TRS output connectors (see “Outputs“ on page 9) can be
operated both with balanced and unbalanced wiring. Simply
use a mono 1/4" plug for unbalanced operation.

Rear Panel/Connections

General Advices

220 – 240 V~50 Hz

110 – 120 V~60 Hz

VOLTAGE

VOLTAGE

Output

balanced

unbalanced

1=GND
2 =cold (+)
3 =hot (-)

1

2

3

1

2

3
