Page 20
2-9
Installation and Connection
2-9

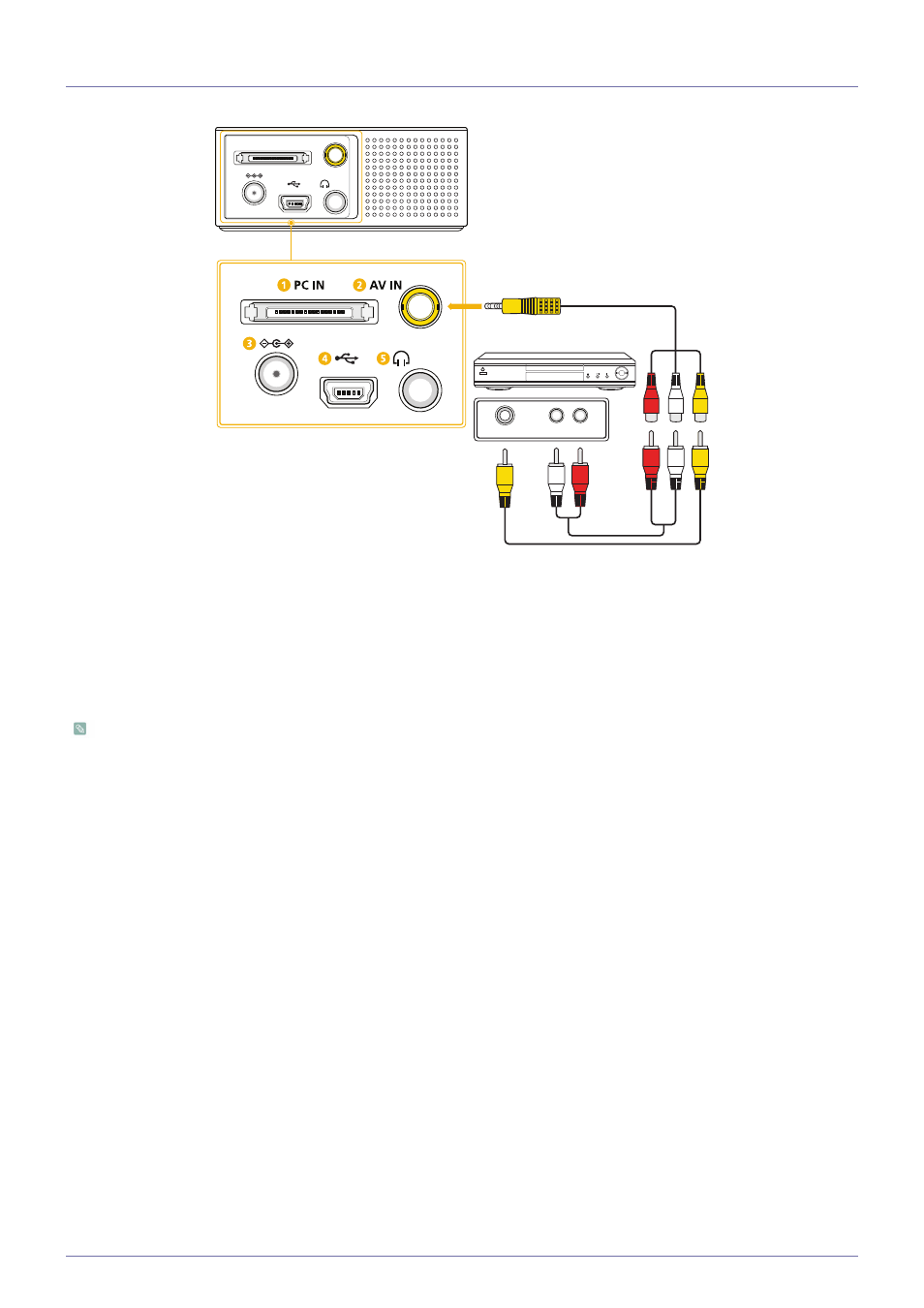

Connecting to an AV Device
Make sure that the AV device and your projector are turned off.
1. Insert the 3RCA gender adaptor into the [AV IN] port on the back of the projector.
2. Connect a video cable and audio cable to the 3RCA gender adaptor.
Refer to "AV Timing (VIDEO)" in the "Supported Display Modes" section for information on supported input signals.
3. Connect the video cable to the VIDEO OUT port on the AV device.
Connect the audio cable to the AUDIO OUT port on the AV device.
Video and audio cables are sold separately.
AUDIO OUT
VIDEO OUT
PC IN
AV IN
