Page 4

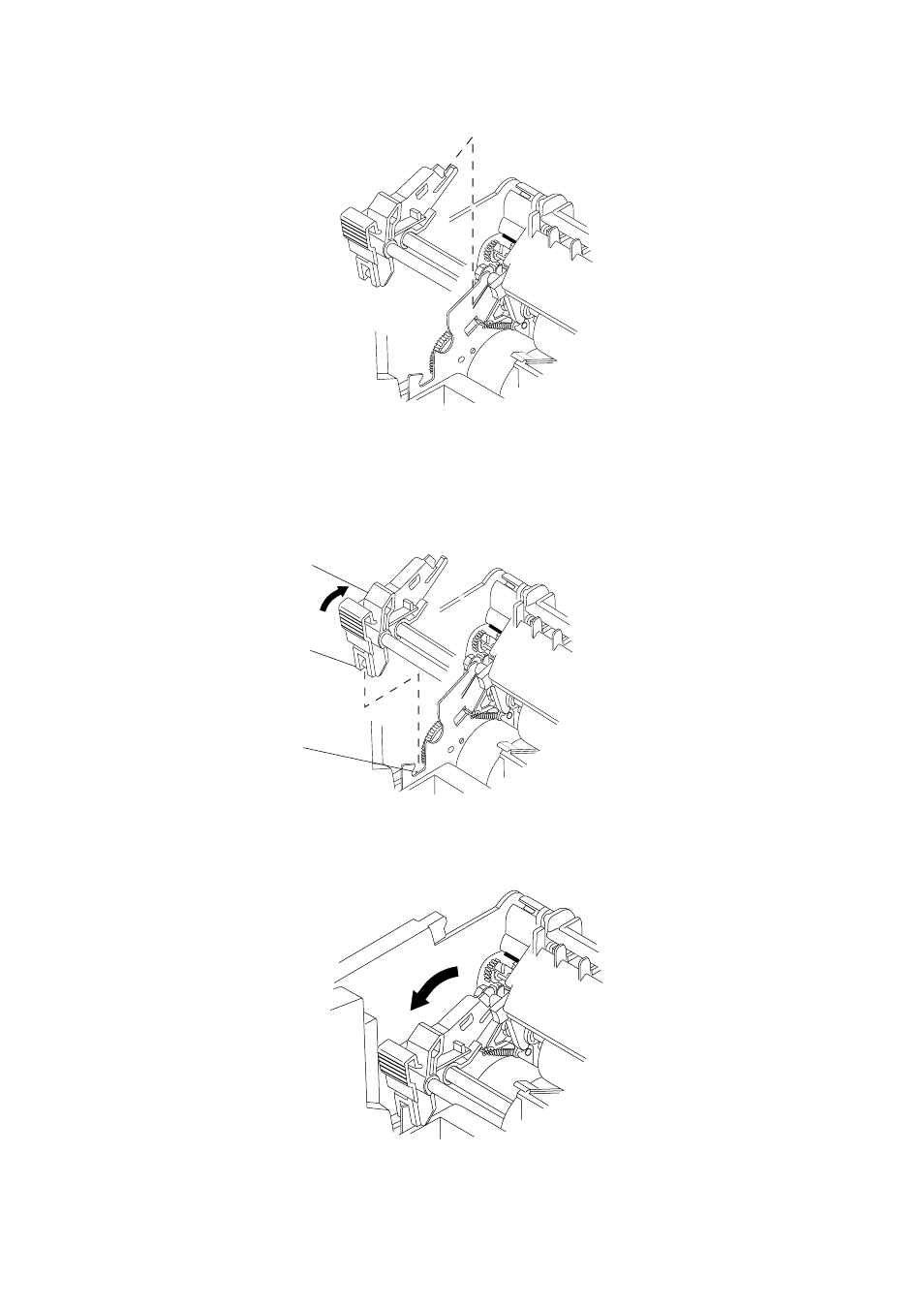

• Hook the slots in the end pieces over the shaft just behind and above the platen roller.
As seen from behind the printer
• Using your forefinger and thumb squeeze the end piece levers against the rear part of the
end pieces. Rotate the tractor feed unit downwards until the bottom of the levers fit
snugly into the indentations in the metal plate inside the printer body.
As seen from behind the printer
As seen from behind the printer
End piece
Bottom of lever
Indentation in
metal plate
