CAMERA INSTALLATION INTERNAL COMPONENTS

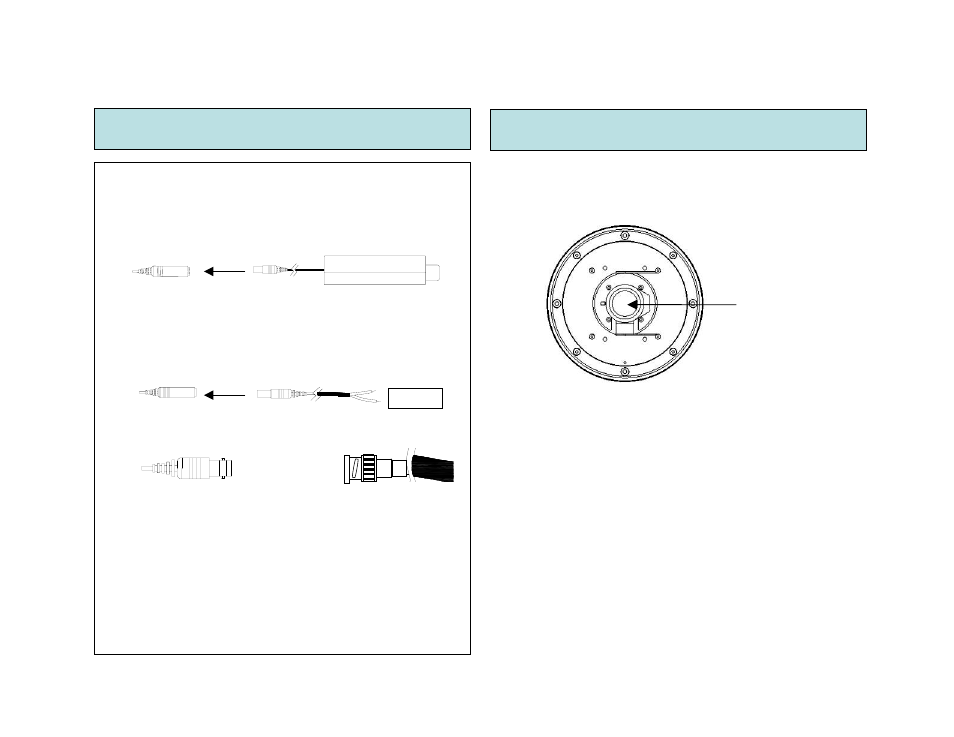

Connections:
1. When using 12-Volts DC (constant voltage 600mA)
-CONNECT POWER TO THE POWER JACK.
2. When using 24-Volts AC (40 VA)
-CONNECT ACCESSORY CABLE TO THE POWER JACK AND
CONNECT AC 24V TO THE LEAD.
3. CONNECT VIDEO CABLE
-CONNECT BNC CABLE TO THE BNC JACK.
Note: All connections can be made directly to the PCB if desired
connect
C E N TE R : ( + )
P O W E R IN P U T: R E D
AC 24V
connect
CENTER:(+)
POWER INPUT:RED
YELLOW:VIDEO OUT
1. Structure
(1) DC AUTO-IRIS LENS
Adjust between TÅÆW (TELE ÅÆ WIDE) to set the angle (focal
length)
Set the focus by adjusting 쏒N
NOTE: BOTH OF THE ABOVE ADJUSTMENTS GET LOCKED
INTO POSITION THROUGH THE USE OF "LOCKING HANDLES".
DC Auto lris
4~9m or 5~50mm
5 6
