Guide to Parts and
Controls

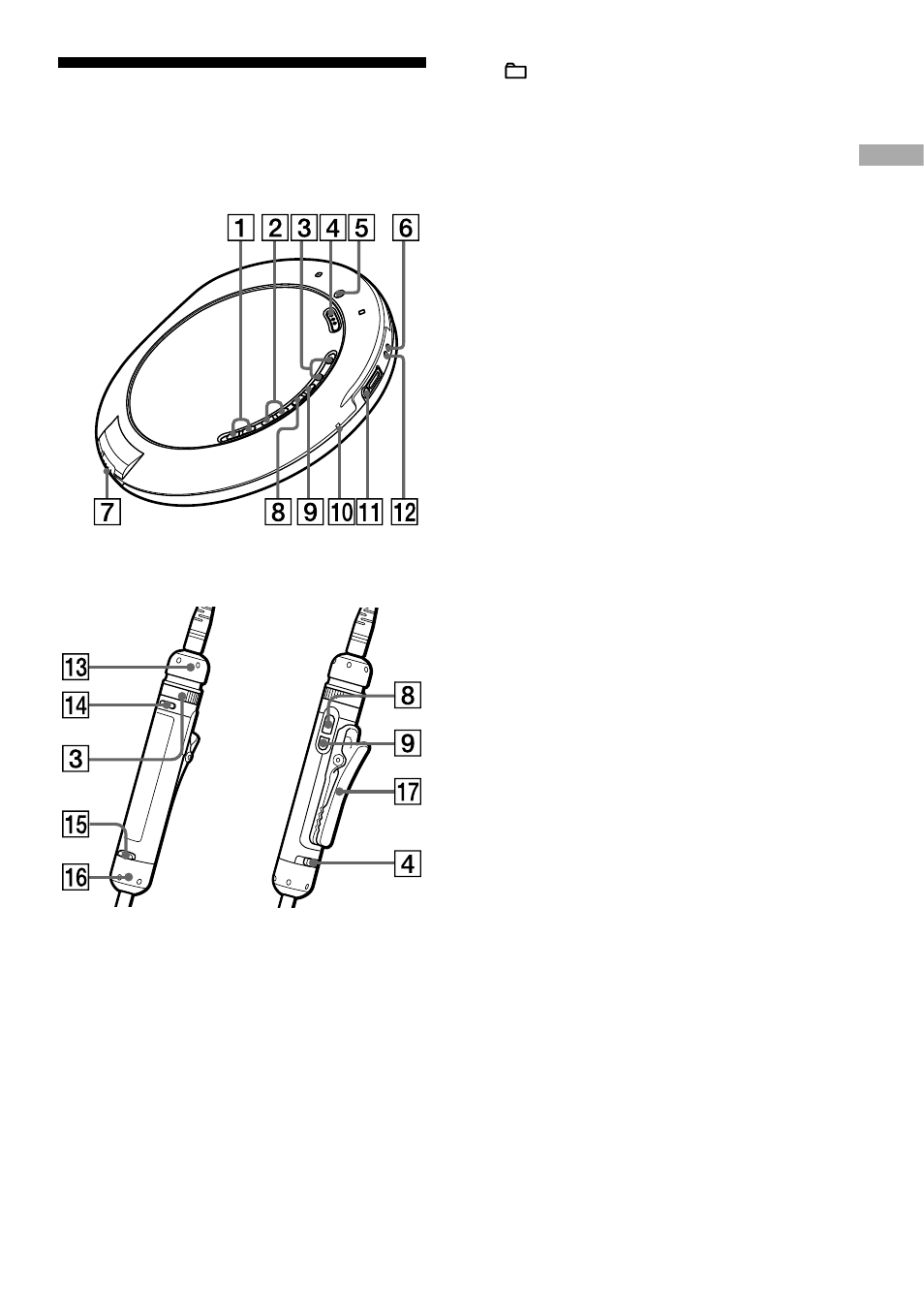

CD player (rear)
Remote
 (group) +/– buttons ( page 16)
  /  buttons ( page 16)
 CD Player:
VOL (Volume) +*/– buttons ( page 15)
Remote:
VOL (Volume) +/– control
( page 15, 17, 22, 23)
 HOLD switch ( page 17)

Screw hole for the external battery case
( page 12, 13)

EXT BATT jack ( page 12, 13)
 OPEN switch ( page 11, 15)
  (play/pause)* button ( page 15-17,
19, 21-23)
 CD Player:
 (stop)/CHG button ( page 11, 16)
Remote:
 (stop) button ( page 16, 23, 24, 26)
 OPR (Operation) lamp ( page 11, 12,
15, 17)
  (headphones)/LINE OUT jack ( page
15, 29)

DC IN 3V jack ( page 11, 14)
 Operation dial ( page 16, 17, 21-23, 25)

SEARCH button ( page 17)
 Function button ( page 18, 19, 22, 23,
25)
 Function dial ( page 18, 19, 22, 23, 25)

Clip ( page 8)
* This button has a tactile dot.
