Colour monitor 463V FA
A26361-K864-Z100-1-5E19 English - 21

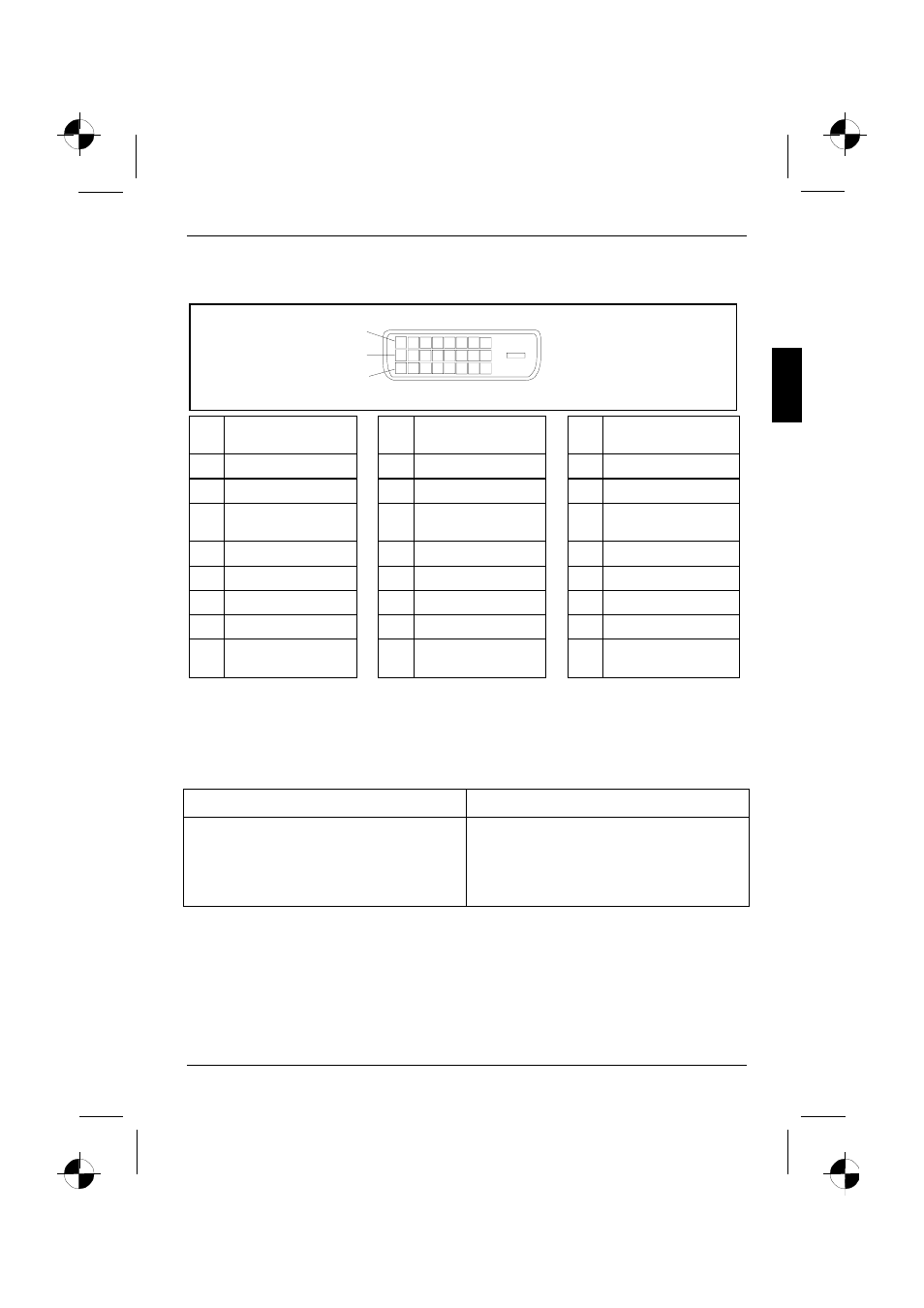

Monitor port DVI-D
1
9
17
Styl
us
Meaning Styl
us
Meaning Styl
us
Meaning
1 TMDS Data2- 9 TMDS Data1- 17 TMDS Data0-
2 TMDS Data2+ 10 TMDS Data1+ 18 TMDS Data0+
3 TMDS Data 2/4
Shield 11 TMDS Data 1/3
Shield 19 TMDS Data 0/5 Shield
4 not connected 12 not connected 20 not connected
5 not connected 13 not connected 21 not connected
6 DDC Clock 14 +5V Power 22 TMDS Clock Shield
7 DDC Data 15 Ground 23 TMDS Clock-
8 Analogue Vertical
Sync 16 Hot Plug Detect 24 TMDS Clock+
Trouble shooting
Should an error occur, first check the following points. If the distortion is still not eliminated, the
monitor should, if possible, be checked on another computer and/or with another data cable.
If you are unable to solve the problem, please inform our Help Desk.
Having this problem? Check the following points:
No display (power indicator does not light) Ê Check whether the monitor is switched on.
Ê Check whether the power cable on the
monitor is connected correctly.
Ê Check whether the computer is switched
on.
