One-drive only. Use this configuration if there are no other drives
attached to the hard disc controller.
Master with slave present. Use this configuration if the drive is
the first of two drives in your system. The master drive is Drive 0
in the System Setup record.
Slave. Use this configuration if the drive is the second drive in the
system. The slave is Drive 1 in the System Setup record.
Options jumper block
pin 1
pin 1
Standard
power connector
1 2 3 4
Circuit
board
Interface
connector
+5V
+5V return
+12V return
+12V

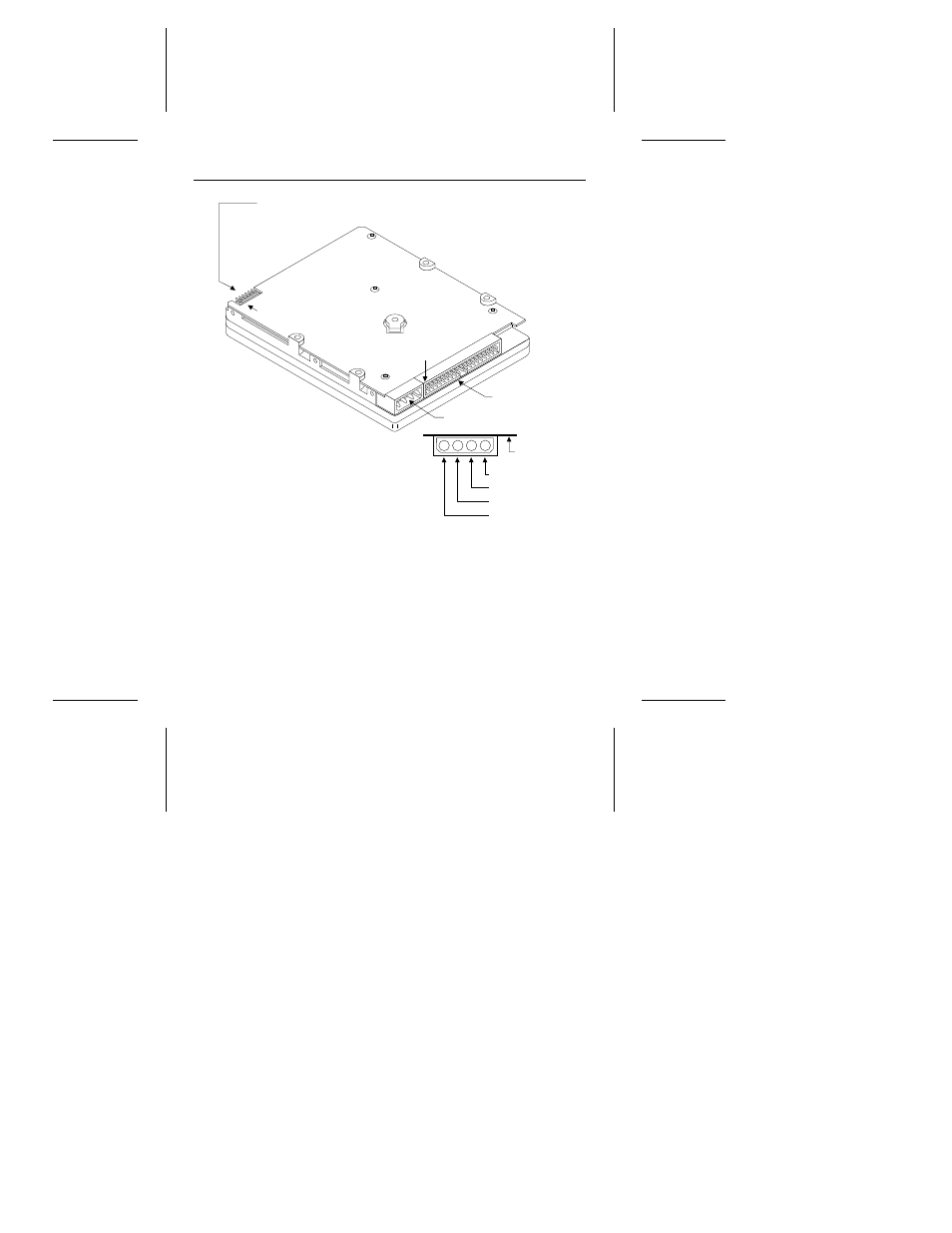

Figure 1. Drive connectors
6
Medalist SL Family Installation Guide, November 1995
