Cables
This section describes how to set up and use the cables. The cables are available with a variety of connection
capabilities.
The following communication/charge cables are available:
• Serial (RS232) Charge cable (9-pin D female with power input receptacle)
• USB Client Charge cable (standard-A connector and a barrel receptacle for power)
• Auto charge cable
• DEX cable
• Modem inverter cable.
The following printer cables are available directly from the printer manufacturer:
• O’Neil Printer cable
• Zebra Printer cable.

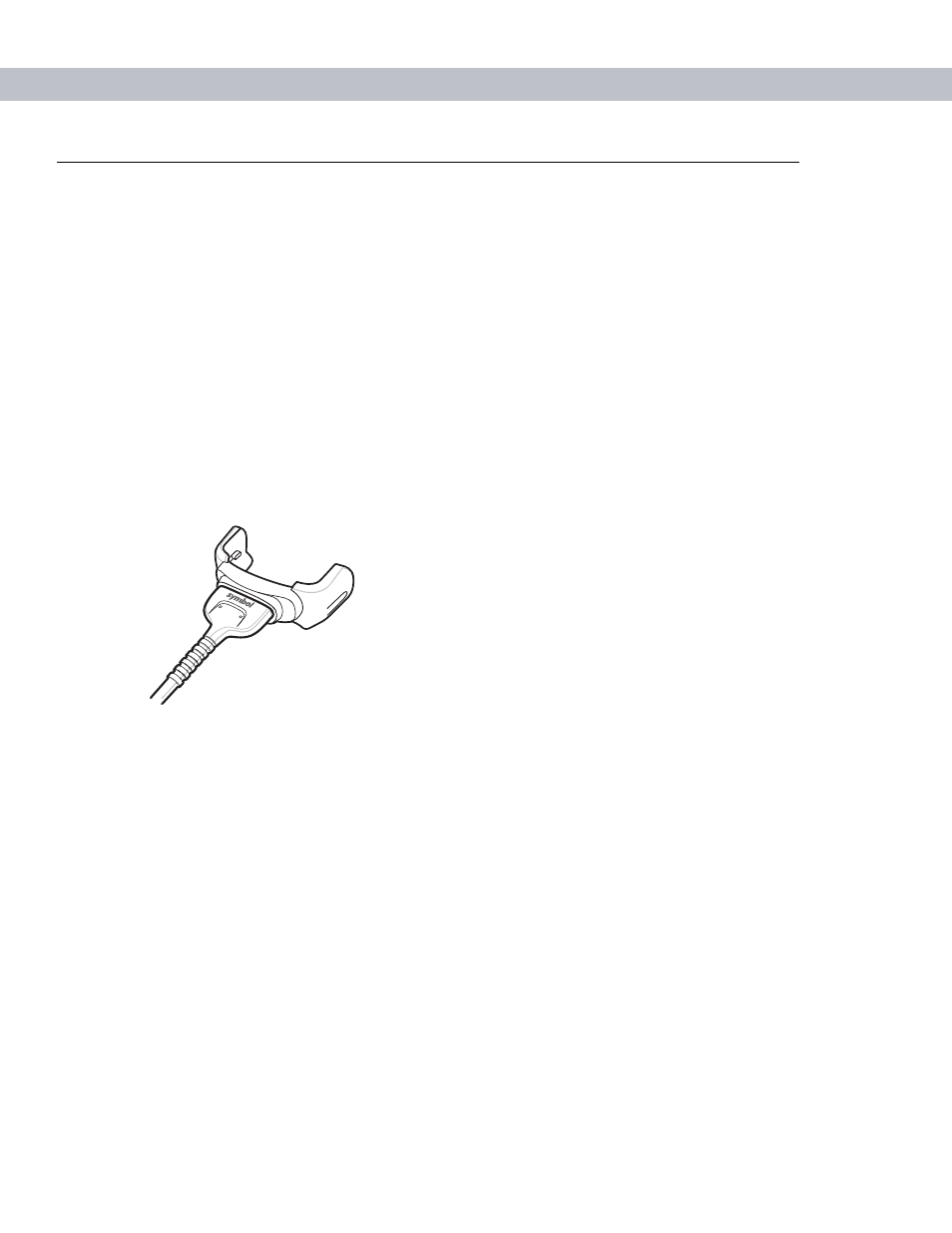

Figure 5-18 Cables
Communication/charge cables:
• Provide the EDA with operating and charging power when used with the Symbol approved power supply.
• Synchronize information between the EDA and a host computer. With customized or third party software,
it can also synchronize the EDA with corporate databases.
• Provide serial connection through the serial pass-through port for communication with a serial device,
such as a host computer. For communication setup procedures, refer to the MC70 Integrator Guide.
• Provide USB connection through the USB pass-through port for communication with a USB device, such
as a host computer. For communication setup procedures, refer to the MC70 Integrator Guide.
Dedicated printer cables provide communication with a printer.
