9 GB
Plug type B
Plug type C
Note
Keep the antennas away from the speaker cords.
3 (For European and Russian models)
Connect the t INPUT jack of your TV
to the T LINE-TV jack with the SCART
cord (not supplied).
When you connect using the SCART cord,
check that the TV conforms to RGB signals.
If the TV conforms to RGB signals, change
the input mode of the TV to RGB signals.
Refer to the operating instructions supplied
with the TV to be connected.
(For other models)
Connect the video input jack of your TV
to the VIDEO OUT jack with the video
cable (supplied)*.
* except for European and Russian models
When using a TV
Turn on the TV and select the video input so that you
can view the pictures from this system.
When connecting a video deck
Connect the TV and the video deck using video and
audio cords (not supplied) as shown below.
If you connect a video deck between this system and the
TV, you may experience video leakage when watching
the video signal from this system. Do not connect a
video deck between this system and the TV.
Note
Do not place the TV on this system.
4 For models with a voltage selector, set
the VOLTAGE SELECTOR to the local
power line voltage.
Depending on the model, the VOLTAGE
SELECTOR may differ.

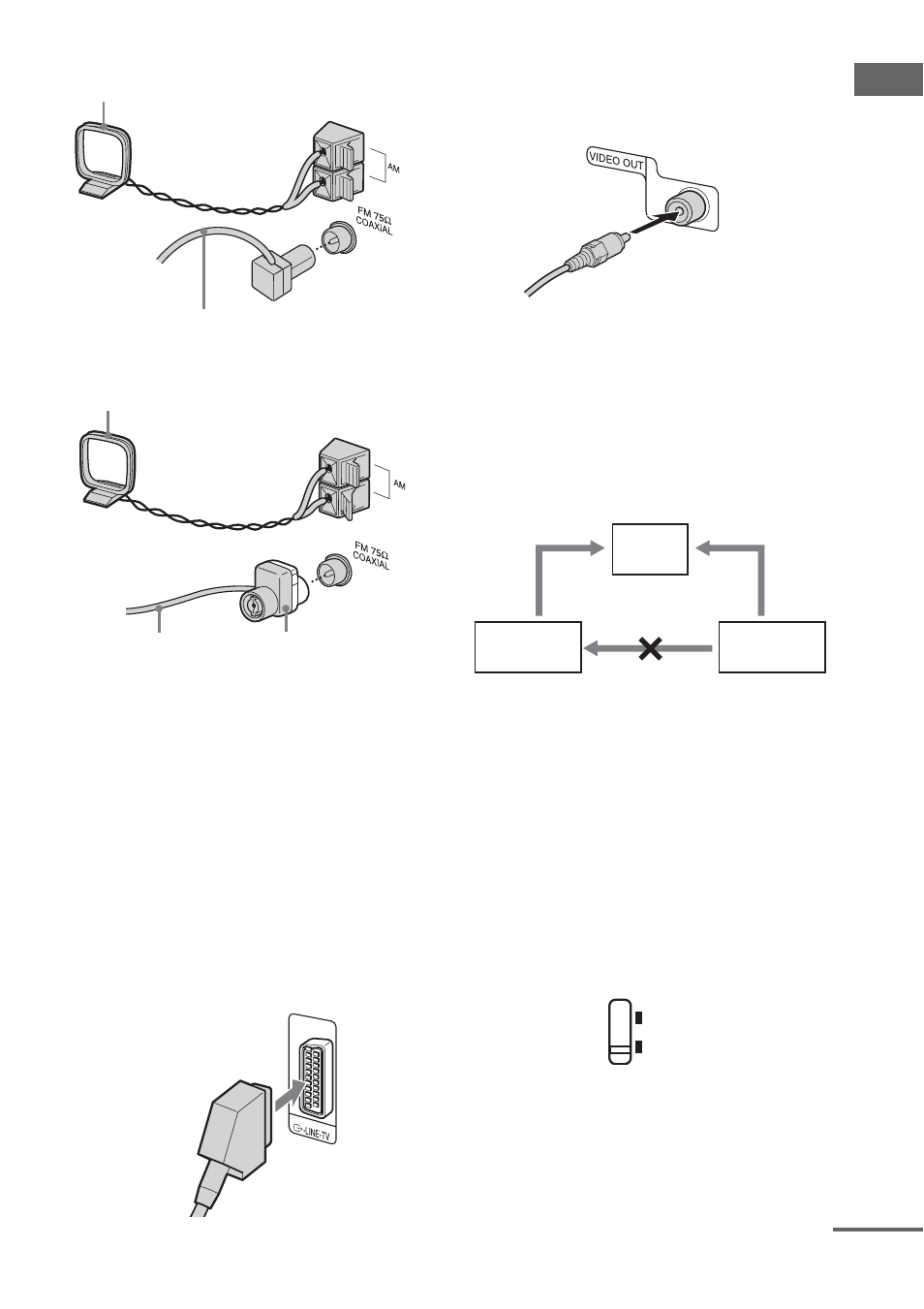

Extend the FM lead antenna horizontally
AM loop antenna
Extend the FM lead
antenna horizontally
AM loop antenna
North American model:
Connect white side.
Other models:
Connect brown side.
TV
Video deck System
Do not connect
directly.
110–120V
220–240V
continued
