Wall Bracket Assembly

Note

There are two hinges(left and right). Use the correct one.

1. Insert and tighten the Captive Screw in the direction of the arrow.

When done, mount the wall bracket on the wall.

There are two hinges(left and right). Use the correct one.

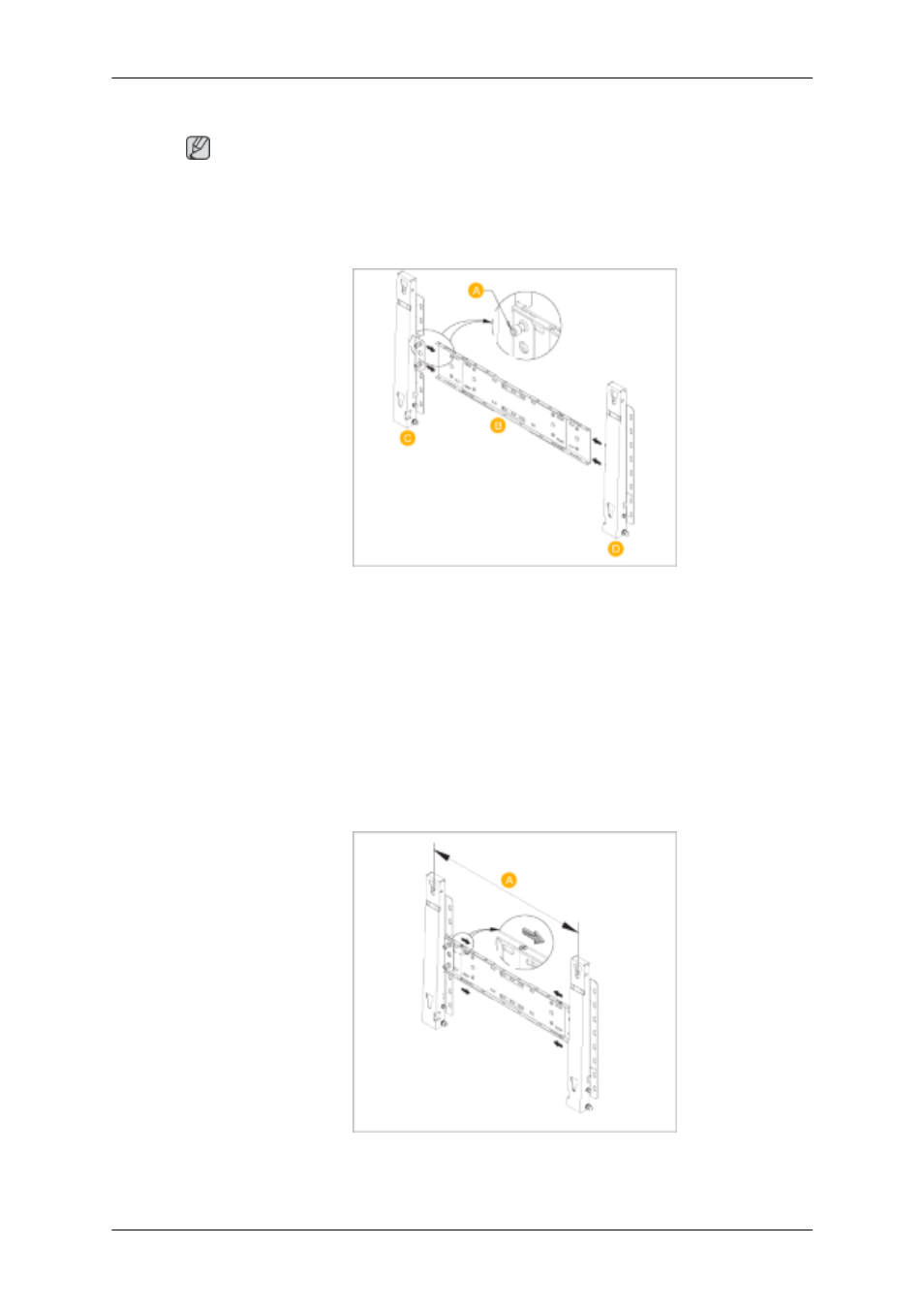

A -

Captive Screw

B -

Wall Bracket

C -

Hinge (Left)

D -

Hinge (Right)

2. Before drilling into the wall, check if the length between the two locking holes at the back

of the product is correct.

If the length is too short or long, loosen all or some of the 4screws on the wall bracket to

adjust the length.

A -

Length between the two locking holes
