Chapter 2 Controls and Indicators

This chapter shows the connectors, controls, and indicator lights of the
1600L i.LINK drive. For instructions on connecting and installing the
drive to the computer, please consult “Chapter 3, Connecting to a
Macintosh” located on page 16, or “Chapter 4, Connecting to a PC”
located on page 20.

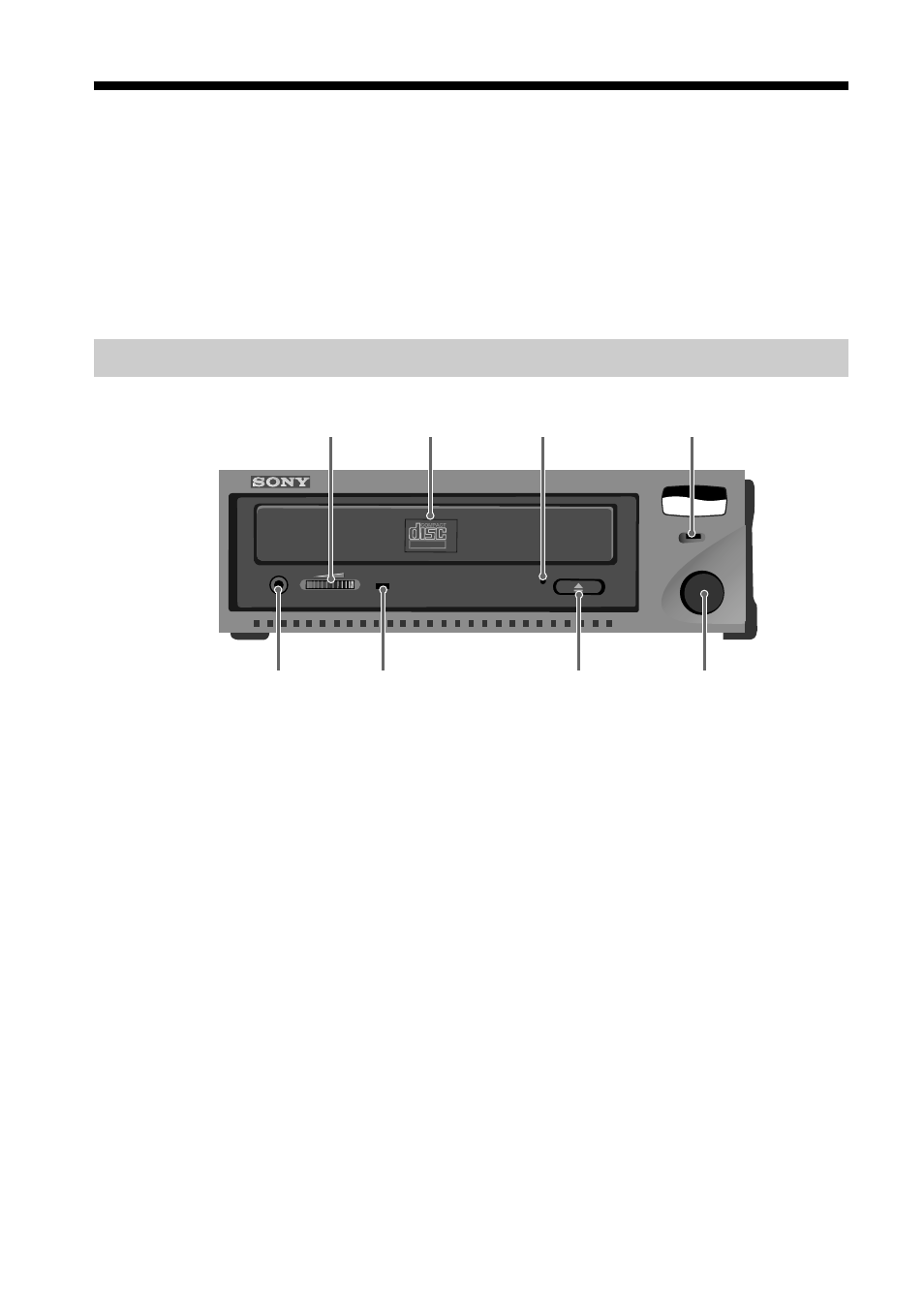

Front Panel

i.LINK

ReWritable

POWER

Busy Indicator LED

The Busy Indicator LED shows the condition of the 1600L i.LINK
drive.
• When the Busy Indicator light is on full amber, it means the drive is

seeking, playing audio, or reading.

• When the Busy Indicator light is flashing amber, it means the drive is

recording a disc, or erasing a CD-RW disc.

Insert/Eject Button

Pressing on the eject button when the power is on will eject the CD
tray. Depending on the software being used with the 1600L i.LINK
drive, this button may not appear operational. Some of the software
provided with the 1600L i.LINK drive will lock the tray in during
certain processes, so that the eject button will not eject the tray, for
example, during a write operation.

CD Tray

Volume Control

Emergency
Eject Hole

Power On LED

Busy Indicator

Headphone Jack

Load/Eject
Button

Power On/Off
Button
