E-15
Setup & Connections
Connecting the Projector
To a DTV decoder or DVD player

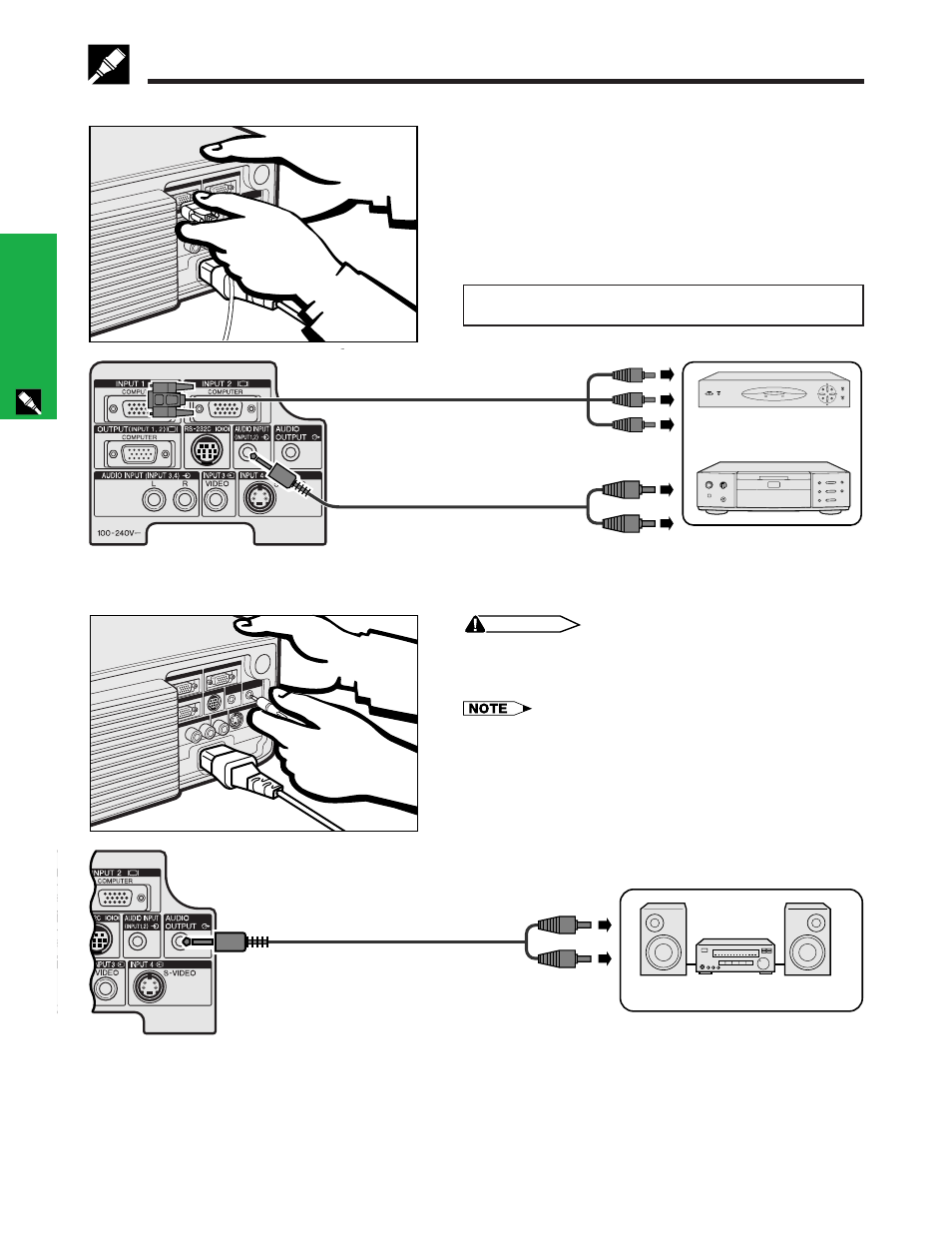

1 Connect one end of the 3RCA to 15 pin D-sub cable to the
INPUT 1 or 2 port on the projector.
2 Connect the other end to the corresponding terminals on the
video source.
3 To use the built-in audio system, connect one end of the audio
cable (commercially available) to AUDIO INPUT terminal for
INPUT 1, 2 on the projector.
Connect the other end to the Audio output terminal on the
video source.
Select “Computer/RGB” or “Component” for “Signal Type” on
the GUI menu, depending on the video source.
3RCA to 15 pin D-sub cable (sold separately)
To audio output terminals
DTV decoder
or
DVD player
2 To video input terminals
Audio cable (commercially available)
Connecting an amplifier and other audio components
Amplifier
Audio cable (commercially available)
To audio input terminals
CAUTION
• Always turn off the projector while connecting to audio
components, in order to protect both the projector and the
components being connected.
• By using external audio components, the volume can be
amplified for better sound.
• The AUDIO OUTPUT terminal allows you to output audio to audio
components from the selected AUDIO INPUT terminal for INPUT
1, 2 or AUDIO INPUT terminals for INPUT 3, 4 connected to
audiovisual equipment.
