BM-575/577.E.3-800-079-2X.U/CA
DICT/
BATT
DICT/
BATT
BP-43
DC IN 3V
Light

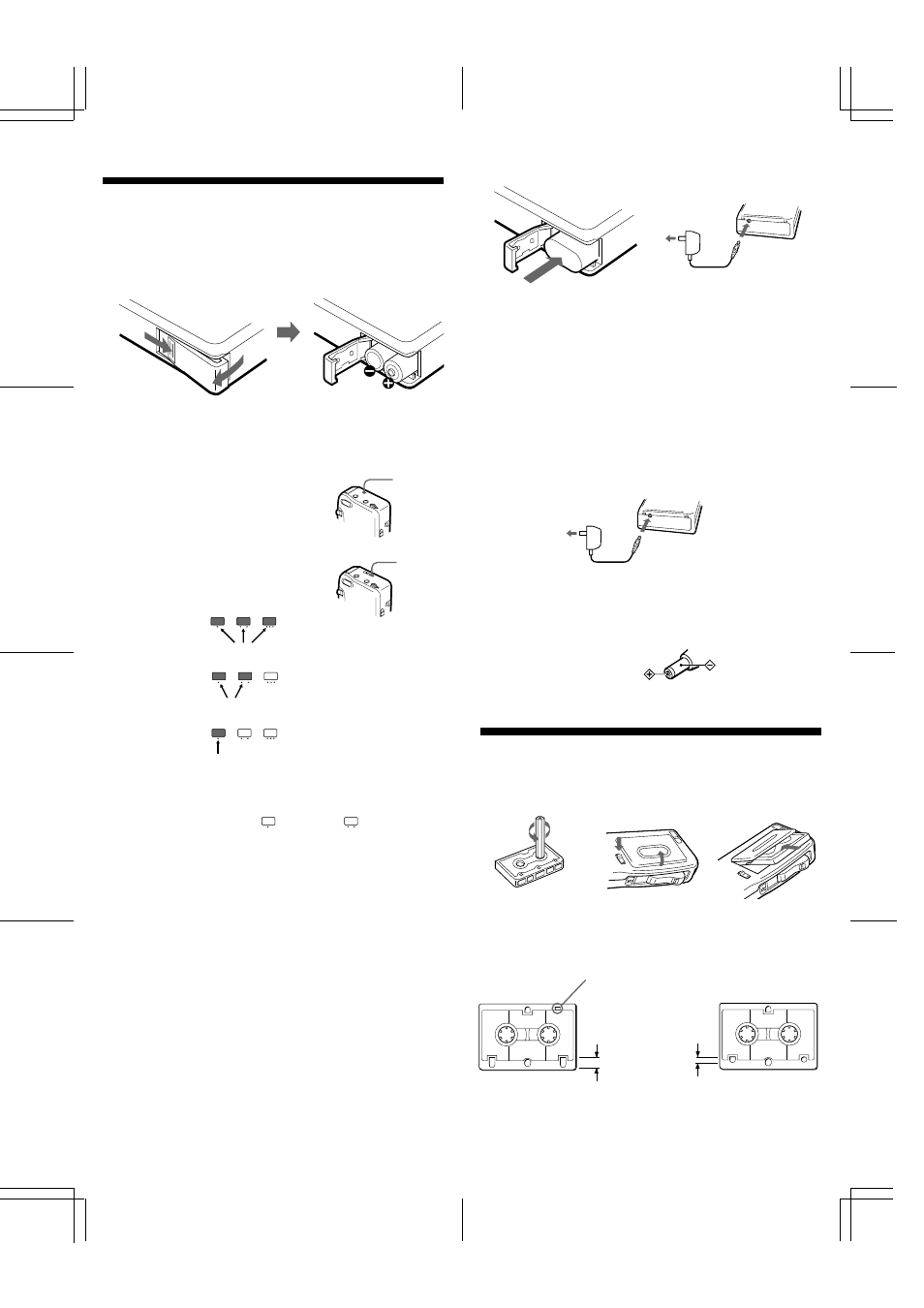

z Getting Started
Preparing a Power Source
Choose one of the following power sources
Dry Batteries
Make sure that nothing is connected to the DC IN 3V jack.
1 Open the battery compartment lid.
2 Insert two size AAA (R03) batteries.
When to replace the batteries
For BM-575:
Replace the batteries with new
ones when the DICT/BATT lamp
dims.
For BM-577:
Replace the batteries with new ones
when the DICT/BATT lamp of
the BATT lamps dims.
When batteries
are new
When batteries
have been used
for a while
When batteries
become weak
Notes on the DICT/BATT lamp
• BM-577 only: In some cases when the unit is used with rechargeable
batteries, only the DICT/BATT ( ) and BATT ( ) lamps will light
even though the batteries have been fully charged.
• After the batteries have been used for a while, the DICT/BATT lamp may
flicker with the playback sound when you turn up the volume; however,
this does not mean that you need to change the batteries.
• The unit will play back normally for a while even after the DICT/BATT
lamp dims. However, replace the batteries as soon as you can. If you do
not, subsequent recording will not be done correctly.
Notes on batteries
• Do not charge a dry battery.
• Do not use a new battery with an old one.
• Do not use different types of batteries.
• When you do not use the unit for a long time, remove the batteries to
avoid any damage caused by battery leakage and subsequent corrosion.
• Dry batteries will not be expended when another power source is
connected.
DC IN 3V
Rechargeable Battery
Charging the battery with the unit (BM-577 only)
1 Insert the BP-43 rechargeable battery (not supplied) into the
battery compartment with the nameplate side down.
2 Set the unit to stop mode, and connect the AC-E30HG AC
power adaptor (not supplied) to the DC IN 3V jack and to the
wall outlet.
3 Unplug the AC power adaptor from the unit and the wall outlet
after about five hours.
Battery life
You can operate the unit for approx. 1.5 hours with a fully charged
battery.
House Current
Use the AC-E30HG AC power adaptor (not supplied). Connect the
adaptor to the DC IN 3V jack and to a wall outlet. Do not use any
other AC power adaptor.
Inserting a Cassette
Before inserting the cassette, take up any slack in the tape with a
thick pencil.
Use only standard Microcassettes with this unit.
Non-standard microcassettes cannot be used because their "L"
dimension (see illustration) is different.
1
2
R03 (size AAA) batteries
Light
Lights
Polarity of the plug
EJECT
Non-standard Standard
Only standard
Microcassettes have
a small indentation
on side A.
L
About
2.5 mm
L
About
5 mm
