ENGLISH
INTRODUCTION
The Twin Pro ä Wireless System is the finest in its class. This
system will give you excellent performance for years to come.
System Contents
The Twin Pro Wireless System contains the following
components:
• One T88 dual channel wireless receiver
• Two transmitters available in one of three different combina-
tions (see System Combinations below)
• One PS20 (120 Vac) or PS20E (230 Vac) power adapter
• One plastic screwdriver for squelch adjustment
System Combinations
The Twin Pro system includes one of the following three transmit-
ter combinations:
• Two handheld microphone transmitters (includes two swivel
adapters and two anti-roll devices)
or
• Two body-pack transmitters with lavalier microphones
or
• One handheld microphone and one body-pack transmitter
(includes one swivel adapter and one anti-roll device)
DESCRIPTION

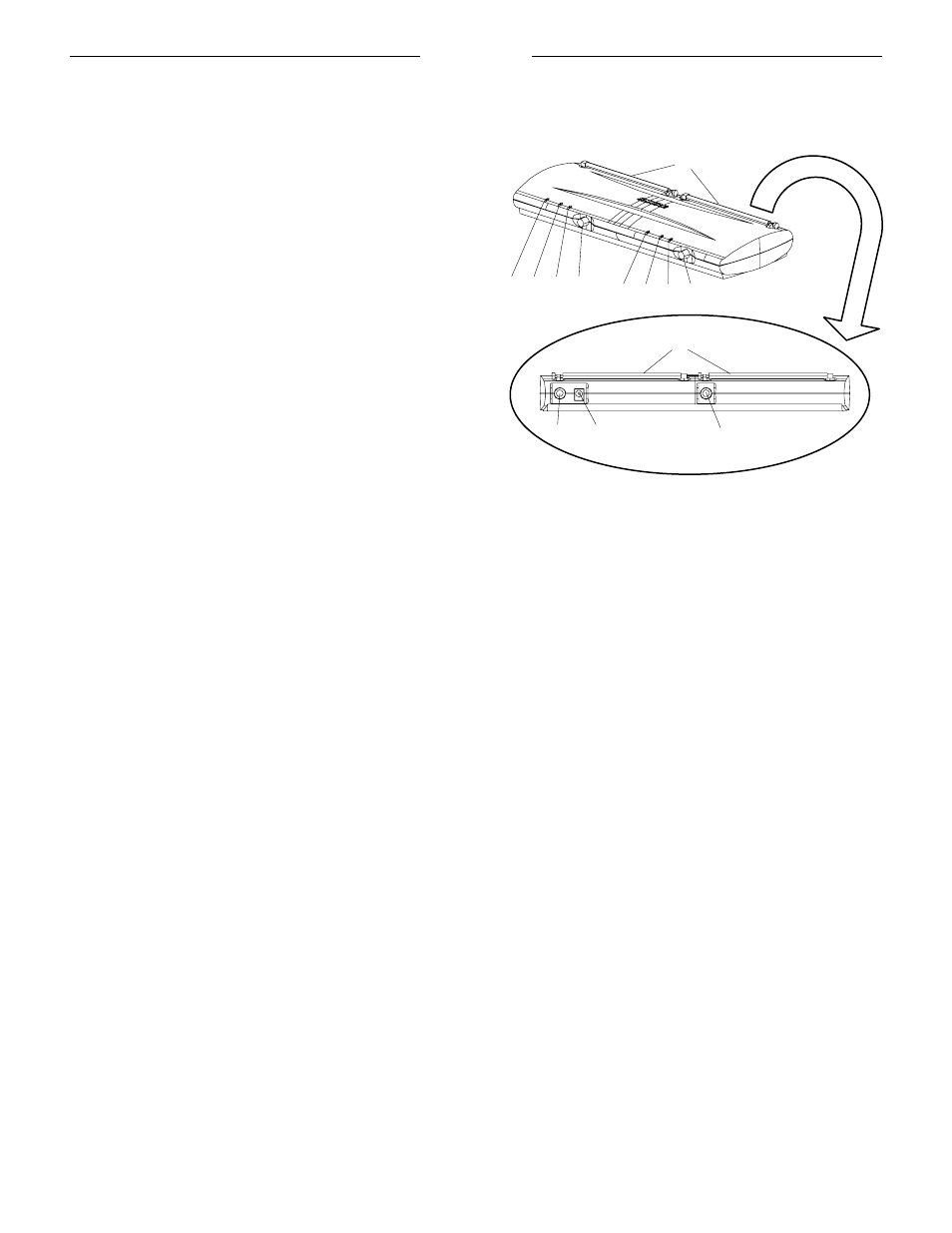

T88 Wireless Receiver (Figure 1)
FIGURE 1
1 Power Indicators.
2 RF Signal Indicators. Yellow indicates when RF (radio
frequency) signals are received from the transmitter.
3 Audio Peak Indicators. These lights flicker occasionally
in normal operation. They are ON steadily when the au-
dio input is overloaded.
4 Volume Controllers. Controls the audio output level.
5 Telescoping Antennas. Receive signals from the
transmitters. Make sure the antennas are fully extended
vertically.
6 Power Input Connector. Connects to a PS20 (120 Vac)
or PS20E (230 Vac) power adapter.
7 Independent Audio Output Connectors. There is a
separate, unbalanced 1/4 inch phone jack for each
channel.
FRONT
BACK
1 2 3 4
5
1 2 3 4
6 7
7
5
