UNPACKING THE UNIT
1. Cut the straps then lift the carton off.
2. Carefully remove all parts from carton and inspect for any damage or missing parts. If damaged
parts are found, or parts are missing, contact your dealer immediately.
3. Locate the hardware package. The hardware is separated into four steps. Remove the tools first.
Remove the hardware for each step as needed to avoid confusion. The numbers in the instructions
that are in parenthesis (#) are the item number from the assembly drawing, for reference.

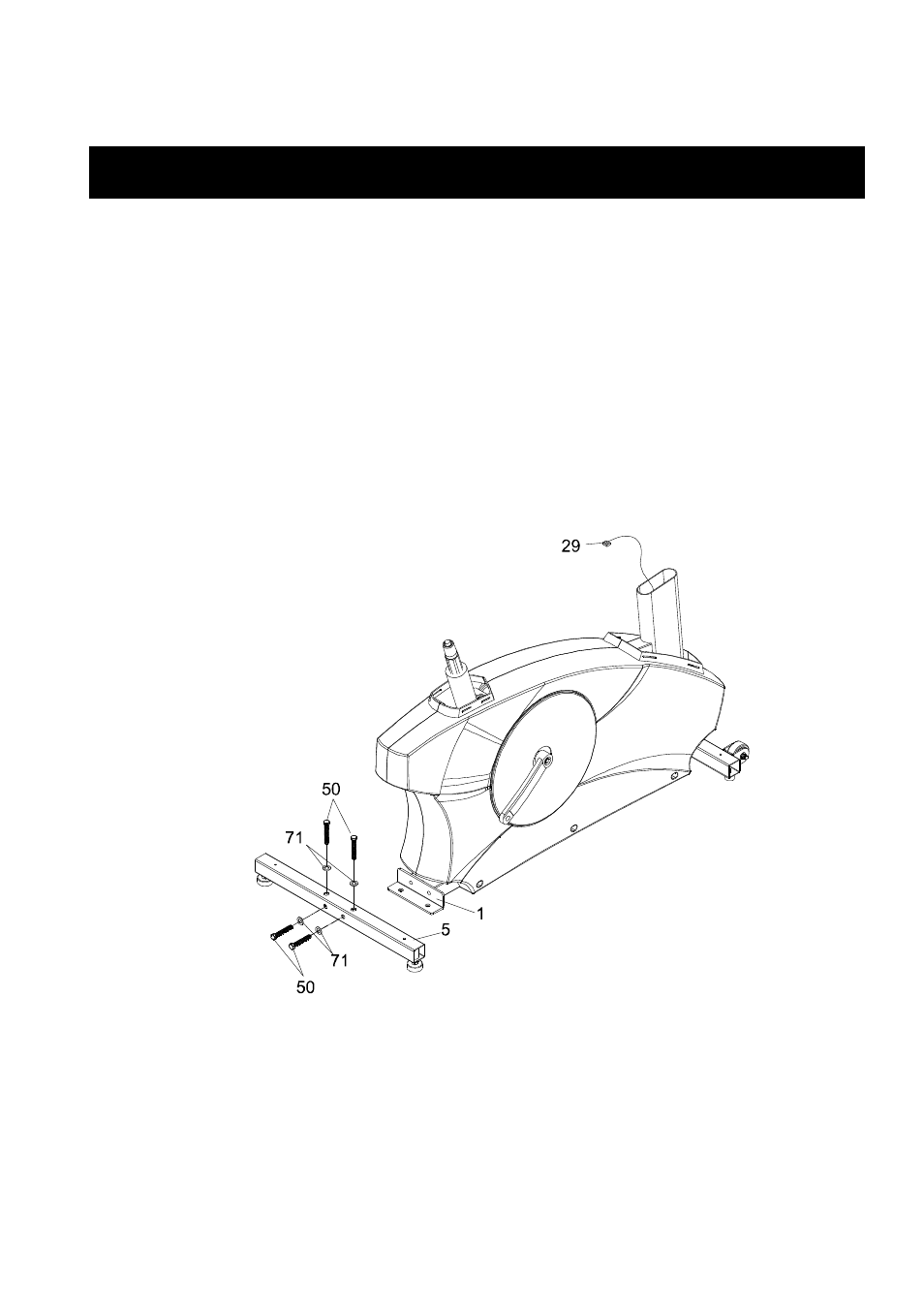

STEP 1: REAR STABILIZER ASSEMBLY
1. Install the Rear Stabilizer (5) onto the Main Frame (1) with the 4pcs of 3/8 x 2-1/4 Hex Head
Bolts (50) and 4pcs of 3/8 x 25 x 2T Flat Washers (71) by using the 12/14mm Wrench (100).
