XU875 & XR895
10

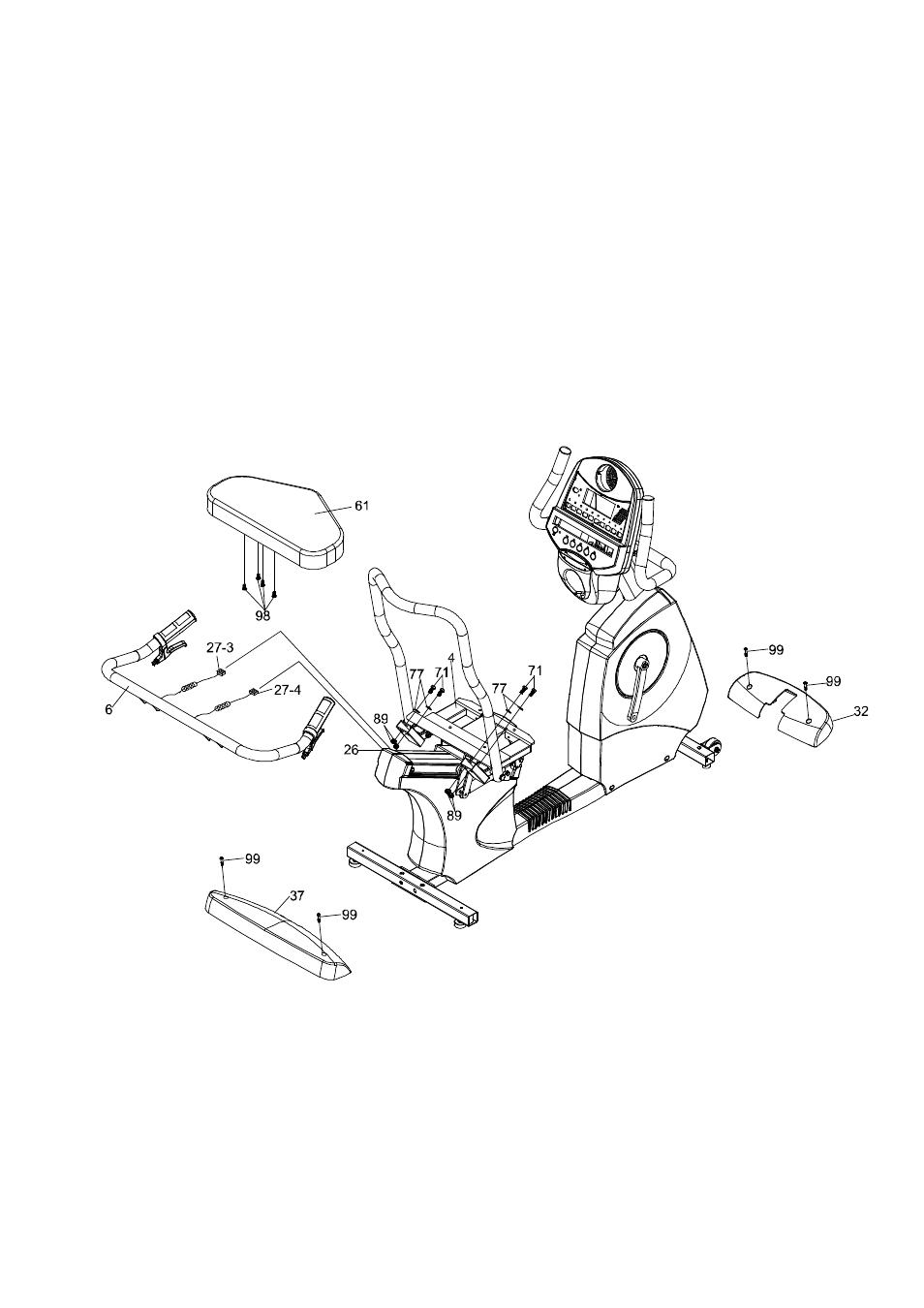

STEP 3: SEAT & HANDLE BAR ASSEMBLY
1. Install the Seat Cushion (61) on the Seat Carriage (4) with the 4pcs of M6x15mm Phillips Head
Screws (98).
2. Install the Handle Bar (6) onto the Seat Carriage (4) with the 4pcs of 3/8 x 1-3/4 Hex Head
Bolts (71), 4pcs of 3/8 x 19x1.5T Flat Washers (77), and 4pcs of 3/8 x 7T Nyloc Nuts (89) by
using the 12/14mm Wrench (112).
3. Then plug the Hand pulse Cables (27~3)(27~4) into the sockets located on the left side rear
cover (26), just under the seat. It does not matter which connector plugs into which socket.
4. Install the Front Stabilizer Cover (32) and the Rear Stabilizer Cover (37) on the Main Frame
with the 4pcs of M5x12mm Phillips Head Screws (99).
