* MHC-RG60 only
Surround speaker (Right) *
Front speaker (Right)
FM antenna
AM loop antenna
Surround speaker (Left) *
Front speaker (Left)
1 Connect the front speakers.
Connect the speaker cords to the SPEAKER
jacks as shown below.
R
+ L
+
—
Insert only the stripped portion.
Red/Solid
(
3 )
Black/Stripe ( # )
2 Connect the surround speakers.
(MHC-RG60 only)
Connect the speaker cords from the rear
surround speakers to the appropriate
SURROUND SPK OUT PUT jacks as
shown below.
R
+ L
+
–
Getting Started

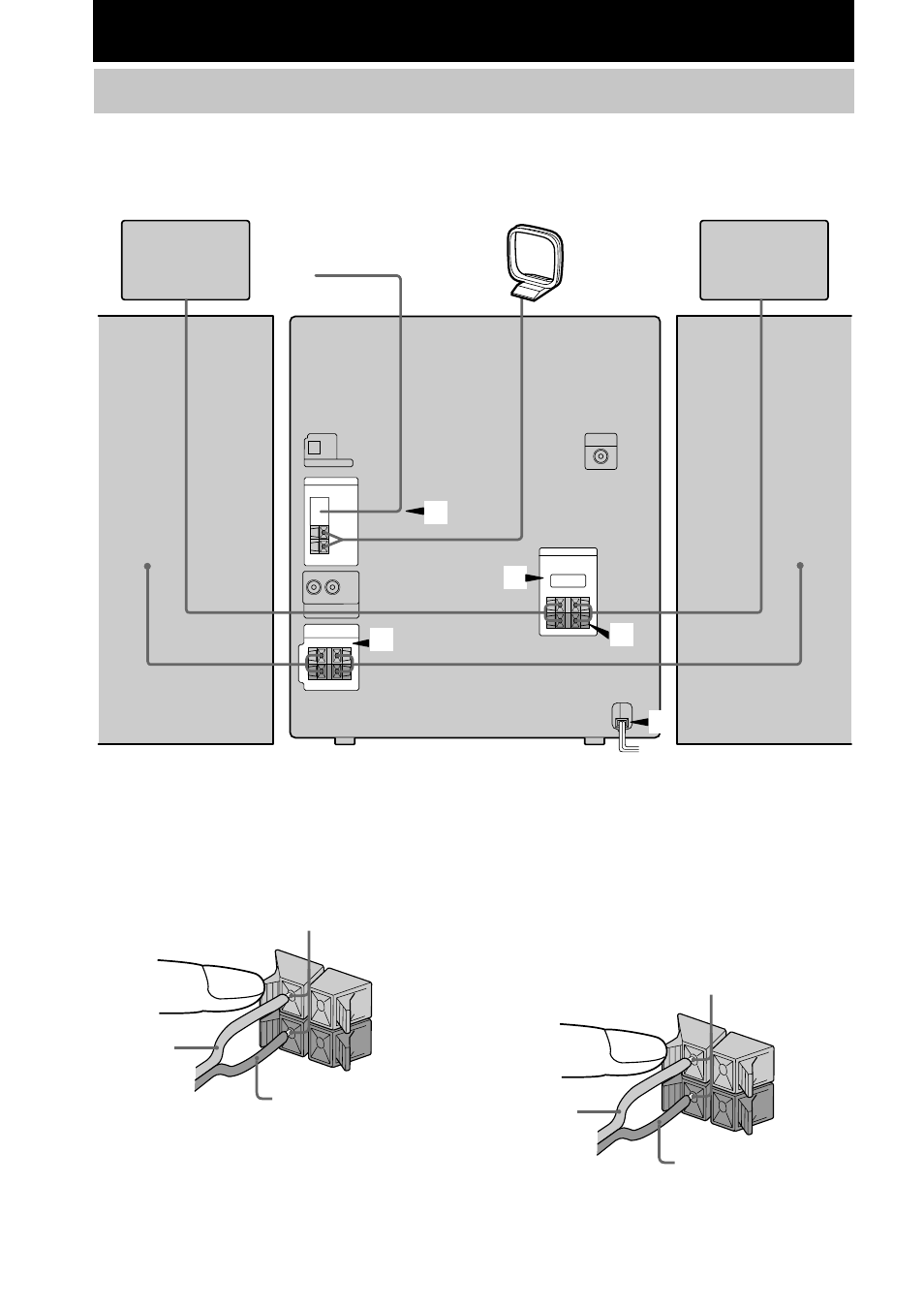

Hooking up the system
Perform the following procedure 1 to 5 to hook up your system using the supplied cords and
accessories.
3
5
4
2
1
Insert only the stripped portion.
Red/Solid
(
3 )
Black/Stripe ( # )
